FLIR i7 Thermal Imager Camera
|
Item Number: FLIR i7
Manufacturer: FLIR
Part Number: FLIR i7
Product Options
Thermal Imager Camera Calibration Option
* Whole number only
|
|

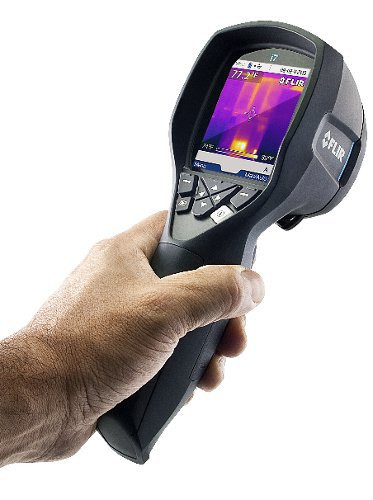

FLIR i7 Infrared Thermal Imager Camera
FLIR i7 Features:
-
Drop Proof to 2 meters (6.6 Feet)
-
Compact sized, Lightweight - 12oz
-
Thermal Sensitivity of <0.1°C @ 25°C
-
Easy-to-Use Focus Free Lens
-
Stores up to 5000 JPEG Images
-
2.8" LCD Color Display
-
Long Battery Life Lasts >5 Hours
-
Area Min/Max Spot Marker
-
Convenient Thumbnail Image Gallery
|
|
|
|
-
High Resolution IR Images - 19,600 pixels (140 x 140) Infrared resolution
- Exceeds RESNET resolution standards
-
Optimized Temperature Range -4 to 482°F (-20 to 250°C) targeting electrical,industrial, and building applications
-
± 2% Accuracy - reliable temperature measurement with thermal sensitivity of 0.1°C helps you find problems faster and easier — critical for condition monitoring of thermally sensitive targets
-
Extremely lightweight - Resulting in less user fatigue (12 ounces)
-
Easy-to-use - Pocket sized and fully automatic design makes it incredibly easy to- use even for first time users — perfect for general purpose use
-
Focus free lens - For convenient viewing
-
High Resolution LCD - 2.8" (71mm) color LCD
-
Double Molded Design - Rugged design with easy grip handle construction meets IP43 dust/splash proof standards
-
Measurement Modes - Spot (center), Area (Min/Max), and Isotherm (above/below) display measurement modes
-
Thumbnail Image Gallery - Allows quick search of stored images
-
Li-Ion Rechargeable Battery - lasts >5hrs continuous use; replaceable
-
Large Memory Storage - MicroSD card stores up to 5000 Radiometric JPEG format images. Each image can be analyzed using the included FLIR Tools PC Software
-
Includes - 512MB microSD Card, miniSD™ adapter, Li-Ion rechargeable battery with 100-240V AC adapter /charger with EU, UK, US and Australian plugs, QuickReport™ software with USB Mini-B cable, built-in manual lens shutter, hand strap, and hard case
|
|
|
|
|
FLIR ToolsPC software enables user to analyze
Temperature of all thermal pixels of any FLIR Camera
JPEG images
|
|
The new FLIR i3 thermal imager is the ideal entry level diagnostic camera. Superior to any point and shoot style IR thermometer, the redesigned FLIR i3 features a 3600 pixel resolution, large LCD and -4 to 482 °F Range with 2% accuracy.
|
The new FLIR i5 thermal imager provides a greater resolution and increased field of view (FOV) over the FLIR i-3. Resolution of the i5 is increased to 10,000 pixels and a 21° FOV, large LCD and -4 to 482 °F Range with 2% accuracy.
|
