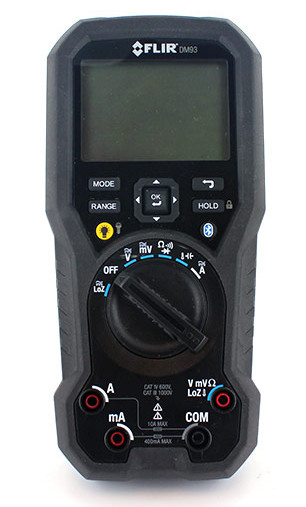

FLIR DM93 True RMS Industrial Multimeter
|
Item Number: DM93
Manufacturer: FLIR
Part Number: DM93
* Whole number only
|
|
FLIR DM93 True RMS Industrial Multimeter
The new FLIR DM93 is a world-class digital multimeter with advanced VFD filtering to help you accurately analyze non-sinusoidal waveforms and noisy signals found in VFD-controlled equipment.
Features
Accurately analyze non-sinusoidal waveforms and noisy signals in VFD motors and drive controllers.
Use the Low Impedance Input filter to eliminate ghost voltage readings in long-run applications.

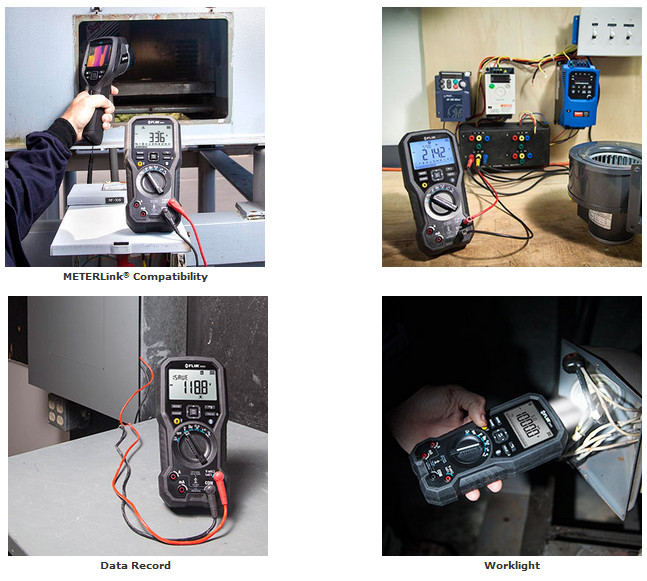

- Continuous Data Recording
Detect intermittent glitches by allowing the FLIR DM93 to collect measurement data unattended over time.
- Bright Dual-LED Worklights
Make your work safer and easier by illuminating dimly lit inspection areas.
Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR infrared cameras.
Connect to Android devices for remote diagnostics in hard-to-reach and hazardous areas. Also, upload files without the need for special cords.
Double-molded rubber case design enhances reliability on the job site and durability for the long haul.
Convenience Features
- No need to select AC or DC Mode for quick tests
- Backlight features user-configurable timeout
- Large, sharp display is easy to see
- Tool-less battery changing
- Built-in tilt stand
Applications
Technical Specifications
|
|
| |
Range |
Basic Accuracy |
| DC Voltage |
1000.0 V |
+/- 0.05% |
| AC Voltage |
1000.0 V |
+/- 0.05% |
| VFD Voltage |
1000.0 V |
+/- 0.05% |
| DC Current |
10.000 A |
+/- 0.2% |
| AC Current |
10.000 A |
+/- 1.0% |
| Resistance |
40.00 MΩ |
+/- 0.2% |
| Continuity Threshold |
30 Ω |
+/- 0.2% |
| Frequency |
100.00 kHz |
+/- 5 Digits |
| Capacitance |
40.00 mF |
+/- 0.9% |
| Temperature |
-328 to 2192°F, -200 to 1200°C |
+/- 1.0% |
| Diode Test |
2 V |
+/- 1.5% |
|
|
| Bluetooth Range Max |
32 ft (10 m) |
| Display Counts |
40,000 |
| Safety Category |
CAT IV-600V, CAT III-1000V |
| Data Recording |
20,000 Pts (125 days max) |
| Warranty |
Limited Lifetime |
| Certifications |
CE, UL, FCC |
Includes
6 AAA Batteries, User Manual/CD, CAT IV Silicon Test Leads, Type K Temperature Probe (400°F, 204°C), Magnetic Hanging Strap and Limited Lifetime Warranty
|
