Extech CMM-15R
     Process Calibrator & Multimeter

The Extech CMM-15 will be replaced by the CMM-17

    The Extech CMM-15R Process Calibrator combines the
functionality of a calibrator with a TRMS Multimeter.  It has
the ability to source DC Volts and mA in programmable or
timed steps.  It also has the ability to source frequency.  For
a limited time Windows based software is included at no
additional cost.  The CMM-15 can be used as a 1 channel
datalogger with the Windows based software package.

Features:

Calibrator Features:
• Simultaneous Source/Simulate and Measure on Large Dual Display
• Precision 0.03% Accurate Voltage and Current Calibration Source
• Constant Current Output for Loads Up to 500 ohms
• (Optional 1000 Ohms Adaptor)
• Bipolar Current (±25mA) and Voltage (±1.5V, ±15V) Outputs
• Simultaneously Source Excitation Voltage and
   Measure mA Output of 2-Wire Transmitters
• Wide Range Frequency (Square Wave) Source with
   Adjustable Amplitude, Pulse Width, and Duty Cycle (CMM-15)
• Programmable for 16 Continuous or Timed Step Outputs, or 999 Step Ramp
• Programmable 999 Step Ramp
• Windows Software Included

Multimeter Features:
• Measure DCmA, ACmA, DCV, ACV, AC+DC, Temperature, Frequency,
• Measure Duty Cycle, Pulse Width, Resistance, Continuity, and Diode
• 1µV or 1µA Resolution and 0.03% Basic DCV Accuracy (400mV-40V)
• 1ms Peak Hold for glitch capture
• Plus Data Hold, Auto Hold, Relative and Dynamic Recording

General Features:
• True RMS Measurement for Non-Linear Voltage and Current Loads
• Built-In Isolated RS-232 Interface for Data Acquisition
• Documentation with Windows Data Acquisition Software
• Large 4,000/40,000 Count Backlit LCD
• Displays Primary, Secondary, Source/Measure Ranges and Functions Selected
• Separate Input/Output Banana Jacks with Fused Protection
• Auto Power Off with Disable Function

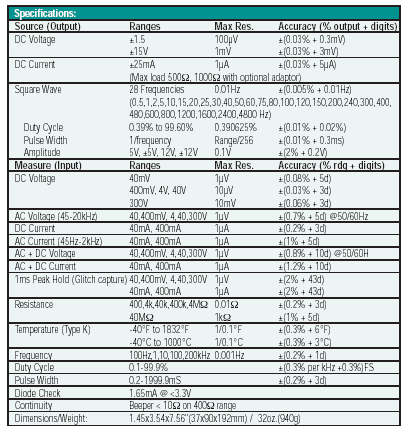

Technical Specifications:
