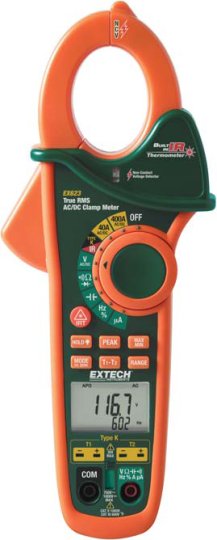

Extech EX623 400A Dual Input AC/DC Clamp Meter + NCV + IR Thermometer

Our Price: $239.99

Item Number: EX623

Manufacturer: Extech

Part Number: EX623

* denotes required field

Calibration Options*

Calibration Certificate not included

Standard Calibration Certificate (+ $65.00)

ISO 17025 Accredited Calibration Services (+ $95.00)

Quantity:

Extech EX623 400A Dual Input AC/DC Clamp Meter + NCV + IR Thermometer

This product is the winner of HKEIA 2008 Gold Award

Features:

True RMS measurements for accurate AC Voltage and Current measurements

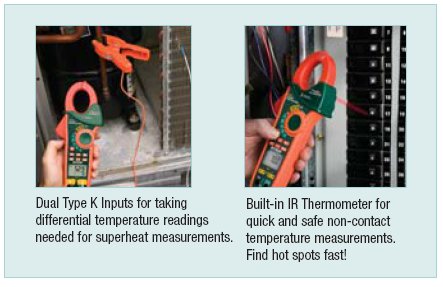

Dual type K thermocouple input with Differential Temperature function (T1, T2, T1-T2)
Built-in non-contact IR Thermometer with laser pointer for locating hot spots (up to 518°F/270°C)
Built-in non-contact Voltage detector with LED alert
DC µA multimeter function for HVAC flame rod Current measurements
Data Hold plus fast Peak Hold of current surges during motor startup
40,000 count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges
Measures motor capacitors to 40,000µF
1.25" (32mm) jaw opening for conductors up to 500MCM
Rugged double molded housing
Auto power off with audible alert and disable function
Autoranging with manual override
8 to 1 distance to target ratio

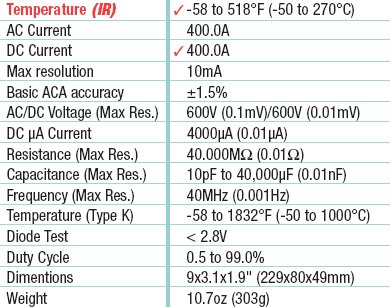

Specifications:

Includes:
