Extech 381395 5MHz Dual Channel Datalogging MultiScope

Extech 381395 5MHz Dual Channel Datalogging MultiScope

Features:

• Easy to use menu driven operation
• Internal or External Triggering
• Auto or Manual setup for horizontal and vertical scaling
• Single shot mode
• Window freeze locks waveform in the display
• Roll Mode for slow repetition waveforms
• Store and Recall up to 16 waveforms and setups
• Sampling Time: 25MS/s Dual Channel; 50MS/s Single Channel
• 132 x 128 Pixel Super-Twist two level backlit display
• Data Hold and Low Battery indication
• MultiMeter functions include AC/DC Voltage, Resistance, Continuity, Frequency, RPM, Pulse Width, % Duty Cycle, Max/Min/Avg, Relative, and Compare (Go-NoGo)
• USB Interface and software for transferring waveforms and data

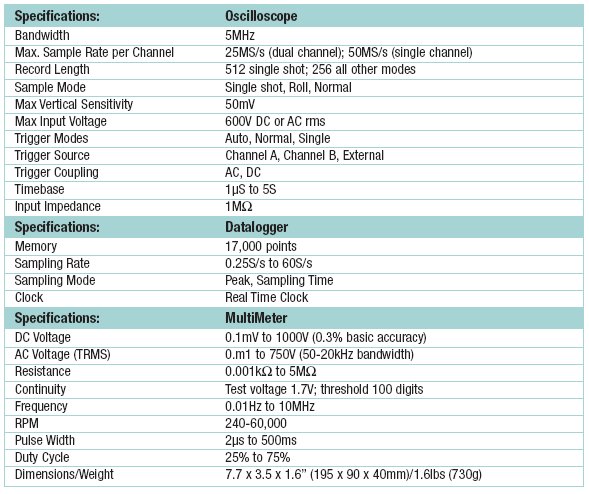

Specifications:
