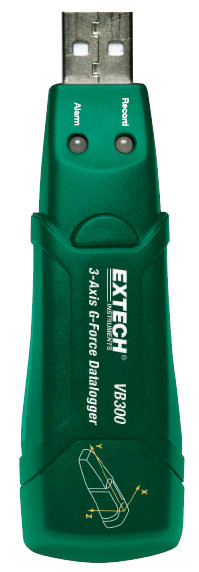

Extech VB300 3-Axis G-Force USB Datalogger

Extech VB300 3-Axis G-Force USB Datalogger
Records and times 3-axis shock and peaks

Features

• Built-in 3-axis accelerometers record the time when shock occurs
• Real time FFT Frequency and Time-Domain Vibration Analysis
• Record storage, transport or operational data over time
• USB interface for easy set-up and data download
• Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
• Selectable X-, Y-, Z-axis or any combination (via software)
• Selectable data sampling rate: 50ms to 24 hours
• Manual and Programmable start modes
• User-programmable alarm threshold
• Long battery life
• Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows® compatible analysis software

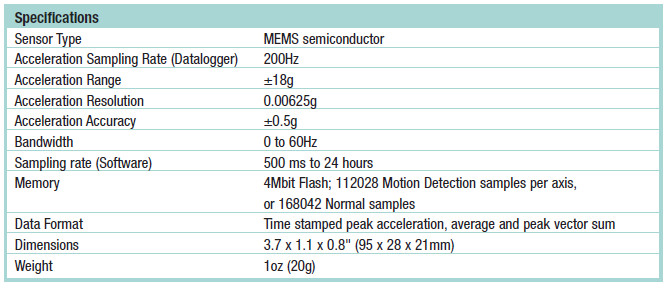

Technical Specifications

Extech VB300 Data Sheet
