Extech TK430-IR Industrial Troubleshooting Kit

TK430-IR Industrial Troubleshooting Kit

Features

• EX430 Autoranging True RMS MultiMeter with 11 functions including Capacitance, Frequency and Temperature
• 42510 Mini IR Thermometer offers non-contact temperature measruements on surfaces difficult or unsafe to reach (-58 to 1000°F/-50 to 538°C)
• Model MA200 400A Clamp Meter with basic AC Current and 1mA resolution
• Model 40130 Non-Contact Voltage Detector detects AC Voltage from 100VAC to 600VAC without touching the source
• Set of CAT III-1000V test leads
• Type K thermocouple bead probe and Type K to Banana Input Adaptor

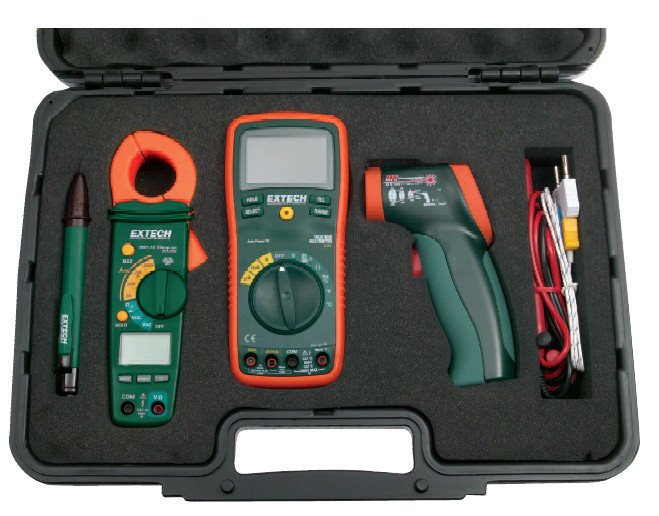

• Supplied in an attractive storage case that provides protection and organization for the meters whenever they are needed
• Dimensions: 9.5x6.8x2.8" (241x173x71mm)

Features of EX430 True RMS Autoranging Digital Multimeter

• Low current capability, measure down to 0.1uA
• Audible and visual input alerts
• Easy to read 1 inch digits on backlit display
• RELATIVE function for establishing a base line reference
• Complete with CAT III test leads, multi-position tilt stand and velcro strip for hanging, protective holster with test lead holder, bead wire temperature probe (-58 to 482 F/-50 to 250 C) and 9V battery

Features of MA200 400A Clamp Meter

• Compact size allows measurements in tight locations
• High accuracy for Current measurements Autoranging with Auto Power Off
• 0.9" (23mm) jaw size accommodates conductors up to 300MCM
• Continuity beeper and Diode test
• Data Hold freezes current reading on display
• Overload protection for all ranges
• Overrange and low battery indicators
• Complete with test leads, case, and two AAA batteries
• 400A AC Current
• 2000 count LCD display
• Max Hold

Features of 42510 Mini InfraRed Thermometer

• Compact thermometer with wide temperature range from -58 to 1000 F (-50 to 538 C)
• Audible and visible overrange indicators
• Built-in laser pointer identifies target area
• 8:1 distance to target ratio
• Backlighting illuminates display for taking measurements at night or in areas with low background light levels
• High resolution of 0.1° up to 199.9°
• Automatic Data Hold when trigger released
• Fixed 0.95 emissivity covers 90% of surface applications
• Auto power off
• Complete with 9V battery

Features of 40130 Non-Contact Voltage Meter

• Non-Contact Detection of AC Voltage from 100VAC to 600VAC

• For use on 50/60Hz circuits
• Tip fits into outlets or against wire insulation
• Flashing red LED light and push button
• ON/OFF Audible beeper indicator
• Locate breaks in power cables
• Convenient size with pocket clip
• Complete with two AAA batteries
• NEW push button feature to turn ON or OFF the audible beeper.

Specifications for EX430

Specifications for MA200

Specifications for 42510
