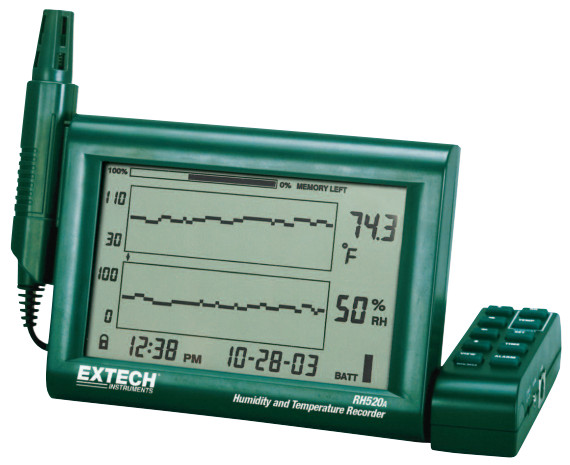

Extech RH520A Humidity and Temperature Chart Recorder

Extech RH520A Humidity and Temperature Chart Recorder


Features

• Simultaneous numerical and graphical display of Humidity and Temperature readings, plus Time and Date
• Measures Humidity (10 to 95%RH) and Temperature (-20.0°F to 140.0°F) plus included LabVIEW™-based software calculates and graphs Dew Point, Wet Bulb, and GPP (grains per pound)
• Large dual graphical LCD displays with adjustable vertical and horizontal TAC resolution
• Internal memory records up to 49,000 data points and can be transferred to a PC via RS-232 serial port for further data analysis
• LCD indicates percentage of memory remaining
• Replaceable probe does not require recalibration
• Detachable probe extends up to 1 meter for measurements in closed environments
• Audible and visual alarm with Hi/Low set-points
• Output socket used with optional external alarm module
• Scroll the cursor to display selected data recorded

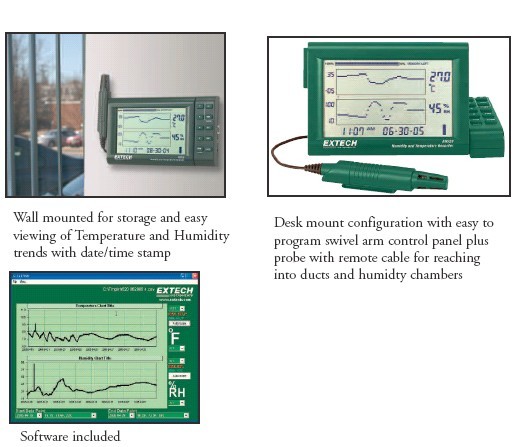

• Desk or wall mount
• Complete with built-in stand, detachable probe with 3ft (1m) cable, RS232 cable, RS-232 To USB Adapter, LabView-based PC software, 100-240VAC 50/60Hz adapter, and 3 AA batteries

Applications

• Monitor and record laboratory or clean room temperature and humidity history
• Record process conditions
• Generate warning when conditions are outside required limits
• Monitor controlled environment areas such as freezers, storage areas, and other critical areas
• Store humidity and temperature historical data for report generation

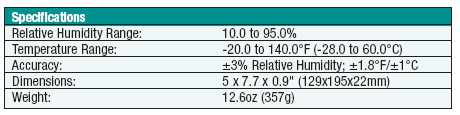

Technical Specifications

            Call For Replacement Probes and Options
