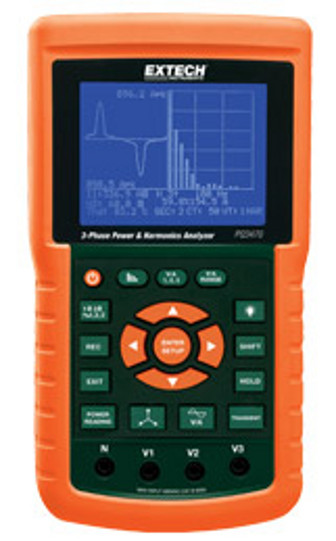

Extech PQ3470 3-Phase Power Analyzer/Datalogger
|
Item Number: PQ3470
Manufacturer: Extech
Part Number: PQ3470
Product Options
Additional Probe Option (At least one set required)
* Whole number only
|
|
Extech PQ3470 3-Phase Power Analyzer/Datalogger
Extech PQ3470 Features:
- Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu
- Full system analysis with up to 35 parameters:
- V (phase-to-phase), V (phase-to-ground)
- A (phase-to-ground)
- KW / KVA / KVAR / PF (phase)
- KW / KVA / KVAR / PF (system)
- KWH / KVAH / KVARH / PFH (system)
- Phase angle

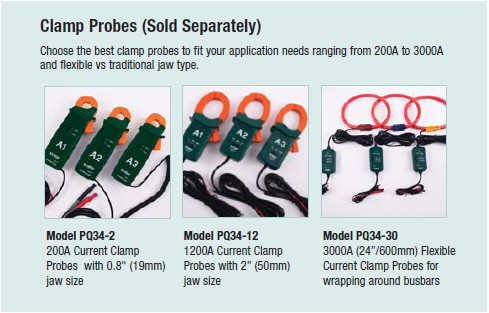

- Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
- Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
- Simultaneous display of Harmonics and Waveform
- Analysis of Total Harmonic Distortion (THD)
- Graphic Phase diagram with 3-Phase system parameters
- 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
- Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
- Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
- Wide sampling rate range (2 seconds to 2 hours)
- Built-in Clock and Calendar
- Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.

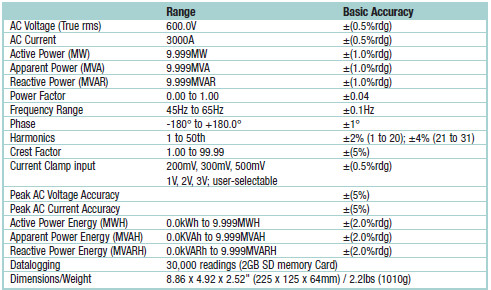

Extech PQ3470 Specifications:
|

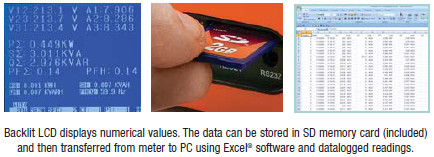

The Extech PQ3450 saves data on an SD card in Excel® format
For easy transfer to a PC for analysis.
| |
