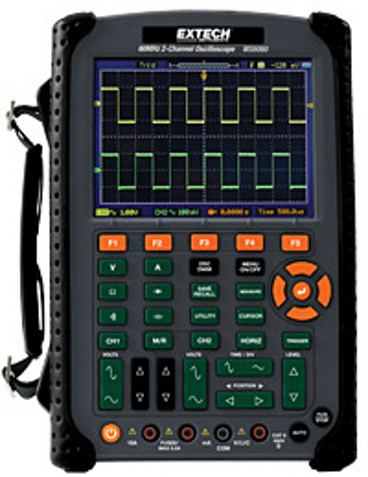

Extech MS6060 60MHz 2-Channel Digital Oscilloscope
|
Item Number: MS6060
Manufacturer: Extech
Part Number: MS6060
* Whole number only
|
|
Extech MS6060 60MHz 2-Channel Digital Oscilloscope
Extech MS6060 Features:
- 60MHz bandwidth
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform

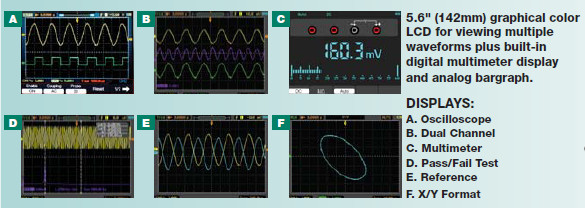

- Easy-to-use pop-up menu with built-in multi-language system
- 23 Automatic Measurements
- Waveform Math: Add, Subtract, Multiply, and Divide
- Store and recall up to 1000 waveform screens and setups using the installed 2G microSD card
- Automatic cursor tracking measurements
- XY Mode
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
- Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
- Pass-Fail function compares a stored waveform to an unknown input
- Average Mode for smoothing waveforms
- Square Wave Output (2V, 1kHz) for probe adjustment
- Built-in 6,000 count True RMS MultiMeter with analog bargraph
- Complete with two 1X/10X oscilloscope probes, test leads, 7.4V Li-Ion battery, universal AC charger, and carrying case

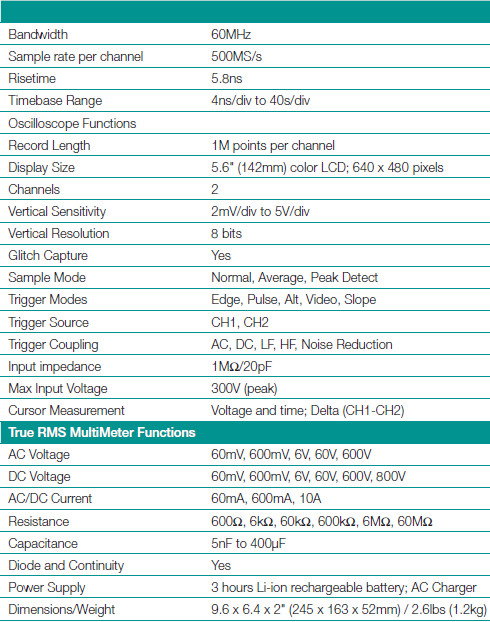

Extech MS6060 Specifications:
|
The Extech MS6100 has a 5.6" color LCD display, 23 automatic measurements, waveform recorder.
|
The Extech MS6200 has a 5.6" color LCD display, 23 automatic measurements, waveform recorder.
|
