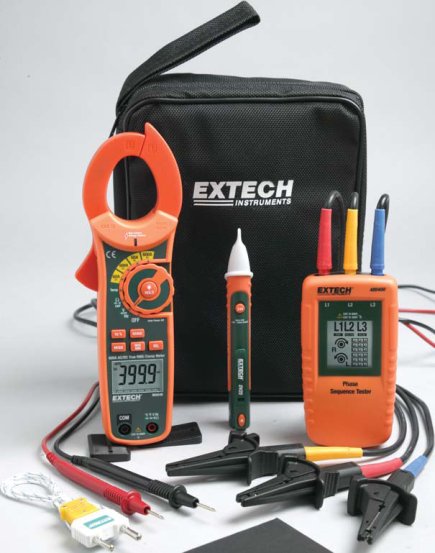

Extech MA640-K Phase Rotation/Clamp Meter Test Kit
|
Item Number: MA640-K
Manufacturer: Extech
Part Number: MA640-K
* Whole number only
|
|
|
Extech MA640-K Phase Rotation/Clamp Meter Test Kit
Extech MA640-K Kit Includes:
-
Model MA640 — 600A True RMS 6000 count AC/DC Clamp-on MultiMeter
with built-in non-contact AC Voltage Detector, test leads and temperature
probe; ETL approved
-
Model 480400 — 3-Phase Rotation Tester with multiline LCD display, durable
double-molded housing, and easy-to-open wide-jaw alligator clips
-
Model DV25 — Dual Range AC Voltage Detector (24 to 1000VAC/100 to 1000VAC)
+ Flashlight with Audible/Visual indication, double-molded housing, and
CAT IV-1000V safety rating; UL listed
-
Set of double molded professional test leads
-
Type K thermocouple bead probe and Type K to Banana Input Adaptor
-
Supplied in a soft carrying case that provides protection and organization for
the meters whenever they are needed
|
|
Extech MA640 600A True RMS AC/DC Clamp Meters + NCV
|
|
|
Extech MA640 Features:
-
Built-in non-contact Voltage detector with LED alert
-
1.5" (40mm) jaw size for conductors up to 500MCM
-
6000 count, backlit LCD display
-
Multimeter functions include AC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode, and Continuity
-
Measures DC Current
-
Relative Mode for Capacitance Zero and Offset Adjustment
-
Data Hold and MIN/MAX
-
Auto Power Off
|
|
</>
|
Extech 480400 Phase Sequence Tester:
|
|
|
Extech 480400 Features:
-
40 to 600VAC rated test range for testing phase orientation of three phase power sources over 15 to 400Hz frequency range
-
Graphical multiline LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
-
Durable housing is double molded
-
Easy to open alligator clips with wide jaws
-
Tests phase orientation of three phase power sources
-
No battery required
|
|
|
Extech DV25 Dual-Range AC Voltage Detector with Flashlight:
|
 |
Extech DV25 Features:
-
Non-contact detection of AC Voltage in 2 ranges:
24 to 1000VAC
100 to 1000VAC
-
CAT IV-1000V safety rating
-
For use on 50/60Hz circuits
-
Rugged double-molded housing
-
Tip fits into outlets or against wire insulation testing
-
Audible and Visual voltage indication
-
Built-in bright flashlight with On/Off button
-
Compact size with pocket clip
|
|
