FLIR T250 Infrared Camera
|
Our Price: Discontinued - Call for Replacement Options
Item Number: FLIR T250
Manufacturer: Extech
Part Number: FLIR T250
|

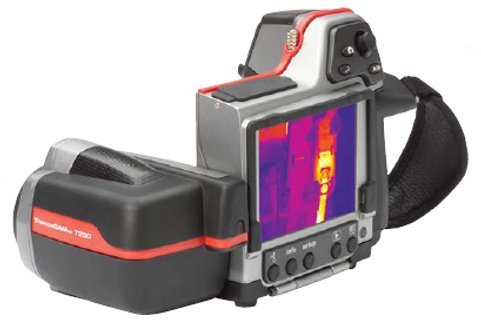

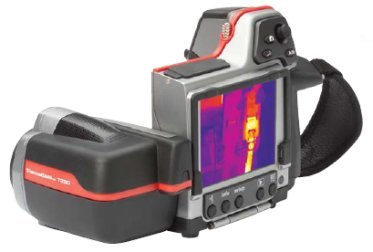

Extech FLIR T250 Thermal Imaging InfraRed Camera
Extech FLIR T250 Features:
-
Thermal Sensitivity up to 0.08°C @ 25°C
-
Auto/Manual Camera Zoom up to 2X
-
Upgradable Functions and Lenses
-
Voice Comment Recording on Images
-
Picture-in-Picture Fusion
-
3.5" Touch-Screen LCD Display
-
Convenient 120° rotating lens
-
Thumbnail Image Gallery
-
0.08°C Thermal sensitivity (NETD)
-
Voice Comment recording on images and can be integrated onto reports
-
Text from touch screen
-
Image marker allows sketching on the screen
-
Upgradable capabilities (See below for details)
|
|
|
|
|
|
|
|
Multifunction Touch Screen
|
Sketching on Screen
|
Picture-in-Picture (PIP) Fusion
|
120° lens rotation
|
-
High Resolution IR Images — 30,000 pixels (200 x 150) Infrared resolution
-
Visible Light Digital Camera — 1.3MP (1280 x 1024) resolution with flash provides sharp images regardless of lighting conditions
-
Fusion Picture in Picture (PIP) — Displays thermal image super-imposed over a digital image
-
Wide Temperature Range — Measures from -4 to 662°F (-20 to 350°C) targeting electrical and industrial applications
-
2% Accuracy — critical for condition monitoring of thermally sensitive targets
-
Thumbnail Image Gallery — Allows quick search of stored images
-
1X-2X Continuous Zoom — with auto/manual focus and optional interchangeable lenses for greater versatility
-
Rotating Lens — Convenient rotating lens detents up to 120° for easy viewing angle
-
Li-Ion Rechargable Battery — Replaceable battery lasts >4hrs of continuous use
-
Laser LocatIR™ Pointer — Pinpoints the hot spot on the IR image with the real physical target
-
Standard SD Card — Stores more than 1000 Radiometric JPEG images
-
Includes — SD Memory Card, Li-Ion rechargeable battery with 100-260V AC adaptor/charger, 2-bay battery charger, QuickReport software, USB Mini-B cable, video cable, sun shield, stylus pen & headset (T250), camera lens cap, and transport case
 |
Multifunction Touch Screen:
The 3.5" LCD high resolution touch screen plus stylus brings interactivity and user comfort to a new level. Easy to navigate menu allows you to quickly switch from different modes. The T250 allows sketching and graphical marks on the screen and also voice comment recording with each image and can be transferred to a report.
|
Extech FLIR T250 Applications:
|
Picture-in-Picture Fusion - Allows for easier identification and interpretation of infrared images. This advanced technology enhances the value of an infrared image by allowing you to overlay it directly over the corresponding visible image. This functionality combines the benefits of both the infrared image and visual picture at the push of a button.
|
|
|
|
|
Electrical Panels
|
Boiler & Pipe Inspections
|

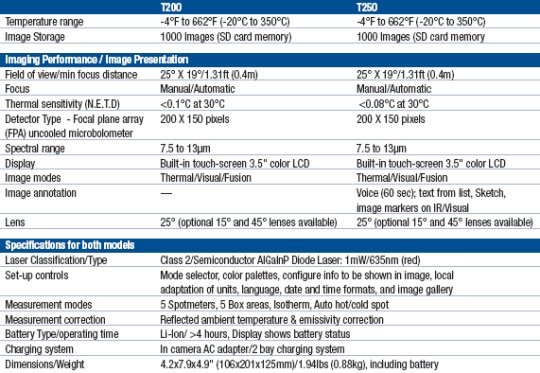

Extech FLIR T250 Specifications:
|
|
|
QuickReport PC software enables user to analyze Temperature of all thermal pixels of any FLIR Camera JPEG Images
|
|
|
|
Optional Triple Fusion Function
This advanced technology enhances the value of an infrared image by allowing you to merge it directly with the corresponding visible image. The blending of the two images can be easily adjusted to suit any application such as electrical surveys, building diagnostics and mechanical inspections in real time and is scalable at a push of a button. This is an optional upgradable function for the T200 and T250 cameras.
|
|
