Extech FLIR B200 High-Sensitivity Thermal Imaging Camera

Our Price: THIS UNIT HAS BEEN DISCONTINUED. PLEASE CALL (732) 632-6400 FOR REPLACEMENT OPTIONS.

Item Number: FLIR B200

Manufacturer: Extech

Part Number: FLIR B200

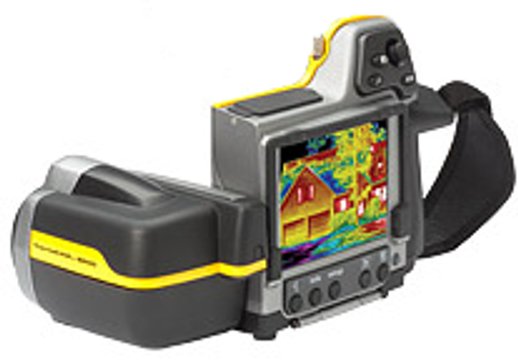

Extech FLIR B200 High-Sensitivity Thermal Imaging Camera

Extech FLIR B200 Features:


Multifunction Touch Screen	Sketching on Screen	Picture-in-Picture (PIP) Fusion	120° Lens Rotation

Instant imaging — Captures entire room to reveal wet conditions behind surfaces, such as enameled walls and wallpaper and even in places where moisture meters can’t reach
Insulation Alarm — Easily detects areas that don’t fulfill the insulation requirements
Dew Point Alarm — displays areas with risk of surface condensation where mold growth could occur
High Resolution IR Images — 30,000 pixels (200 x 150) Infrared resolution
Visible Light Digital Camera — 1.3MP (1280 x 1024) resolution with flash provides sharp images regardless of lighting conditions
Fusion Picture in Picture (PIP) — Displays thermal image super-imposed over a digital image


Upgradable Features & Functions: FLIR B200 and FLIR B250 have the flexibility to be upgraded to include advanced functions and features. These include Scalable Thermal Fusion capability (shown above) which is the blending of thermal image with a digital image in real-time, higher IR Resolution to 76,800 pixels, 8X zoom, Video mode, 0.05°C Thermal sensitivity (NETD), and more!	Multifunction Touch Screen: The 3.5" LCD high resolution touch screen plus stylus brings interactivity and user comfort to a new level. Easy to navigate menu allows you to quickly switch from different modes. The B250 allows sketching and graphical marks on the screen and also voice comment recording with each image and can be transferred to a report.

Wide Temperature Range — Measures from -4 to 662°F (-20 to 350°C) targeting electrical and industrial applications
2% Accuracy — critical for condition monitoring of thermally sensitive targets
Thumbnail Image Gallery — Allows quick search of stored images\
1X-2X Continuous Zoom — with auto/manual focus and optional interchangeable lenses for greater versatility
Rotating Lens — Convenient rotating lens detents up to 120° for easy viewing angle
Li-Ion Rechargable Battery — Replaceable battery lasts >4hrs of continuous use
Laser LocatIR™ Pointer — Pinpoints the hot spot on the IR image with the real physical target
Standard SD Card — Stores more than 1000 Radiometric JPEG images
Includes — SD Memory Card, Li-Ion rechargeable battery with 100-260V AC adaptor/charger, 2-bay battery charger, QuickReport software, USB Mini-B cable, video cable, sun shield, stylus pen & headset (B250), camera lens cap, and transport case

Extech FLIR B200 Applications:

Picture-in-Picture Fusion: Allows for easier identification and interpretation of infrared images. This advanced technology enhances the value of an infrared image by allowing you to overlay it directly over the corresponding visible image. This functionality combines the benefits of both the infrared image and visual picture at the push of a button.

Building Insulation	Water Leakage

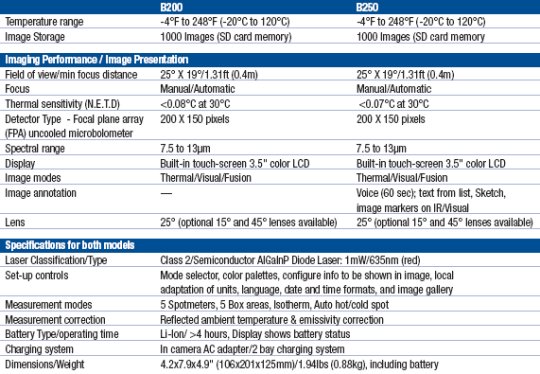

Extech FLIR B200 Specifications:

Extech FLIR B200 Optional Triple Fusion Function:

This advanced technology enhances the value of an infrared image by allowing you to merge it directly with the corresponding visible image. The blending of the two images can be easily adjusted to suit any application such as building diagnostics and mechanical inspections in real time and is scalable at a push of a button. This is an optional upgradable function for the B200 and B250 cameras.

Identify Insufficient Insulation	Water Leakage from Building	Water Leakage from Ceiling
