Extech EX505-K Heavy Duty Industrial MultiMeter Kit

Our Price: $139.99

Item Number: EX505-K

Manufacturer: Extech

Part Number: EX505-K

Quantity:

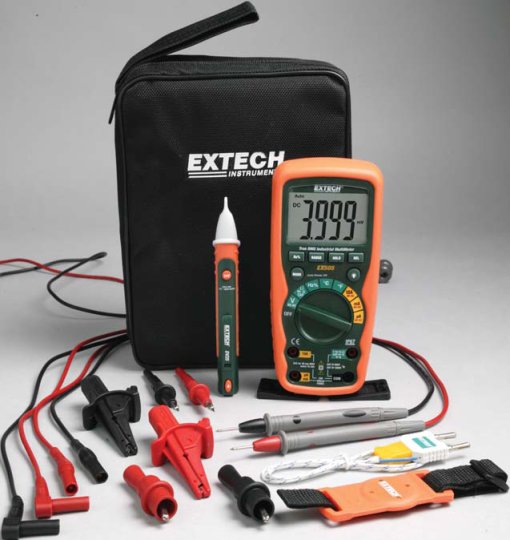

Extech EX505-K Heavy Duty Industrial MultiMeter Kit

The Extech EX505-K Includes:

Model EX505 Industrial grade, CAT IV-600V, 4000 count display, waterproof,
drop-proof, rugged multimeter with True RMS functions
Model DV25 Dual Range AC Voltage Detector (24 to 1000VAC/100 to 1000VAC) + Flashlight with Audible/ Visual indication, double-molded housing, and CAT IV-1000V safety rating
Model TL808 8-Piece Professional Test Lead Kit with CAT III-1000V safety rating
Set of double molded professional test leads
Type K thermocouple bead probe with Type K to Banana Input Adaptor
Magnetic hanging strap
Supplied in a soft carrying case that provides protection and organization for the meters whenever they are needed
Dimensions: 9.8x8x2" (248x203x51mm)

Extech EX505 11 Function Heavy Duty True RMS Industrial MultiMeter:

	True RMS DMM with 4,000 count large LCD display, temperature function and waterproof housing
	The Extech EX505-K Features: True RMS DMM with 11 functions and 0.5% basic accuracy AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity Dual sensitivity frequency functions (electrical/electronic) 1000V input protection on all functions 10A max Current Data hold, Relative, Auto power off 4,000 count large backlit LCD Double molded housing for waterproof protection
	The Extech EX505-K Specifications:

Extech DV25 Dual Range AC Voltage Adapter:

	Pocket size Non-Contact Volatge Detector with two selectable ranges
	The Extech EX505-K Features: Non-contact detection of AC Voltage in 2 ranges: 24 to 1000VAC 100 to 1000VAC For use on 50/60Hz circuits Audible and Visual voltage indication Built-in bright flashlight with On/Off button Rugged double-molded housing Tip fits into outlets or against wire insulation testing

Extech TL808 8-Piece Professional Test Lead Kit:

	8-piece Kit with CATIII-1000V safety rating
	The Extech TL808 Features: Two 42" (1m) PVC lead extensions with shrouded banana plugs at both ends Two modular 4" (102mm) Heavy Duty test probe handles with 0.16" (4mm) banana plug tips Two standard size alligator clips with insulated rubber boot Two extra large, double-insulated alligator clips with sharp teeth for piercing insulated wires - jaw opens 0.8" (20mm)
