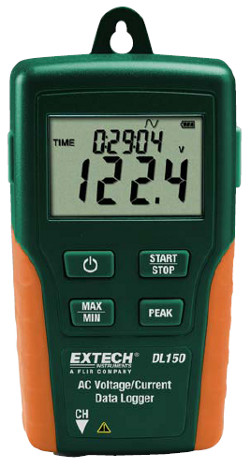

Extech DL150 True RMS AC Voltage/Current Datalogger
|
Item Number: DL150
Manufacturer: Extech
Part Number: DL150
* Whole number only
|
|
Extech DL150 True RMS AC Voltage/Current Datalogger
Extech DL150 Features:
- Measure True RMS AC Voltage (600V) or Current (200A)
- Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
- LCD indicates time/date, current readings, and Min/Max
- Normal, Peak and Capture (user-specified trigger level) recording modes
- Auto Power off and battery check

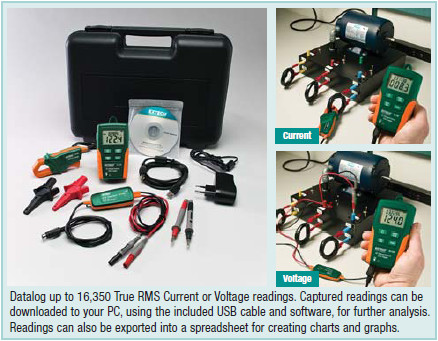

- Complete with current clamp, test leads, USB cable, Windows® compatible software, universal AC Adaptor, and four AAA batteries

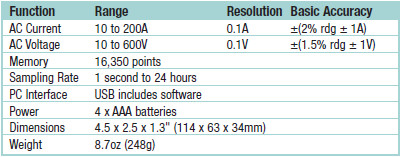

Extech DL150 Specifications:
|
The Extech DL160 can Datalog up to 256,000 readings with user programmable sample rate, and Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input.
| |
