Extech DCP42 Power Supply

Our Price: $549.00

Item Number: DCP42

Manufacturer: Extech

Part Number: DCP42

* denotes required field

Calibration Options*

Calibration Not Included

Standard Calibration (+ $55.00)

ISO 17025 Accredited Calibration Certification (+ $95.00)

Quantity:

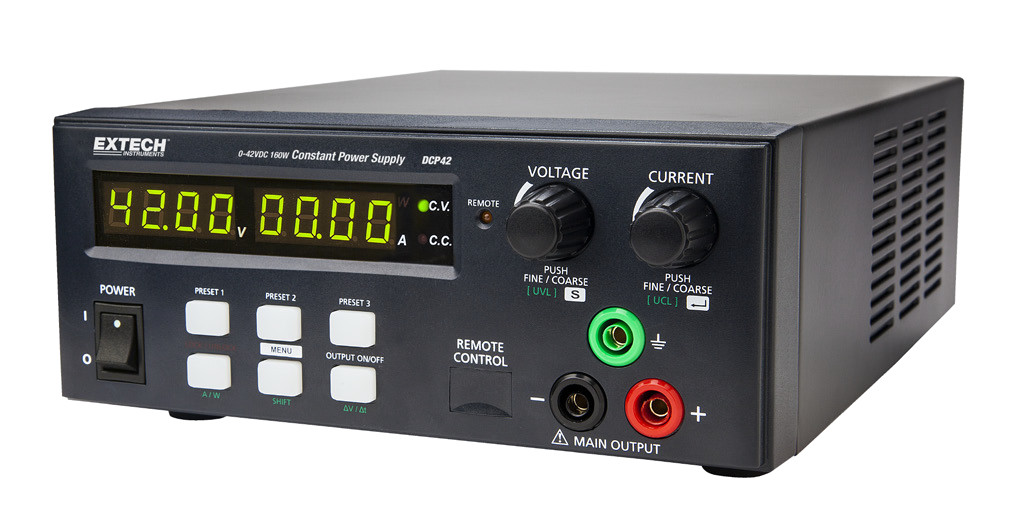

Extech DCP42 160W Switching Power Supply (16V @ 10 Amps or 42 V @ 3.8 Amps)

Single Output Continuous Switching Power Supply with USB

Features

Constantly calculates and adjusts the Voltage and Current limit points according to available maximum power (160W)
At maximum current (10A), voltage is limited to 16V
At maximum voltage (42V), current is limited to 3.8A
Dual action rotary encoder control with push knob for fine and coarse tuning
Remote control for Programming, Output Voltage/Current, and ON/OFF using supplied software, driver, and USB
Three on-board user-defined Voltage/Current presets
Store 20 presets with up to 999 cycles each on a PC via USB and supplied Software
Software also includes DC Ramp and Waveform Generator
Complete with power cord, software, and USB cable

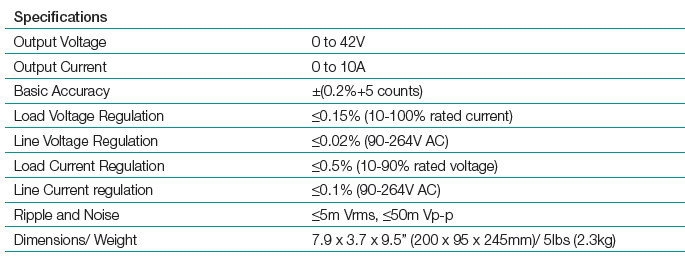

Technical Specifications

Extech DCP42 Data Sheet
