Extech 412355A Current and Voltage Calibrator Meter

Extech 412355A Current and Voltage Calibrator Meter

Extech 412355A Features

• Drives current loads up to 1000 Ohms (Model 412355A does not have a 24 VDC loop supply feature)

• Sources 0 to 25 mA DC; 0 to 10 V DC
• Measures 0 to 55 mA DC; 0 to 19.99 V DC

• Five preset calibration values for fast calibration
• High accuracy 0.075%
• Oyster flip-up case design display is ideal for hand held or benchtop applications
• Large LCD displays readings in mA (to 0.01mA) or as a percentage of the 0-24mA range (4-20mA = 0-100.0%) or as mV in voltage range
• Complete with 9V battery, calibration cable with spade lug terminals, carrying case, and AC Adaptor (110V AC adaptor)


Applications

• Setup and calibration of process devices such as:
  - Transmitters, Isolators, Converters and Transducers
  - Indicators and Panel Meters
  - Recorders
  - Controllers
•
  Field Service and Controls Troubleshooting

• Product design and development

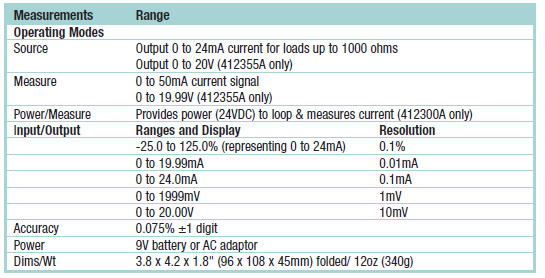

Technical Specifications
