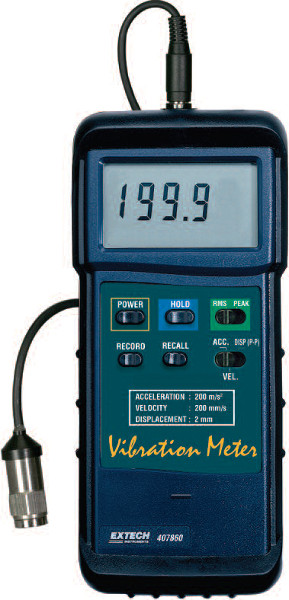

Extech 407860 Heavy Duty Vibration Meter

Extech 407860 Heavy Duty Vibration Meter

Features

• Ranges — Acceleration (peak): 656ft/s2 (200m/s2),

• Remote vibration sensor with magnetic adapter on 39"(1m) cable
• Wide frequency range of 10Hz to 1kHz
• Resolution to 2ft/s2 (0.5m/s2), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
• Basic accuracy of ±(5% + 2 digits)
• RMS or Peak Value measurement modes
• Manual/Auto store/recall up to 500 readings
• Optional Windows® 95/98/NT/2000/XP compatible software allows captured readings to be downloaded to your PC for further analysis
• Data Hold freezes the reading in the display
• Auto shut-off saves battery life
• 9V battery power or optional AC adaptor
• Dimensions: 7.1 x 2.8 x 1.3" (180 x 72 x 32mm); Weight with Probe: 0.87lbs (395g)
• Complete with remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case

Applications:

• Motors, bearings
• Fans
• Pumps
• Rotating machinery
• Plant maintenance

Extech 407860 Data Sheet
