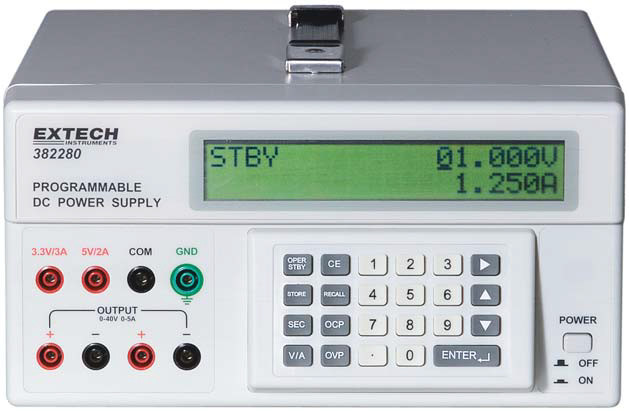

Extech 382280 200 Watt Output DC Power Supply

Extech 382280 40V/5 Amp Programmable Precision 200 Watt Output DC Power Supply

Features

• High resolution programmable output and two fixed outputs of 5V and 3.3V
• Selectable constant Voltage or Current modes
• Auto output of up to 200 steps with programmable Voltage, Current and time
• Programmable over Voltage protection
• Programmable over Current protection with 0 to 60 second delay timer
• Storage/Recall memory for 200 test setups
• Bi-directional RS-232 port for custom PC programming and automatic test setups
• High stability with low ripple and noise
• Dual output terminal for source and monitor connections
• Dual high contrast LCD display with backlighting

Applications

• Precision R & D Voltage and Current source
• Repetitive production tests using setup recall feature
• Prototype board initial power-up with overload protection
• General purpose high power lab requirements

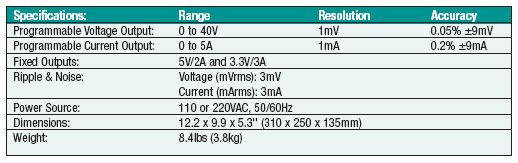

Technical Specifications
