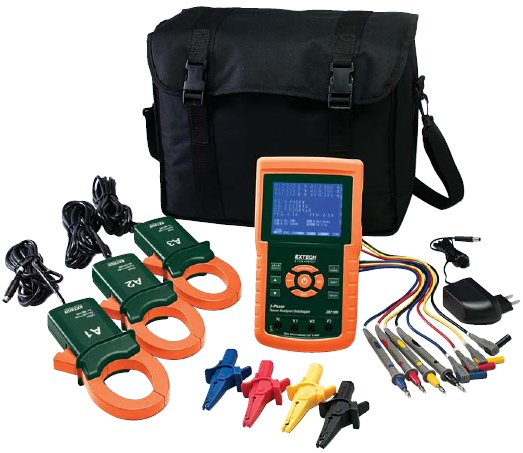

Extech 382100 1200A 3-Phase Power Analyzer/Datalogger

Extech 382100 1200A 3-Phase Power Analyzer/Datalogger

Extech 382100 Features: Large dot-matrix, sun-readable, numerical, backlit LCD Full system analysis with up to 35 parameters - V (phase-to-phase), V (phase-to-ground) - A (phase-to-ground) - KW / KVA / KVAR / PF (phase) - KW / KVA / KVAR / PF (system) - KWH / KVAH / KVARH / PFH (system) - Phase angle High accuracy autoranging current clamps (0.2A to 1200.0A) 600.0VAC input with CAT III-600V safety rating Adjustable Current Transformer (CT) and Voltage Transformer (VT) ratio for high power distribution systems Log up to 60,000 reading on a removable SD memory card in Microsoft Excel® format Wide sampling rate range (2 seconds to 2 hours) Captured measurements can be imported directly into Excel via the SD memory card Easy-to-use onscreen menu Easy-to-grab rugged over molded housing
	Backlit LCD displays numerical values
	SD memory card included

• AC Power Quality Evaluation
• Motor/Generator Installation
• Energy Audits

• 3 Current Clamps
• 4 Voltage leads with alligator clips
• 8 AA batteries
• SD memory card
• Universal AC adapter (100 to 240V)
• Case
