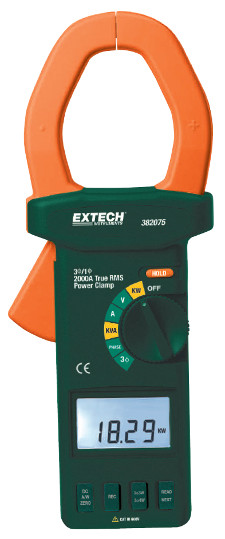

Extech 382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
|
Item Number: 382075
Manufacturer: Extech
Part Number: 382075
* Whole number only
|
|
Extech 382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
Extech 382075 Features
- 4-Digit 9999 count dual display LCD
- Clamp jaws open to 2.2" (55mm) for 1000MCM conductors
- Measures True Power (AC, DC)
- Measures Reactive(KVAR), and Apparent(KVA) Power to 1200KW
- Display Lead/Lag Current/Voltage phase shift in degrees
- Store and recall last four measurements
- Basic Measurements: Watts, Volts, Amps, and Frequency
- Advanced: KVA, KVAR, power factor, and phase angle
- Wide ranges to 1200kW, 600VAC, 800VDC, and 2000A
- Display Lead/Lag Current/Voltage phase shift in degrees
- Store/recall last 4 readings
- DC Current Auto-Zero
- Dual displays: kW+PF, kVA+kVAR, phase angle + Hz, Volts + Hz, or Amps + Hz
- Advanced Relative and Min/Max functions
- Data Hold
- Complete with test leads, carrying case, and 9V battery

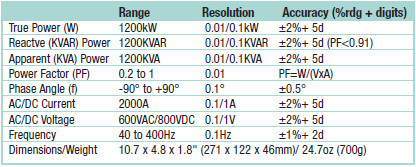

Extech 382075 Specifications
|
