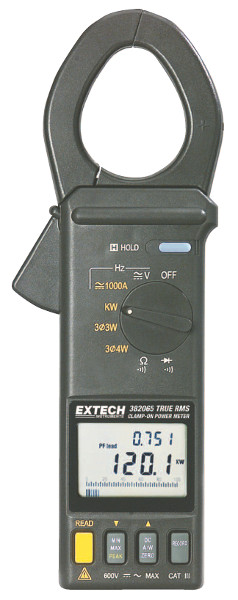

Extech 382068 1000A True RMS Clamp-on Power Datalogger Kit

Extech 382068 1000A True RMS Clamp-on Power Datalogger Kit

Features

• 1000A Clamp measures 1 or 3(phase) power to 600kW
• Display True Power, Apparent Power, Power Factor, True RMS Voltage and Current, Resistance and Frequency
• Dual display of kW+PF, kVA+PF, V+A, A+Hz or V+Hz
• Clamp jaws open to 1.8" (46mm)
• Built-in recorder datalogs up to 4000 readings or download to a PC
• 25 point data memory viewable on the LCD display
• Full function display on large 4-digit LCD with fast 40 segment bar graph, Peak Hold and MIN/MAX
• RS-232 module with PC software to capture and display data
• Complete with RS-232 module, Windows® 95/98/NT/2000/ME/XP compatible software, cable, 9V battery, alligator clips, test leads, and carrying case

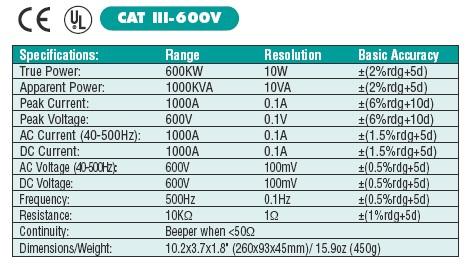

Technical Specifications
