Extech 381275 Handheld Multiscope Multimeter

Extech 381275 Multiscope Storage Oscilloscope and Multimeter

Features:

• Oscilloscope graphical functions: Single channel, volts/division (150mV to 400V), Amps/division (15A)
• 500ns Glitch Capture, Pre/Post-Trigger (-4div./+10div.)
• Oscilloscope Bandwidth: DC to 100kHz with aSample rate of 1 Million Samples/sec

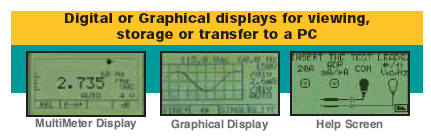

• Oscilloscope Display: 128 x 64 pixel graphic LCD (View area: 2.8x1.5")
• MultiMeter Display: 3-3/4 digit (4000 count) LCD with Bargraph and Data Hold
• MultiMeter functions: AC/DC Voltage/Current, Resistance, Capacitance, Frequency, dB,
• Duty Cycle, Pulse Width, Period, TTL level Generator, Diode and Continuity tests
• Built-in RS-232 PC interface
• Record and Recall MIN/MAX/AVG readings with time stamping
• Generator output provides 10Hz to 20kHz TTL level output
• Store and recall 15 waveforms plus setup
• Graphical HELP screens explain functions
• Over-range indication and Auto power off
• Optional inductive pick-up adaptor for automotive RPM measurements to 12,000 rpm. (Distributor type engines)
• Optional 381279 rechargeable NiCad battery pack & AC adaptor/recharger recommended
• Complete with protective holster, built-in stand, Windows® 95/98 compatible software, RS-232 cable, six AA batteries, fuses, test leads & alligator clips
