Extech 380976-K Clamp Meter Kit
|
Item Number: 380976-K
Manufacturer: Extech
Part Number: 380976-K
* Whole number only
|
 Extech 380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter Kit Extech 380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter Kit |
|

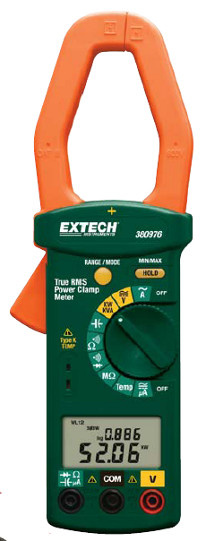

Extech 380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter Kit
Extech 380976-K Features
- Large dual LCD display (9999 count)
- Measures 1ϕ/3ϕ True Power (kW), Apparent Power (kVA), and Reactive Power (kVAR), plus Horsepower
(HP), Power Factor, and Phase Angle with Lead/Lag indicator
- AC+DC μA current with 10nA resolution for flame rod tests
- Max/Min recording with elapsed time indication
- Auto Detect AC/DC Voltage measurements with simultaneous frequency display
- Capacitance to 7000μF with 0.001μF resolution
- High Resistance tests to 100MΩ
- Type K, °C/°F switchable, temperature to 1000ºF
- Diode and Continuity tests
- Auto power off with disable feature
- 1.6" (40mm) clamp jaw opening

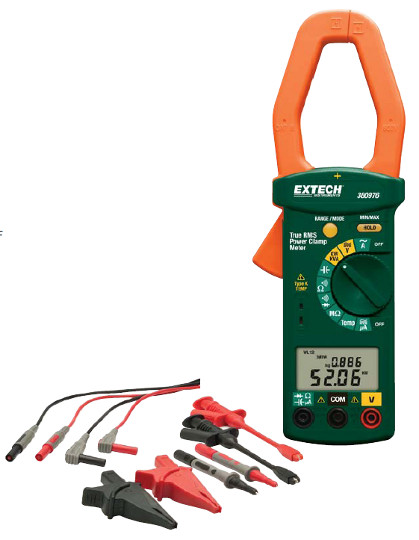

- Test Lead Kit includes: two CAT IV-600V 72” (1.8m) lead extensions with right angle and straight end shrouded
banana plugs; two modular test probe handles with stainless steel tips; two plunger activated retractable jaw clips;
two extra large alligator clips
- Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
Extech 380976-K Applications
- AC Power evaluation
- Motor/Generator installation and repair
- HVAC flame rod tests
- Capture max/min temperature or current values
- Category III rating for industrial measurements

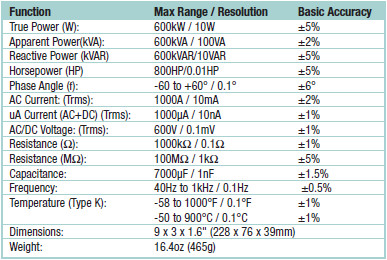

Extech 380976-K Specifications
|
