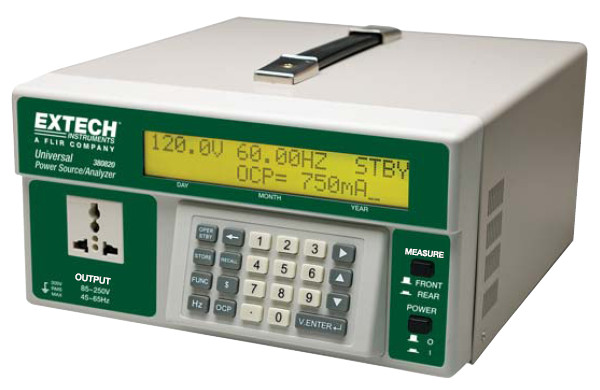

Extech 380820 Universal AC Power Source & AC Power Analyzer
|
Item Number: 380820
Manufacturer: Extech
Part Number: 380820
* Whole number only
|
|
Extech 380820 Universal AC Power Source & AC Power Analyzer
Extech 380820 Features
- Low Power, high resolution front panel output with variable voltage and frequency
- HighPower rear panel output supplies line frequency and voltage
- Low Power Measurement (10mW to 100W) for testing power consumption of small devices or standby power at different voltages and frequencies
- High Power Measurement with Harmonics measurements 100mW to 1000W @ 110V or 100mW to 2000W @ 220V
- Power Quality Measurement (Watts, Power Factor, Voltage, Current, Harmonics)
- Cost Function calculates cost per day, month, and year
- 99 memory locations for preset voltage and frequency output settings
- Standby and Operation button
- User-programmable Over Current Protection (current limiting)
- Programmable through the built-in RS-232 interface
- Data acquisition mode captures readings to your PC with a user-programmable sampling rate of 2 to 65,535 seconds

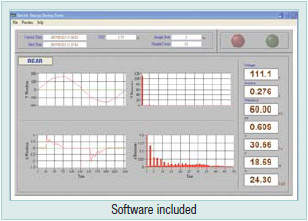

- Complete with AC power cord, RS-232 to USB cable and software

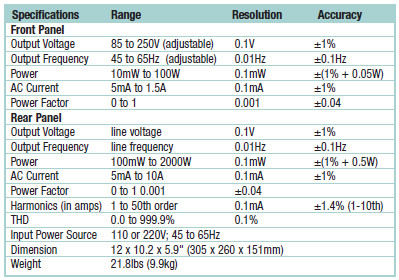

Extech 380820 Specifications
|
