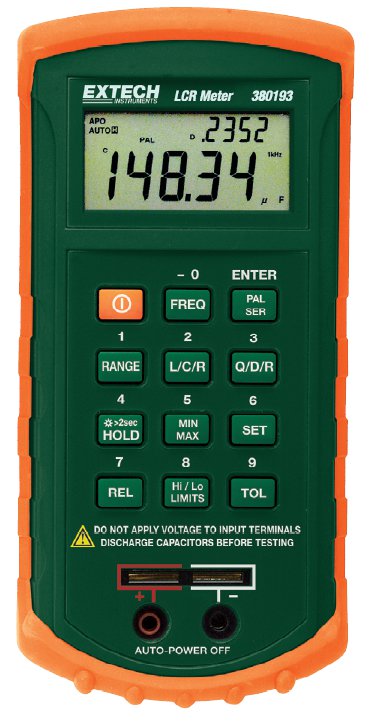

Extech 380193 Passive Component LCR Meter

Extech 380193 Passive Component LCR Meter

Features

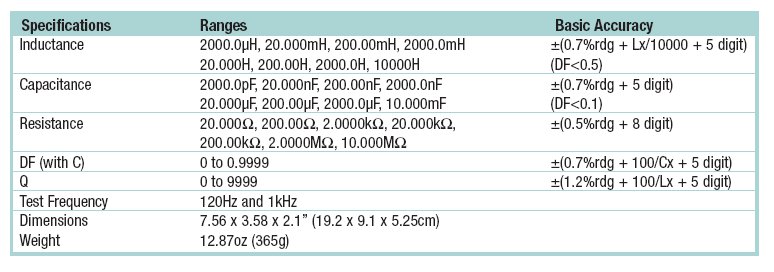

• Measures Capacitance and Inductance to 0.7% and Resistance to 0.5%
• Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
• Secondary parameter display of Q (quality), D (dissipation) or R (resistance)
• Test frequencies of 120Hz and 1kHz
• Set Hi/Lo limits using absolute values or percentage limits
• Selectable Parallel or Series equivalent circuit
• 4-1/2 digit backlit LCD display provides resolution to 0.1pF, 0.1uH and 0.001 Ohm
• Max/Min/Avg recording
• Built-in test fixture or use external test leads
• Open and Short Zero removes unwanted stray impedance from the measurement
• Relative mode with zero reference or user supplied reference
• Includes built-in RS-232 interface with Windows® 95/98/NT/2000/XP software to display, analyze and store data
• Auto power off
• Automatic blown fuse indication
• Powered by 9V battery
• Complete with test leads, alligator clips, 9V battery, and protective holster

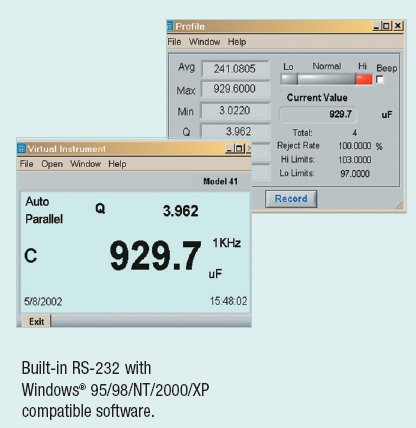

Windows PC Software for Data Analysis & Storage (Now Included!)
