Dwyer Series MS2 Magnesense® II Differential Pressure Transmitter
|
Item Number: MS2
Manufacturer: Dwyer
Part Number: MS2
Product Options
* denotes required field
Mounting Type with Accuracy Selection*
You must select an option for 'Mounting Type with Accuracy Selection'.
Pressue Range Selection (Look Below to see the Ranges)*
You must select an option for 'Pressue Range Selection (Look Below to see the Ranges)'.
Dwyer Series MS2 Options & Accessories
* Whole number only
|

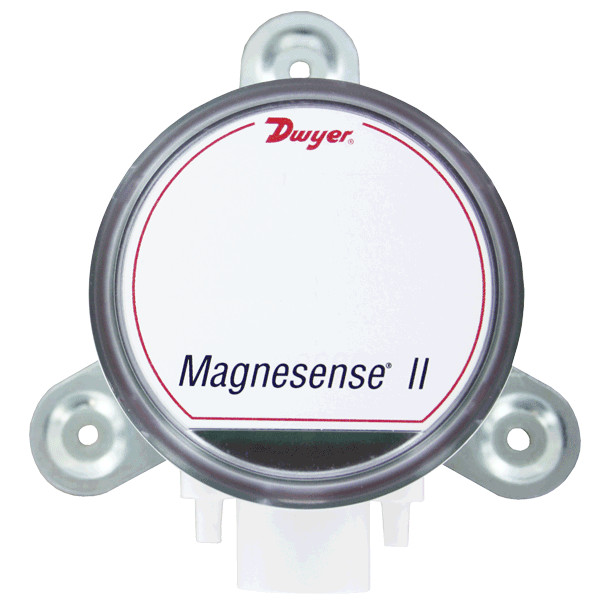

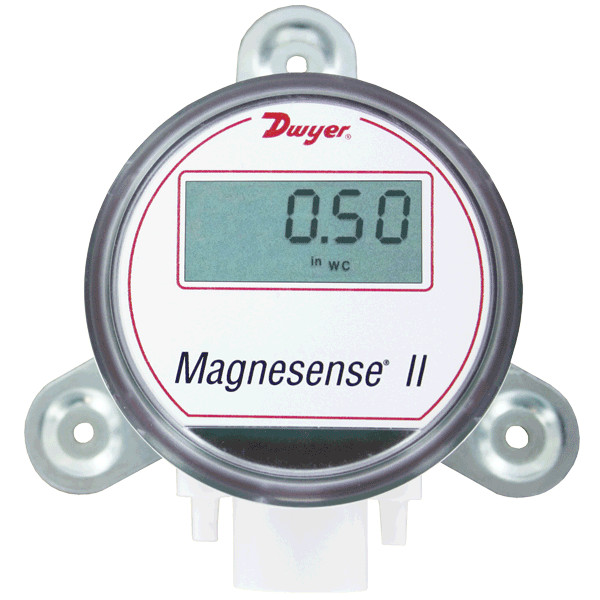

 Dwyer MS2 Magnesense II Differential Pressure Transmitter Wall Mount w/LCD Dwyer Series MS2 Magnesense® II w/Wall Mount Bracket (without LCD) |
|
Dwyer Series MS2 Magnesense® II Differential Pressure Transmitter
The Series MS2 Magnesense® II Differential Pressure Transmitter combines the proven stable Hall Effect sensing technology of our original Series MS with additional features to reduce installation time and simplify ordering. In this second generation transmitter, we have added additional field selectable pressure ranges so that each model can have four selectable ranges along with four additional bidirectional ranges. When using the pluggable integral display or the portable remote display tool, both Metric and English engineering units can be selected via on board dip switches. Dual current and voltage outputs allow users to simultaneously take either a current or voltage output to their building controller and have a local test circuit for verification of the output reading. The voltage output can be selected to be either 0 to 5 VDC or 0 to 10 VDC, while the current is always 4 to 20 mA. Both the current and voltage output can also be inverted. The MS2 can also be ordered with either a BACnet® or MODBUS® Communications protocol output that will allow the transmitters to be daisy-chained together.
Like the original Series MS, the second generation transmitter can be used as a linear pressure output or a linear velocity output with the square root extraction done in the transmitter. Additional parameters have been included to expand the square root capability to include flow measurements.

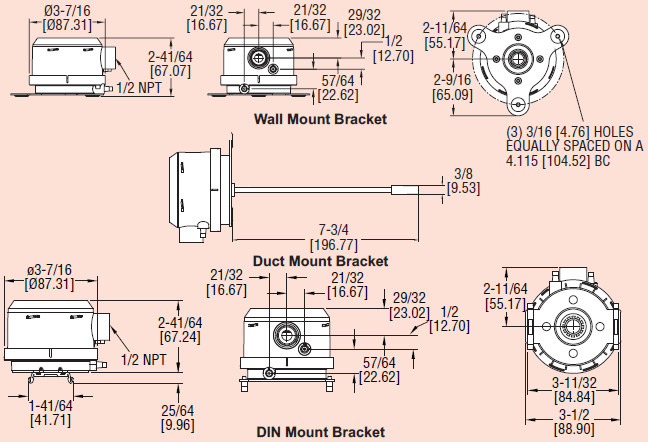

Technical Specification
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Typical Accuracy: ±1% FS for 0.25" (50 Pa), 0.5" (100 Pa), 2" (500 Pa), 5" (1250 Pa), 10" (2 kPa),
15" (3 kPa), 25" (5 kPa); ±2% FS for 0.1" (25 Pa), 1" (250 Pa), and all bi-directional ranges.
Stability: ±1% / year FSO.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi max., operation; 10 psi burst.
Power Requirements: 10 to 35 VDC (2-wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire).
Response Time: Adjustable: 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds.
Zero & Span Adjustments: Digital push buttons.
Loop Resistance: Current Output: 0 to 1250 Ω max;
Voltage Output: Min. load resistance 1 kΩ.
Current Consumption: 40 mA max.
Display (Optional): 5 digit LCD.
Electrical Connections: 3-wire removable European style terminal block for 16 to 22 AWG.
Electrical Entry: 1/2" NPS thread.
Process Connection: 3/16" ID tubing (5 mm ID); Max. OD 9 mm.
Enclosure Rating: IP66.
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approvals: BTL, CE.
Pressure Ranges
| Range 1 |
+ 0.1, 0.15, 0.25, 0.5” w.c.; + 25, 40, 50, 125 Pa; + 2.5, 4, 6, 10 mm w.c. |
| Range 2 |
+ 1.0, 2.0, 3.0, 5.0” w.c.; + 250, 500, 750, 1250 Pa; + 25, 50, 75, 125 mm w.c. |
| Range 3 |
+/- 10, 15, 25, 28” w.c.; +/- 2500, 3500, 5000, 6975 Pa; +/- 250, 350, 500, 700 mm w.c. |
| Range 11 |
+/- 0.1, 0.15, 0.25, 0.5” w.c.; +/- 25, 40, 50, 125 Pa; +/- 2.5, 4, 6, 10 mm w.c. |
|
