Dwyer DH3 Digihelic® Differential Pressure Controller

Our Price: $332.35

Item Number: DH3

Manufacturer: Dwyer

Part Number: DH3

Product Options

* denotes required field

Range Selection*

Calibration Options

Calibration Not Included

Standard Calibration (+ $85.00)

ISO 17025 Accredited Calibration Certification (+ $110.00)

Accessory Options

Flat Aluminum Bracket for flush mounting (+ $27.75)

Static Pressure Tip for 1/4˝ metal tubing connection (+ $9.90)

Static Pressure Tip for 3/16˝ & 1/8˝ I.D. plastic or rubber tubing (+ $9.10)

303 SS Static Pressure Tip with mounting flange (For 3/16˝ ID rubber or plastic tubing) (+ $9.10)

Mounting Bracket flush mount bracket (+ $33.75)

4˝ Straight Static Pressure Tip with Flange (+ $6.67)

Quantity:

Email this page to a friend

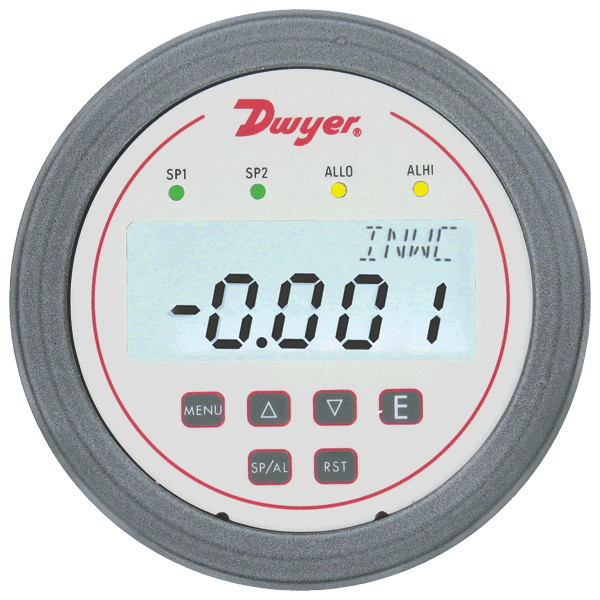

Dwyer DH3 Digihelic® Differential Pressure Controller

The DH3 controller is a perfect tool for pressure, velocity and flow applications. The DH3 ranges from 0.25" w.c. to 100" w.c. and it is also available in bi-directional ranges. Given a 4-20 mA process output the controller uses 2 SPDT control relays with adjustable deadbands. It is simple to access the 5 menus that gives you access to the security level; selection of pressure, velocity or flow operation, engineering units; and K-factor for use with flow sensors. See more info in the pdf datasheet.

Applications

SCFM flow in ducts
Filter status
Static pressures in ducts or buildings
Damper control
Fan control

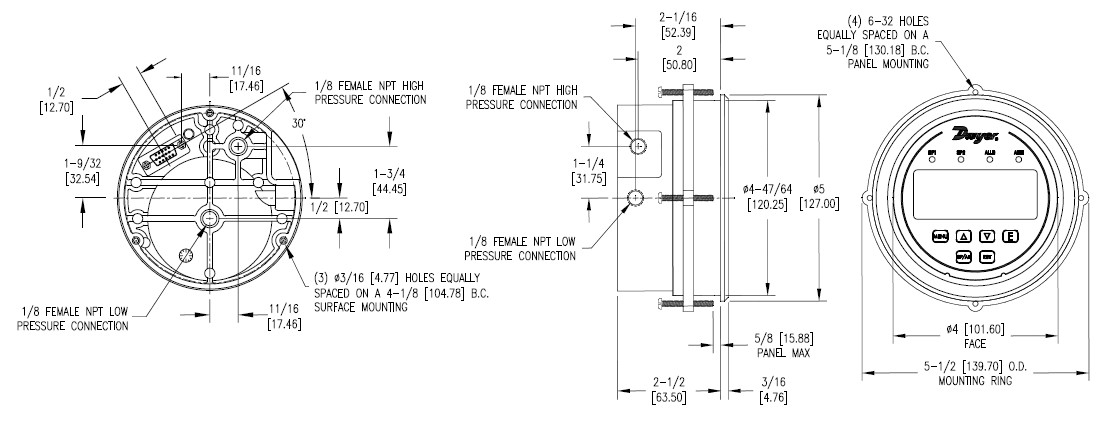

Dimensions

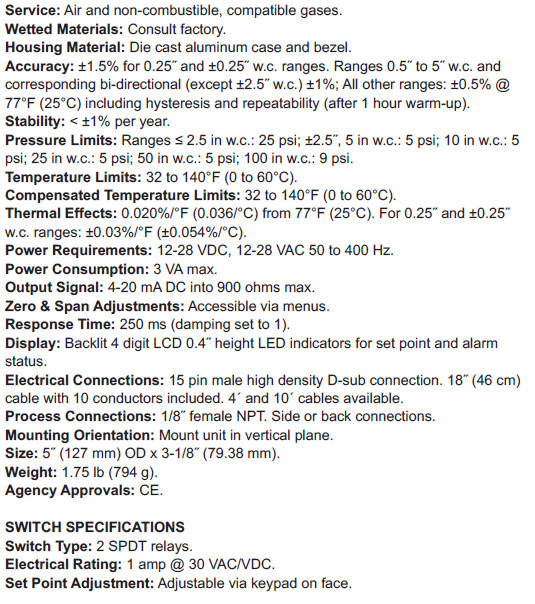

Technical Specifications

Dwyer DH3 Data Sheet
