Dwyer 475 Mark III Digital Manometer

Dwyer 475 Mark III Digital Manometer

The Dwyer® Series 475 Mark III Handheld Digital Manometer is ideal for field calibration,
monitoring or trouble shooting HVAC systems, clean rooms or a wide range of other low pressure
pneumatic systems. This handy instrument measures positive, negative or differential pressures of air

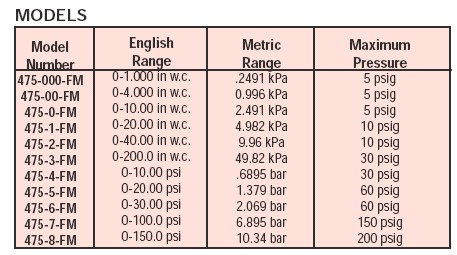

and natural gases in ranges from 1 in. w.c. (0.249 kPa) to 150 psid (10.34 bar). The Series 475-FM
is approved and is intrinsically safe for hazardous locations, Class 1, Div.1, Group A, B,C, D, T4.
Its simple operation and easy to read digital display make it an indispensable test instrument for the
plant engineer, industrial hygienist and HVAC technician. Order the optional Air Velocity (AV) kit for
air flow measurements.

The Series 475-FM Mark III is housed in a durable extruded aluminum case with its solid state circuitry
mounted on a tough fiberglass epoxy circuit board. To meet the most demanding applications and to
provide stability of instrument reading, the 1" w.c. range is compensated for position sensitivity through
operation. Dual push pads on the front panel control on-off, auto zero, and pressure unit selection.
No setup or leveling. The large 0.42" LCD display is easy to read, minimizing data collection errors.
Units include a "low battery" indicator. The pressure sensor used is a highly stable silicon piezoresistive
device. Standard connections are dual sized for 1/8" or 3/16" I.D. vinyl or rubber tubing.
Complete instructions are conveniently printed on rear of housing.

FEATURES:

• New Low Range Option 0-1.000 in. w.c.
• Measures Positive, Negative and Differential Pressures
• Rugged, Extruded Aluminum Case
• Lightweight, Fast and Easy to Use
• Selectable English/Metric Units
• FM Approved, Instrisically Safe



Optional 475-AV AIR VELOCITY KIT - Includes your choice of Series 475-FM Manometer, two A-303 static
pressure tips, two 9 ft. lengths 3/16" I.D. rubber tubing, no. 166-6-CF Pitot tube, A-397 step drill, A-532 air velocity
slide chart and instruction bulletin H-11, all packed in a tough, molded plastic carrying case with die cut foam
liner.To order this kit click here
