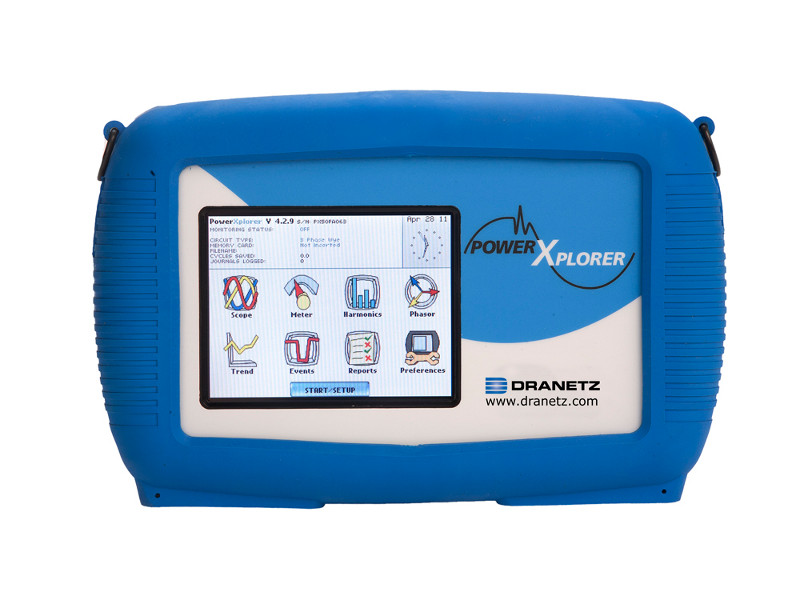

Dranetz Power Xplorer PX5 Power Quality Analyzer

Dranetz Power Xplorer PX5 Power Quality Analyzer

The Power Xplorer integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The unique measurement capabilities of the Power Xplorer include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize voltage harmonics, non-sinusoidal and unbalanced systems.

• Eight channels, 4 voltage & 4 current
• Intuitive color touch screen
• Light weight — About 4 pounds, 2 kg — with rugged rubber boot
• AC/DC applications
• Samples at 256 samples/cycle
• Independent voltage & current triggering, cross triggering
• High-speed sampling and data capture (1 microsecond/channel)
• Oscilloscope-like high speed transient detection (Dranetz 658-like and BMI-8800 like)
• Detailed event characterization of RMS variations and transients
• THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
• Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
• Remote communications—RS-232, Ethernet or USB
• Battery or AC mode
• Built in UPS battery with external charger
• Available with up to 4GB Compact Flash Memory
• Available languages — English, French, Italian, German, Spanish, Swedish, Polish, Thai, Korean, Finnish, Japanese, Chinese (Traditional and Simplified)
• DRAN-VIEW enabled (Windows 2000, XP, Vista, 7)
• Complies with IEEE 1159, IEEE 519, IEEE 1453
• Complies with IEC 61000-4-30 Class A and EN50160
• Measures flicker according to IEC 61000-4-15; measures electrical harmonics according to IEC 61000-4-7

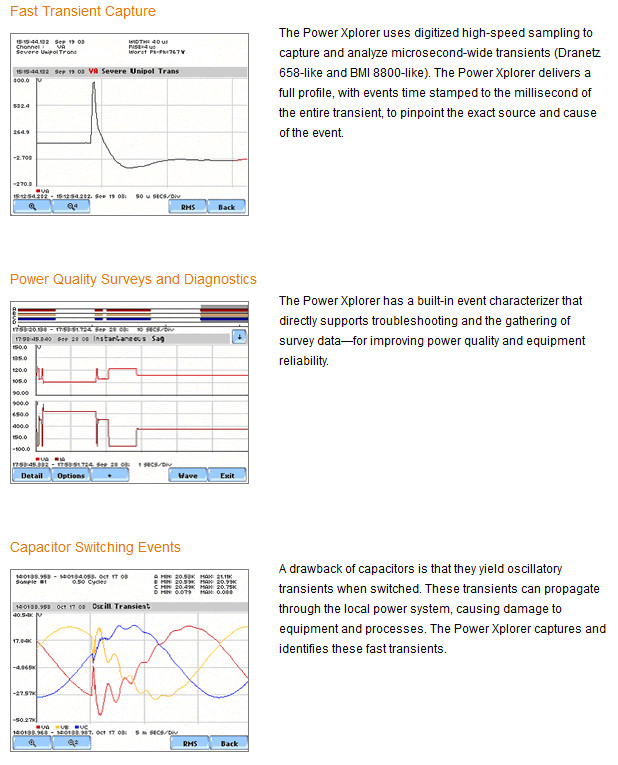

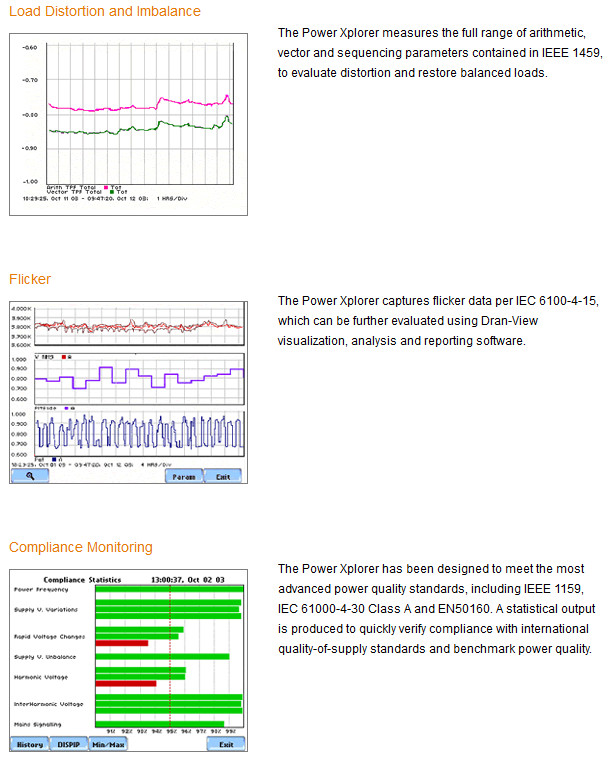

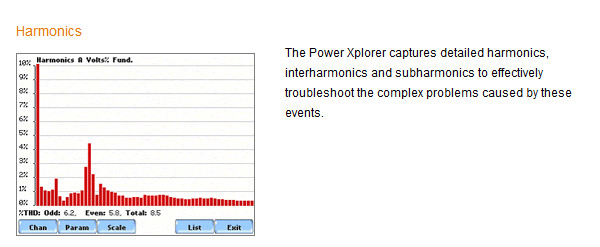

Applications







Technical Specifications

Measured Parameters

• (4) differential inputs, 1-600 Vrms, AC/DC, 0.1% rdg + 0.05% FS, 256 samples/cycle, 16 bit ADC
• (4) inputs with CTs 0.1-6000 Arms CT-dependent, AC/DC, 0.1%rdg + CTs, 256 samples/cycle, 16 bit ADC
• 1 MHz High Speed Sampling, 14 bit ADC, 1% FS
• Frequency Range, 10m Hz resolution, 15-20 Hz, 45-65 Hz, or 350-450 Hz
• Phase Lock Loop - Generator tracking
• Phase Lock Loop - Standard PQ mode

Monitoring/Compliance

• IEEE 1159
• IEC 61000-4-30 Class A
• EN50160 Quality of Supply
• Current Inrush / Energization
• Voltage Fault recording
• Long Term Monitoring
• Continuous Data Logging w/min/max/avg

Power Quality Triggers

• Cycle-by-cycle analysis
• 256 samples/cycle; 1/2 cycle RMS steps (1)
• L-L, L-N, N-G RMS Variations: Sags/swells/interruptions)
• RMS Recordings V&I (32 pre-fault, 10K post-fault cycles)
• Waveshape Recordings (2/6/2 cycles)
• Low and Medium Frequent Transients - V&I
• High Frequency Transients - V&I, 3% FS trigger (1)
• Harmonics Summary Parameters
• Cross trigger V & I channels
• RMS Event Characterization (IEEE or IEC)
• Transient Event Characterization (1)

Distortion/Power/Energy

• W, VA, VAR, TPF, DPF, Demand, Energy, etc.
• IEEE 1459 Parameters of distorted and unbalanced
• Harmonics/Interharmonics per IEC 1000-4-7
• THD/Harmonic Spectrum (V,I,W) to 63rd
• TID /Interharmonic Spectrum (V,I) to 63rd
• Flicker per IEC 1000-4-15 (Pst,Plt,Sliding Plt)
• Crest Factor, K Factor, Transformer Derating Factor, Telephone Interference Factor
• Unbalance (max. rms deviation) & sequencing components
• 5 User Spec Harmonics or Signaling Frequency
• Vector/Arithmetic/Coincident Parameters

Available Languages

• English, French, Italian, German, Spanish, Swedish

General Specifications

• Size (HxWxD): 12" x 2.5" x 8" (30cm x 6.4cm x 20.3 cm)
• Weight: 4.2 pounds (1.9 kg)
• Operating Temperature: 0 -50 (32 to 122 )
• Storage Temperature: -20 to 55 (4 to 131 F)
• Humidity: 10 to 90% non-condensing
• System Time Clock-Crystal controlled-1 second resolution
• Charger /Battery Eliminator: 90-264 VAC 47-63 Hz
• Display: LCD color touch screen
• Memory options (must have one): 256M removable compact flashcard

Dranetz PX5 Data Sheet
