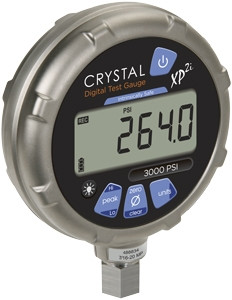

Crystal Engineering XP2i Digital Pressure Gauge

Ultra rugged, intrinsically safe, digital test gauge with 0.1% of reading accuracy.

• Marine grade enclosure resists corrosion
• Accuracy not affected from -10 to 50°C
• Replaces 5 or more digital test gauges
• Fast pressure safety valve (PSV) mode
• Define custom pressure units
• Shift everyday wear to replaceable CPF adapter
• Easy to use-No Menu. No Manual? No Problem!

With the optional DataLoggerXP upgrade:

• Record 32 000 data points
• Battery-optimizing, Ultra Low Power (ULP) Mode
• Over an entire year of continuous recording time
• Now available on the Dual-Line Display XP2i

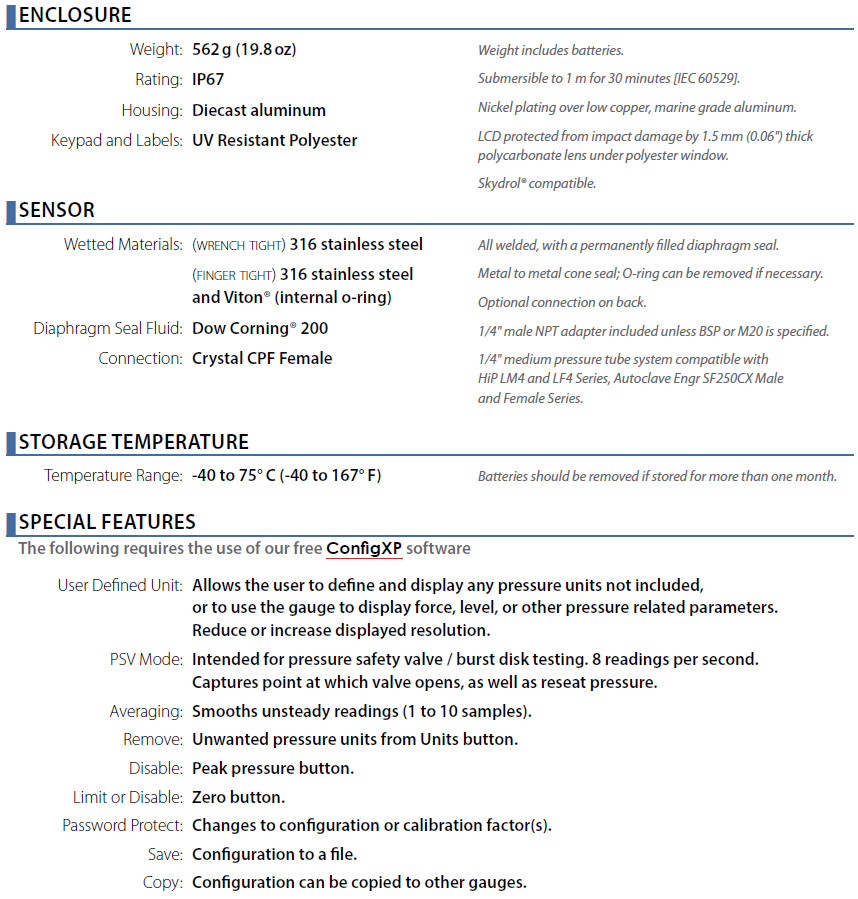

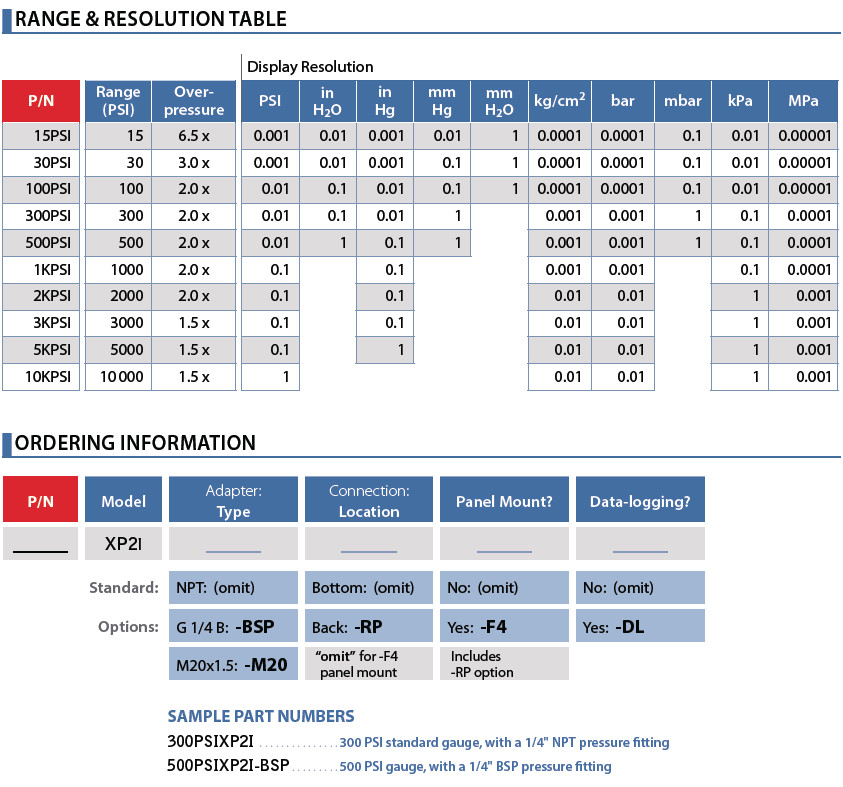

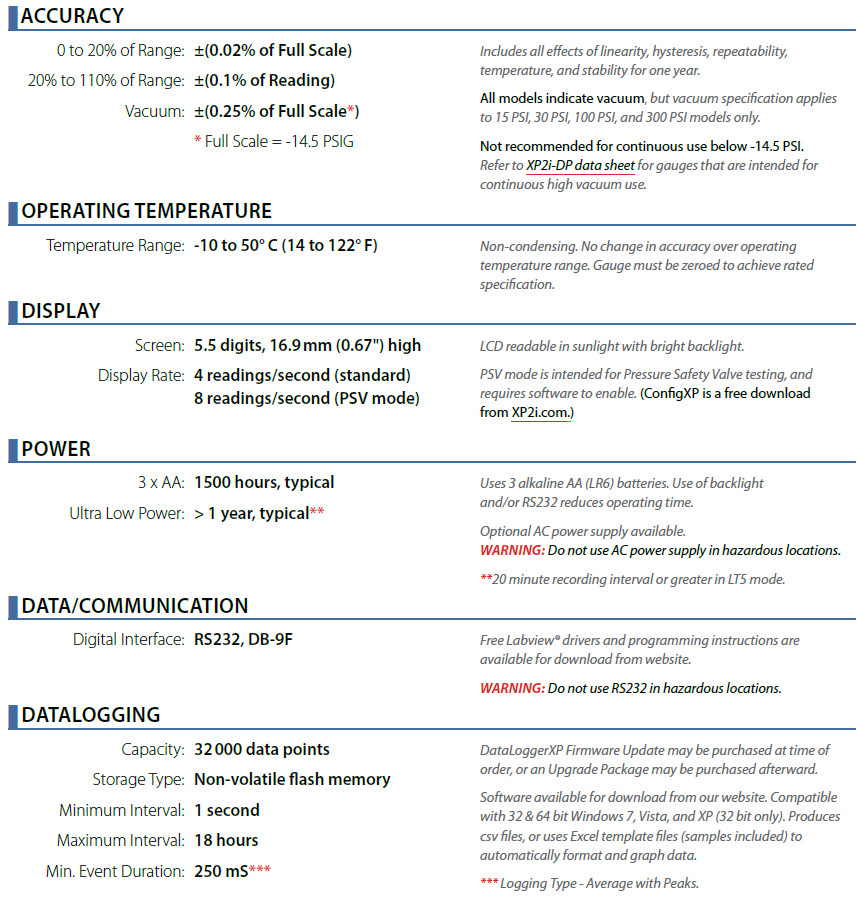

Technical Specifications




Optional Pressure Pump Systems

	A includes System A (pneumatic) 0 to 30 psi
	AH includes System A (pneumatic) 0 to 580 psi
	B includes System B (pneumatic) -25 inHg to 30 psi
	BH includes System B (pneumatic) -25 inHg to 580 psi
	C includes System C (oil) 0 to 3,000 psi
	CH includes System C (oil) 0 to 5,000 psi
	DO includes System D (oil) 0 to 5,000 psi
	DW includes System D (water) 0 to 5,000 psi
	EO includes System E (oil) 0 to 10,000 psi
	FOV includes System F (oil) 0 to 15,000 psi
	FWV includes System F (water) 0 to 15,000 psi
	GO includes System G (oil) 0 to 15,000 psi
	GW includes System G (water) 0 to 15,000 psi
	HO includes System H (oil/pneumatic) -25 inHg to 580 psi and 0 to 5,000 psi

Crystal Engineering XP2i Data Sheet
