Crystal Engineering M1 Digital Pressure Gauge
|
Item Number: M1
Manufacturer: Crystal Engineering (Ametek)
Part Number: M1

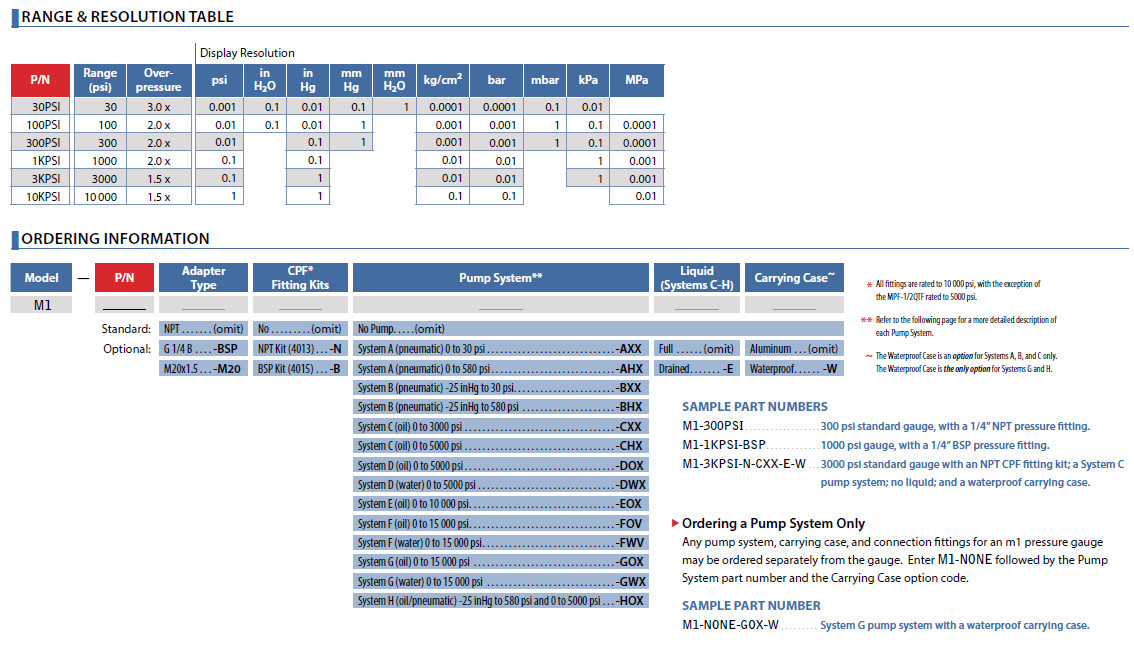

Product Options
* denotes required field
Pressure Range Selection*
You must select an option for 'Pressure Range Selection'.
Adaptor Type Selection*
You must select an option for 'Adaptor Type Selection'.
Optional CPF Fitting Kits Options
Optional Pump System Selection
Liquid (Optional Pump Systems C-H) Options
Carrying Case for Optional Pump System Options
* Whole number only
|
|

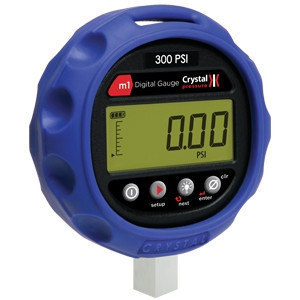

Crystal Engineering M1 Digital Pressure Gauge
The M1 digital pressure gauge maintains 0.2% of reading accuracy from -10˚ to 50˚C. Accuracy is not affected by dropping, over-pressure, vibration, temperature, or rapid pressure change. Available as a 30 psi digital pressure manometer.
One wide range M1 digital pressure gauge replaces up to five 0.25% mechanical gauges with 0.2% of reading accuracy.
Features
- 2-Year recommended calibration interval
- Battery life up to 3 years continuous use
- Bright backlit display
- Easy to read extra large numbers
- Protective boot included
- Shifts everyday wear to replaceable CPF adapter
Applications
*Not recommended for oxygen service
- Replaces 0.25% mechanical gauges
- Pressure regulator testing
- General pressure test and measurement
- Process gauge in high vibration / pulsation environment
Every m1 Digital Test Gauge comes with an ISO 17025 calibration report - NIST traceable, A2LA accredited, internationally recognized by ILAC - with test data at 5 temperatures, proving our gauges meet specifications throughout their full temperature range.

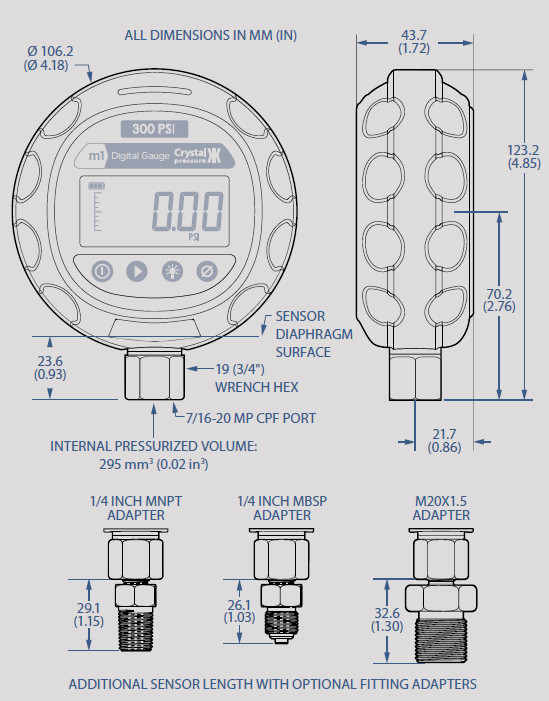

Dimensions

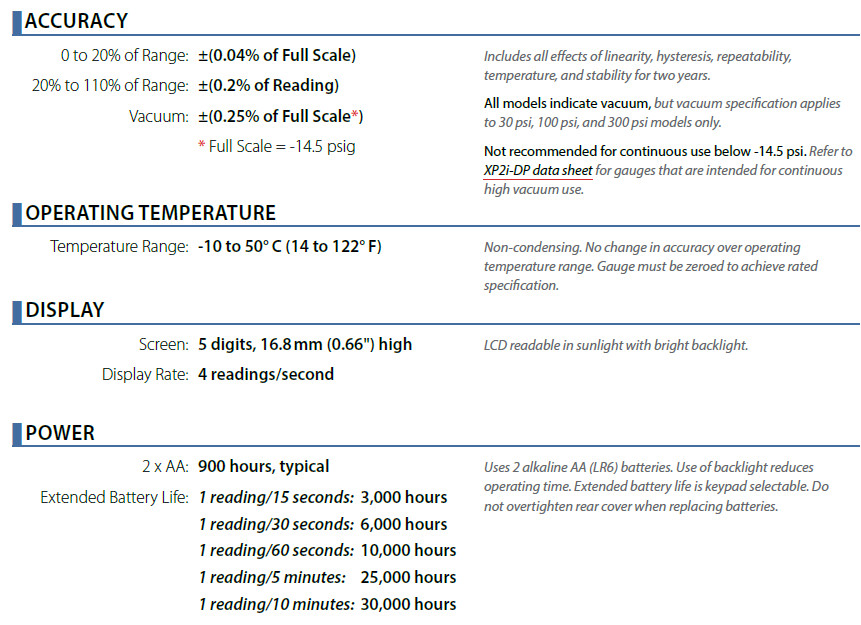

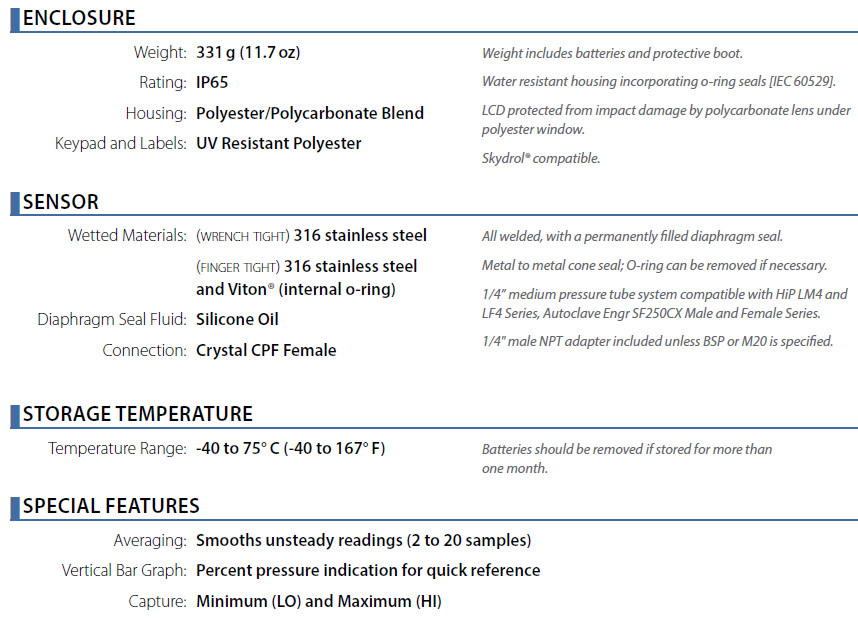

Technical Specifications
|
Product Reviews
|
|
