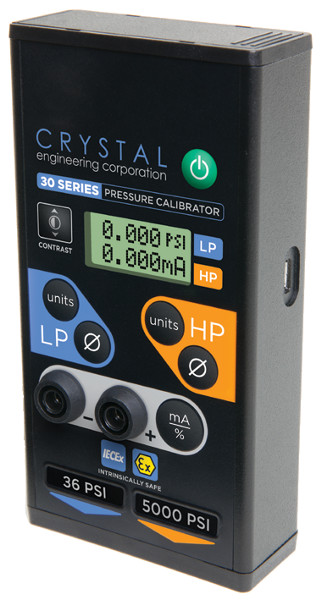

Crystal Engineering IS31 Single Sensor Digital Pressure Calibrator

The 30 Series is a wide range pressure calibrator that fits easily into your shirt pocket.
Its internal sensors give you 0.05% of reading accuracy and resist damage from overpressure.

• Wide pressure range can measure vacuum and pressure up to 5000 psi (300 bar)
• Indicates milliamps to calibrate transmitters
• Ultra compact and light
• Very easy to learn and use
• Battery operated
• Brings laboratory accuracy to outdoor field conditions

Applications

*Not recommended for oxygen service.

• Deadweight tester replacement
• Flow computer calibration
• Gauge calibration
• Pressure regulator adjustment
• Pressure transmitter calibration

Every 30 Series Digital Pressure Calibrator comes with a factory test report with test data at 5 temperatures, proving our gauges
meet specifications throughout their full temperature range.

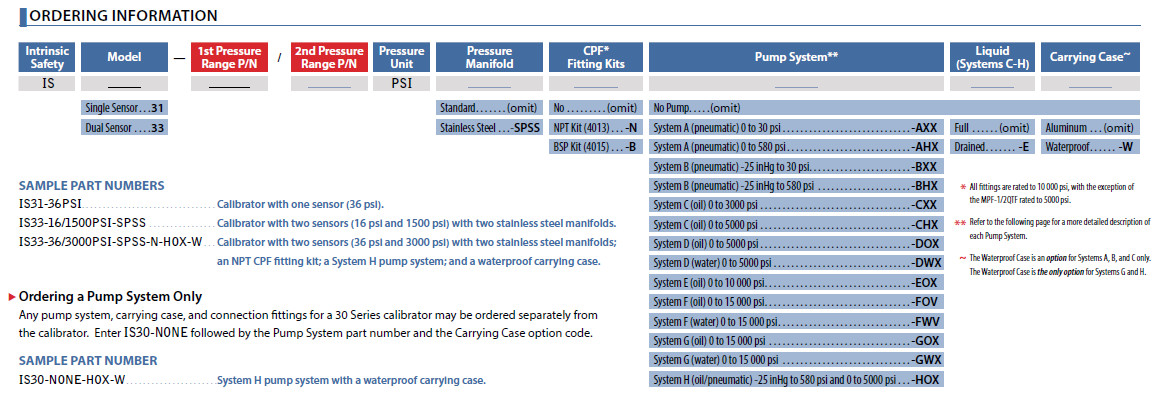

	A includes System A (pneumatic) 0 to 30 psi
	AH includes System A (pneumatic) 0 to 580 psi
	B includes System B (pneumatic) -25 inHg to 30 psi
	BH includes System B (pneumatic) -25 inHg to 580 psi
	C includes System C (oil) 0 to 3,000 psi
	CH includes System C (oil) 0 to 5,000 psi
	DO includes System D (oil) 0 to 5,000 psi
	DW includes System D (water) 0 to 5,000 psi
	EO includes System E (oil) 0 to 10,000 psi
	FOV includes System F (oil) 0 to 15,000 psi
	FWV includes System F (water) 0 to 15,000 psi
	GO includes System G (oil) 0 to 15,000 psi
	GW includes System G (water) 0 to 15,000 psi
	HO includes System H (oil/pneumatic) -25 inHg to 580 psi and 0 to 5,000 psi

Crystal Engineering 30 Series Data Sheet
