CAL Controls 9500P Single Loop Temperature Controller
|
Item Number: CAL9500P
Configuration: 95-00-1P-A-000
Manufacturer: CAL Controls
Part Number: CAL9500P
Product Options
CAL 9500P Controller Output 1/2 Option
CAL 9500P Controller Output 3
CAL 9500P Controller Input Option
CAL 9400 Controller Communication Option
CAL 9500P Controller Calibration Option
* Whole number only
|
|

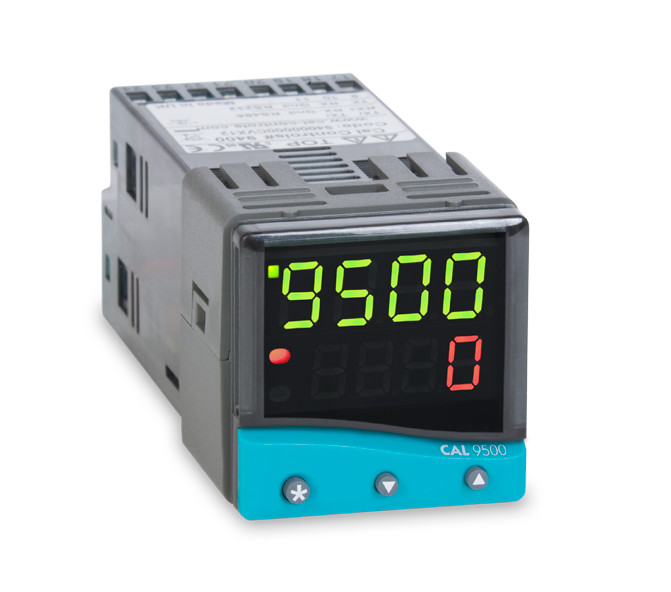

CAL Controls 9500P Single Loop Controller
The CAL 9500P 1/16 DIN temperature controller has a programmer function with up to 31 programs (126 segments max). It is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications. Styled for laboratory or industrial applications CAL9500P has an impact resistant smoked fascia with rubberized buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimizes overshoot. The integrated programmer function is ideal for applications requiring temperature profile control.
The CAL 9500P 1/16DIN programmable temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Styled for laboratory or industrial applications CAL9500P has an impact resistant smoked fascia with rubberised buttons with positive feedback.
PID tuning is simple and efficient whilst the unique dAC function minimises overshoot.
The integrated programmer function is ideal for applications requiring temperature profile control.
The CAL 9500P 1/16DIN programmable temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications.
Styled for laboratory or industrial applications CAL9500P has an impact resistant smoked fascia with rubberised buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimises overshoot. The integrated programmer function is ideal for applications requiring temperature profile control.
Features
- 2 x 4 digit LED display with 2 output LEDs
- Easy-to-use auto-tuning
- Simple menu-driven configuration
- Programmer function – 31 programs of up to 126 segments (fixed memory)
- IP66 protection
- CALgrafix configuration & data-logging software

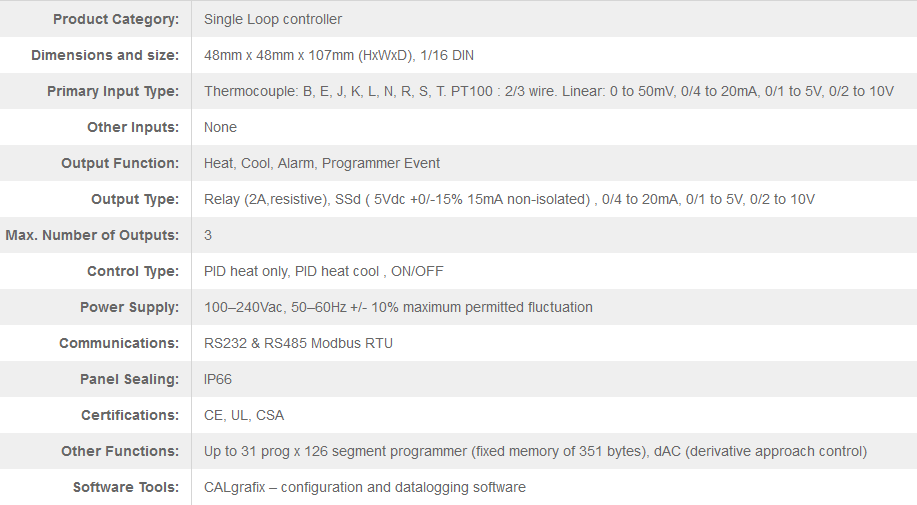

Technical Specification
|
CALgrafix is cost-effective process monitoring and controller configuration software that provides added value to using CAL’s range of process and temperature controllers.
| |
