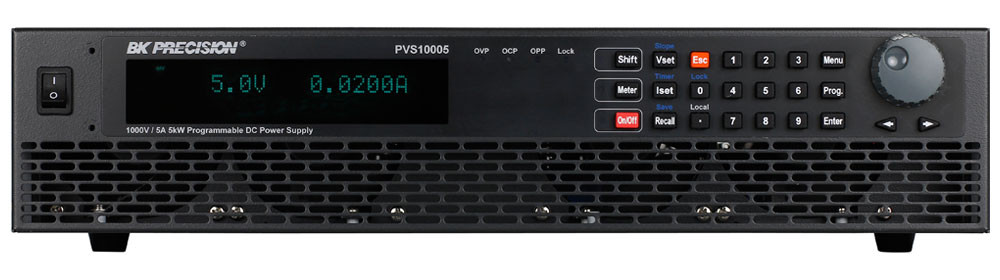

BK Precision PVS60085 Programmable DC Power Supply
|
Item Number: PVS60085
Manufacturer: BK Precision
Part Number: PVS60085
* Whole number only
|
|
BK Precision PVS60085 Programmable DC Power Supply
The PVS60085 output power ups to 5.1 kW, incredible regulation, and quick transient response time qualities in an industry-heading 2u bundle. The PVS60085 power supply provides high-programming determination, different remote interfaces for test systems, and a built-in solar array simulator function to generate photovoltaic I-V curves. PVS60085 is appropriate for both bench use and ATE systems integration, R&D, design verification, production test, and high voltage testing.
Features
- Compact, high power density, 2U package
- Output up to 1000V/5A (PVS10005) and 600V/8.5A (PVS60085 & PVS60085MR)
- Convenient single-phase AC input configuration
- Bright VFD display
- High voltage and current resolution of 100 mV, 0.1 mA (PVS10005) or 10 mV, 0.2 mA (PVS60085 & PVS60085MR)
- Fast transient response time of ≤ 0.5 ms
- Adjustable voltage and current slope (rise and fall times)
- List mode: 9 user-defined programs with up to 100 programmable steps each
- Built-in SAS function for storage of up to 16 I-V curves with Voc, Isc, Vmp, and Imp parameters and 1024-point table
- Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
- External analog programming and monitoring interface
- LabVIEW driver and softpanel available for remote control, test sequence generation, and datalogging

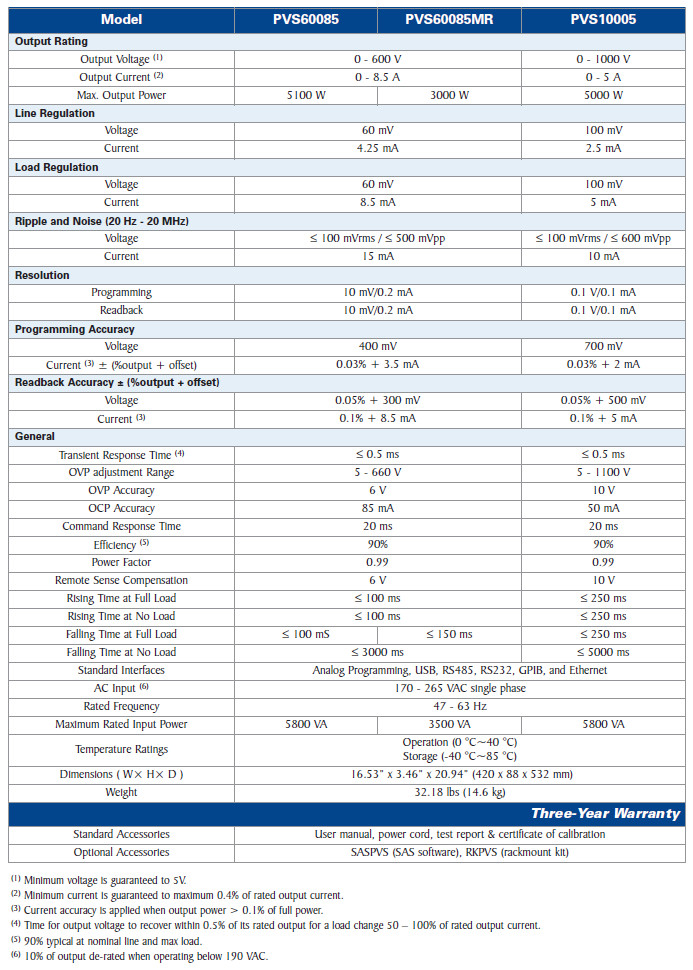

Technical Specifications
|
The BK Precision PVS60085MR output voltage is 600 V, output current is 8.5 A, and the output power is 3000 W.
|
The BK Precision PVS10005 output voltage is 1000 V, output current is 5 A, and the output power is 5000 W.
|
