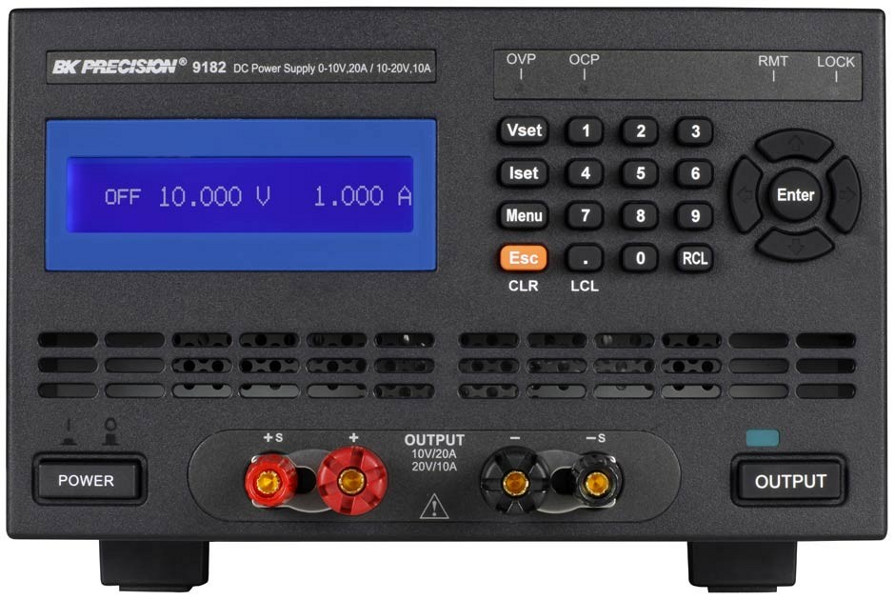

BK Precision 9182 Dual Range DC Power Supply
|
Item Number: 9182
Manufacturer: BK Precision
Part Number: 9182
* Whole number only
|
|
BK Precision 9182 Dual Range DC Power Supply
The 9170/9180 series programmable DC power supplies deliver clean, stable and precise output power due to the supplies’ exceptionally low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics.
These power supplies offer SCPI IEEE488.2 compliant USB (standard), RS232, RS485, GPIB and LAN interfaces, combined with front and rear panel output and remote sense terminals to facilitate test system development and integration. The LAN interface includes a built-in web server that allows users to configure, control, or monitor basic power supply settings.
In addition to a full numerical keypad for convenient data entry, this series also provides unique features not typically found in comparable power sources, such as LED test modes, modular interface card slots, automatic range selection, and an optional 8-bit bidirectional digital I/O interface.
Features
- Single and dual output models with up to 210W output power
- Exceptionally low ripple and noise
- Front and rear panel output
- List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
- Overvoltage/overcurrent/overtemperature protection (OVP/OCP/OTP) and key-lock function
- Fast transient response time of < 50 us for most models
- Programmable voltage and current slew rates
- Standard USB interface
- 4 optional types of modular interface cards add LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232 functionality
- LabVIEW (TM) drivers available
Technical Specifications
|
BK Precision 9172 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 105W than a standard single range power supply. 0/35VDC at 0/3 Amps; 0/70 V at 0/1.5 A
|
BK Precision 9171 Dual range power supplies offers wider voltage and current ranges within its maximum power rating of 100W than a standard single range power supply. 0/10VDC at 0/10 Amps; 0/20 V at 0/5 A
|
BK Precision 9181 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 144W than a standard single range power supply. 0/18VDC at 0/8 Amps; 0/36 V at 0/4 A
|
BK Precision 9183 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 210W than a standard single range power supply. 0/35VDC at 0/6 Amps; 0/70 V at 0/3 A
|
BK Precision 9185 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 210W than a standard single range power supply. 0/400VDC at 0/5 Amps; 0/600 V at 0/0.35 A
|
BK Precision 9184 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 200W than a standard single range power supply. 0/100VDC at 0/2 Amps; 0/200 V at 0/1 A
|
BK Precision 9174 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 210W than a standard single range power supply. 0/35VDC at 0/3 Amps; 0/70 V at 0/1.5 A
|
BK Precision 9173 dual range power supplies offers wider voltage and current ranges within its maximum power rating of 200W than a standard single range power supply. 0/10VDC at 0/10 Amps; 0/20 V at 0/5 A
|
