BK Precision 9130 Triple Output Programmable DC Power Supply

Our Price: $935.00

Item Number: 9130

Manufacturer: BK Precision

Part Number: 9130

Product Options

* denotes required field

Calibration Options*

Calibration Not Included

Standard Calibration (+ $65.00)

ISO 17025 Accredited Calibration Certification (+ $85.00)

Quantity:

Email this page to a friend

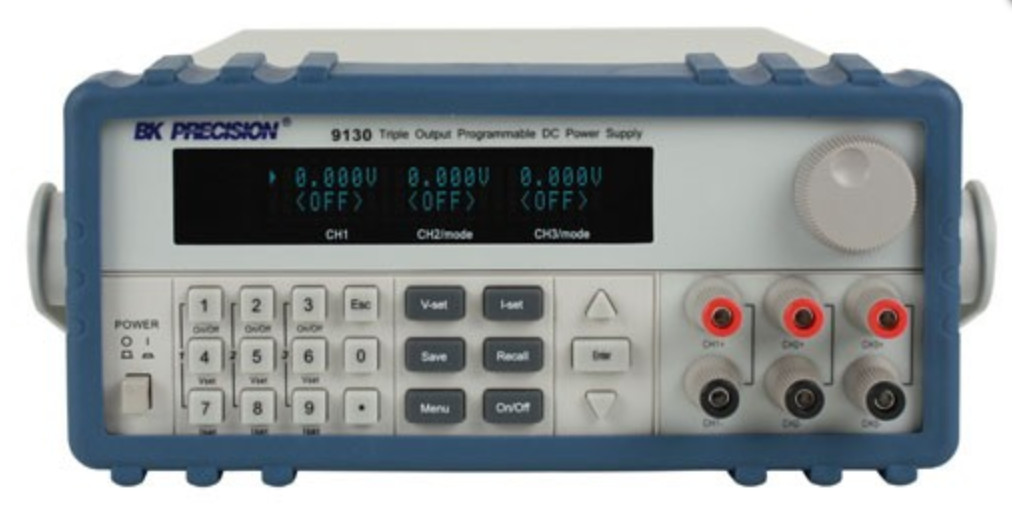

BK Precision 9130 Triple Output Programmable DC Power Supply

The 9130 is a fully programmable triple output DC Power Supply delivering 0-30V/0-3A on 2 outputs and 0-5V/0-3A on 1 output. Each output is fully floating and outputs can be adjusted independently or connected in series or parallel to produce higher voltages or currents. The 9130 is ideally suited for applications in Electronic Test, Production and Service, where multiple independent DC supplies are required and bench space is at a premium.

Features

3 independent, fully programmable and electrically isolated outputs
Display & adjust Voltage and Current settings for all 3 channels simultaneously
Flexible output configuration: Operate in series or parallel tracking mode
SCPI compatible command set. Communicate via USB interface using the included USB to TTL Serial Converter cable
RS232 interface cable, converting from RS232 to TTL, is optional (order IT-E131)
OVP (Over Voltage) and OTP (Over Temperature) protection
Output on/off control
Excellent stability and regulation
Very compact foot print (rack mountable 2U x 1/2U)
Application Software for front panel emulation and simple test sequence generation included
50 memory locations for instrument state storage & recall

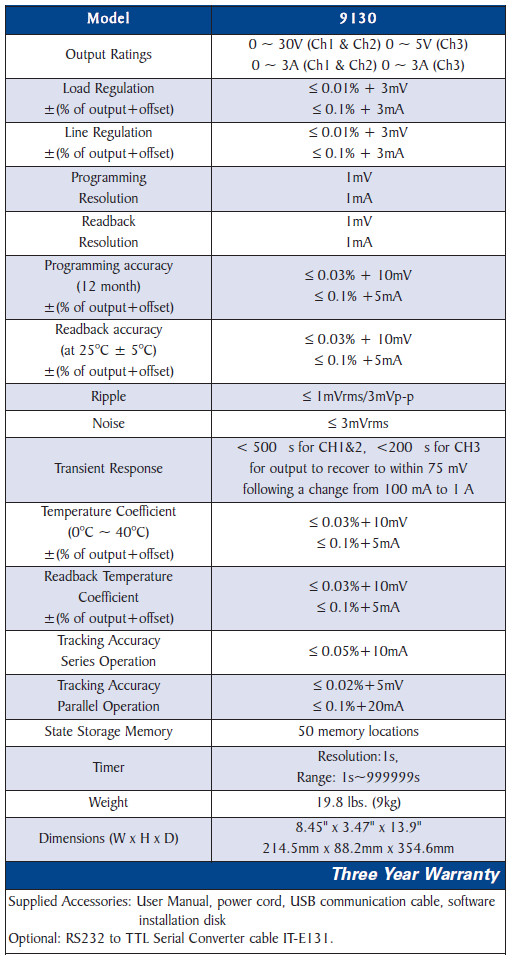

Technical Specifications

BK Precision 9130 Data Sheet
