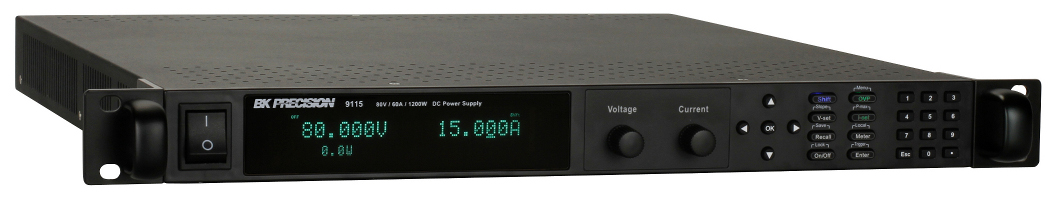

BK Precision 9115 Multi-Range Programmable DC Power Supply

Any 9115 series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands.

• Output rating up to 1200 W within 80 V/ 60 A (models 9115/9115-AT) or 150 V/ 30A (model 9116)
• Compact, high density, 1U rackmount form factor
• High programming and readback resolution of 1 mV/1 mA
• Adjustable voltage rise and fall times
• Sequence programming (list mode)
• Store and Recall up to 100 instrument settings
• Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands for remote control
• Analog interface with control and monitoring functions
• Remote sense
• Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
• Softpanel for remote control, test sequence generation and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators

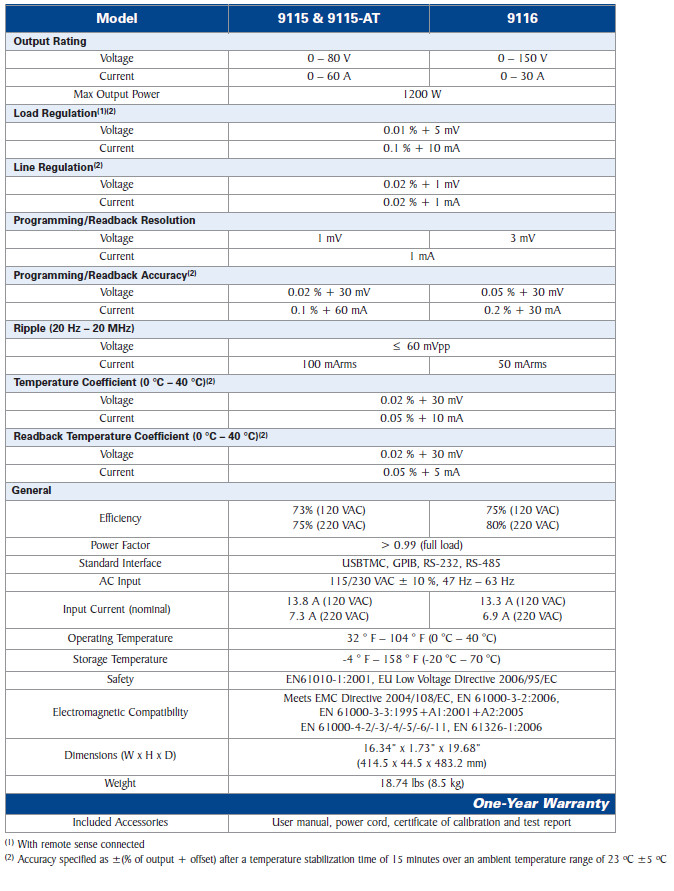

Technical Specifications

BK Precision 9115 Data Sheet
