BK Precision 4080B Arbitrary Function Waveform Generator
|
Item Number: 4080B
Manufacturer: BK Precision
Part Number: 4080B
* Whole number only
|
|
BK Precision 4080B Arbitrary Function Waveform Generator
The BK 4080B is an easy-to-use conventional arbitrary function generator capabilities with a true point-by-point AWG architecture to produce accurate and precise waveforms. The arbitrary waveforms have 14-bit amplitude resolution, 200 MSa/s sample rate, and large waveform memory up to 16,000,000 points. The 4080B waveforms can be output in continuous, triggered, gated, or burst modes. The 4080B can be remotely controlled using SCPI-compliant commands with an USB and GPIB. Broad features such as internal or external AM, FM, and FSK modulation alongside adaptable sweep capabilities and variable edge pulse generation make these generators suitable for a wide range of applications including electronic engineering, sensor simulation, and functional bench test.
Features
- 14-bit, 200 MSa/s, up to 16 M-point Arbitrary Waveform Generator
- Generate Sine waveforms up to 80 MHz, Square waveforms up to 60 MHz
- Color LCD display
- AM/FM/FSK modulation functions
- Linear and logarithmic sweep
- Programmable markers for precise triggering
- Store and recall up to 49 different instrument setups
- Standard USBTMC and GPIB (50 MHz and 80 MHz models only) interfaces
- SCPI-compliant command set
- Easy Closed case recalibration
- Built-in Short circuit protection for resistive and capacitive loads on outputs & overvoltage protection on inputs
- Simple integration with WaveXpress waveform editing software to send your waveform creations to the arbitrary waveform generator
Dual-channel models
- Both channels offer full functionality and all parameters can be set independently
- Synchronize the phase of both channels by the push of a button

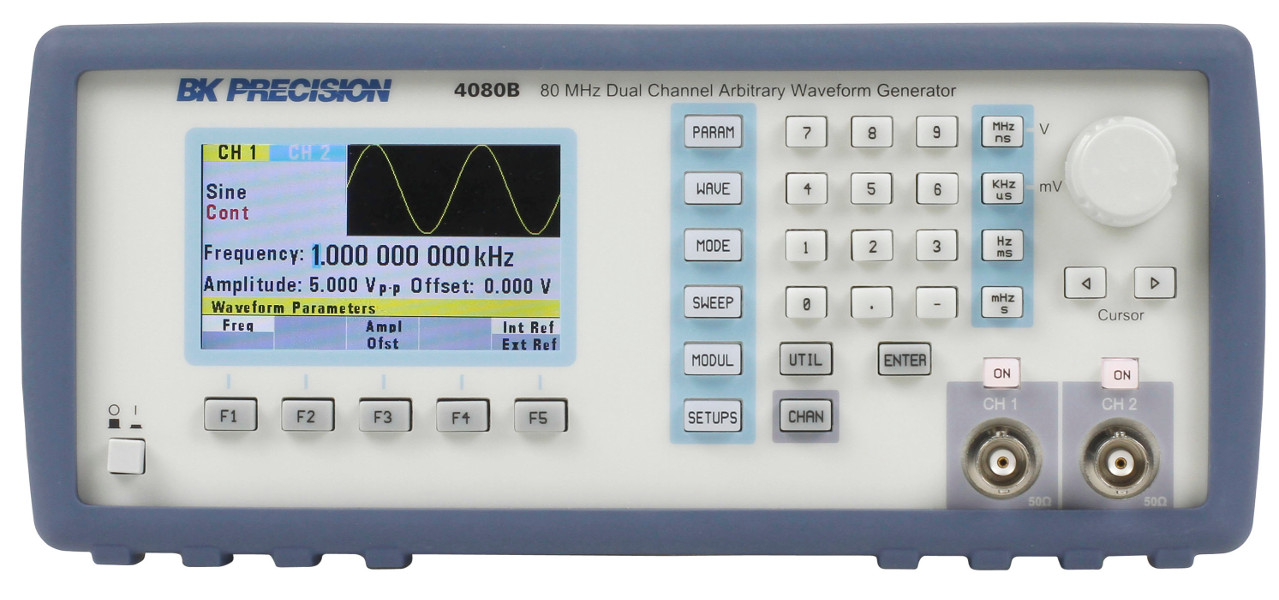

Front Panel
Rear Panel
WaveXpress software
Technical Specifications
| Model |
4075B |
4078B |
4076B |
4079B |
4077B |
4080B |
| Channels |
1 |
2 |
1 |
2 |
1 |
2 |
| Maximum frequency |
30 MHz |
50 MHz |
80 MHz |
| Waveforms |
| Standard |
Sine, Square, Triangle/Ramp, Pulse |
| Built-in arbitrary |
Sine, Triangle, Square, Noise, Ramp Up, Ramp Down, Sine(X)/X, Exponential Up, Exponential Down, Gaussian |
| User-defined arbitrary |
1 Mpts x 8 memory banks per ch |
4 Mpts x 8 memory banks per ch |
16 Mpts x 8 memory banks per ch |
| Operating Modes & Modulation Types |
| Operating modes |
Continuous, Triggered, Burst, Gated |
| Modulation types |
AM, FM, FSK |
| Sine |
| Frequency range |
1 μHz to 30 MHz |
1 μHz to 50 MHz |
1 μHz to 80 MHz |
| Resolution |
1 μHz, up to 12 digits |
| Amplitude flatness (relative to 1 kHz) |
| fOUT ≤ 1 MHz |
± 0.2 dB |
| fOUT ≤ 50 MHz |
± 1.0 dB |
| fOUT ≤ 80 MHz |
± 2.0 dB |
| Harmonic distortion (typical) |
| fOUT ≤ 100 kHz (10 Hz -100 kHz) |
-65 dBc |
| fOUT ≤ 5 MHz (100 kHz - 5 MHz) |
-45 dBc |
| fOUT ≤ 80 MHz (5 MHz - 80 MHz) |
-35 dBc |
| Spurious |
| fOUT ≤ 1 MHz (DC - 1 MHz) |
-60 dBc |
| fOUT < 20 MHz (1 MHz - 20 MHz) |
-50 dBc |
| Phase noise (fOUT =10 MHz) |
| 10 kHz offset |
-110 dBc/Hz |
| Square |
| Frequency range (Square) |
1 μHz to 30 MHz |
1 μHz to 50 MHz |
1 μHz to 60 MHz |
| Rise & Fall time |
< 5 ns (10% to 90%) at full amplitude into 50 Ω |
| Duty Cycle |
20% to 80% to 10 MHz,
40% to 60% to 30 MHz,
50% > 30 MHz |
| Asymmetry (50% duty cycle) |
1% of period ± 5 ns |
| Aberrations |
< 5% + 50 mV |
| Jitter |
< 70 ps rms (typical) |
| Ramp & Triangle |
| Frequency range |
1 μHz to 5 MHz |
| Resolution |
1 μHz, up to 12 digits |
| Symmetry |
1 uHz to 500 kHz: 0%-100%,
500 kHz to 2 MHz: 10%-90%,
50% > 2 MHz |
| Linearity |
<0.1% of peak output (1 μHz to 250 kHz) |
| Pulse |
| Frequency range |
1 mHz to 25 MHz |
| Resolution |
1 μHz |
| Pulse width |
20 ns minimum, 10 ns resolution, 999 s max |
| Variable edge time |
<5 ns (Fast setting) to pulse period (1) |
| Jitter |
< 50 ps rms (typical) |
| Arbitrary Waveform Characteristics |
| Waveform Length |
2 points to 1,048,576 points |
2 points to 4,194,304 points |
2 points to 16,777,216 points |
| Sampling Rate |
200 MSa/s, point execution rate adjustable from 5 ns – 100 s |
| Vertical Resolution |
14 bits (16,384 levels) |
| Noise |
Add 1% to 100% to output arbitrary waveform |
| Bandwidth |
100 MHz max (2-point waveform length) |
| Frequency |
Accuracy: ± 0.002%, Resolution: 4 digits or 1 ps |
| Rise and Fall Time |
< 5 ns (typical) |
| Jitter |
< 50 ps rms (typical) |
| Output Characteristics |
| Signal Output |
| Output Impedance |
50 Ω (typical) |
| Output Protection |
Protected against short circuit or accidental voltage applied to the main output connector (2) |
| Amplitude |
| Range |
10 mV to 10 Vp-p into 50 Ω |
| Resolution |
4 digits (9,999 counts) |
| Units |
Vpp, Vrms, or dBm |
| Accuracy |
± 1% ± 20 mV of the programmed output value from 1 V – 10 V,
± 1% ± 1 mV of the programmed output value from 50 mV – 999 mV |
| DC Offset |
| Range |
± 4.99 Vpk into 50 Ω |
| Resolution |
1 mV with 4 digits resolution |
| Units |
VDC |
| Accuracy |
± 1% ± 10 mV into 50 Ω |
| Frequency |
| Accuracy |
± 10 ppm for DDS waveform, ± 20 ppm for arbitrary mode |
| Phase |
-180 to +180 degrees with 0.1 degree resolution |
| Modulation Characteristics |
| Amplitude Modulation (AM) |
| Carrier |
Sine, Square, or Triangle |
| Source |
Internal, External |
| Internal Modulation |
0.01 Hz - 20 kHz |
| Depth |
0% to 100% |
| Frequency Modulation (FM) |
| Carrier |
Sine, Square, or Triangle |
| Source |
Internal, External |
| Internal Modulation |
0.01 Hz - 20 kHz |
| Deviation |
1 μHz to max frequency / 2 |
| Frequency-shift Keying (FSK) |
| Carrier |
Sine, Square, or Triangle |
| Source |
Internal, External |
| Rate |
≤ 1 MHz |
| Sweep Characteristics |
| Sweep Shape |
Linear and Logarithmic, up or down |
| Sweep Time |
10 ms to 500 s |
| Sweep Trigger |
Internal, External, Continuous, or Burst |
| Burst Characteristics |
| Waveforms |
Sine, Square, Triangle, Pulse, Arb |
| Count |
1-999,999 cycles |
| Trigger Source |
Manual, Internal, External |
| Inputs and Outputs |
| Trigger IN |
TTL Compatible
Maximum rate: 20 MHz
Minimum width: 20 ns
Input impedance: 10 kΩ nominal |
| Sync OUT |
TTL pulse at programmed frequency, 50 Ω impedance |
| Modulation IN |
5 Vp-p for 100% modulation
10 kΩ input impedance
DC to 50 kHz bandwidth |
| Marker OUT |
Positive TTL pulse, user programmable in arbitrary waveform, 50 Ω impedance |
| External Reference OUT |
10 MHz clock for synchronization, TTL, 50 Ω impedance |
| External Reference IN |
10 MHz from an external source, >1 kΩ impedance |
| Internal Trigger |
| Repetition |
1 μs to 100 s (0.01 Hz – 1 MHz) |
| Resolution |
4 digits |
| Accuracy |
± 0.002% |
| General |
| Display Resolution |
400 x 240 dots |
| Remote Interface |
USB (USBTMC-compliant) |
USB (USBTMC-compliant) and GPIB |
| Storage Memory |
50 full panel settings at power-off, including last working setup |
| Dimensions (W x H x D) |
213 mm x 88 mm x 300 mm (8.4” x 3.5” x 12”) |
| Weight |
3 kg (6.6 lbs) |
| AC Input |
100 - 240 V ±10%, 50 - 60 Hz ±5% (<40 VA) |
| Temperature |
0° C to +50° C (operating)
-20° C to +70° C (non-operating)
|
| Humidity |
95% RH, 0° C to 30° C
75% RH to 40° C
45% RH to 50° C |
| EMC |
According to EN55011 for radiated and conducted emissions |
| Electrical Discharge Immunity |
According to EN55082 |
| Safety Specifications |
According to EN61010, CE approved |
| Three-Year Warranty |
| Included Accessories |
Power Cord, Manual on CD, USB Type A to Type B Cable, Certificate of Calibration |
(1) Depending on pulse width.
(2) Output turns off automatically when an overload is applied. The instrument can tolerate shorts to ground indefinitely.
|
The BK Precision 4075B is an one channel function generator with an arbitrary waveform length of 1 Mpts. The Sine and Square frequency ranges are from 1 μHz to 30 MHz, other standard waveforms sine, square, and triangle are generated with a DDS chip.
|
The BK Precision 4076B is an one channel function generator with an arbitrary waveform length of 4 Mpts. The Sine and Square frequency ranges are from 1 μHz to 50 MHz.
|
The BK Precision 4078B is a two channel function generator with an arbitrary waveform length of 1 Mpts. The Sine and Square frequency ranges are from 1 μHz to 30 MHz.
|
The BK Precision 4077B is an one channel function generator with an arbitrary waveform length of 16 Mpts. The Sine frequency range is from 1 μHz to 80 MHz and the Square frequency range is from 1 μHz to 60 MHz.
|
The BK Precision 4079B is a two channel arbitrary waveform function generator waveform length of 4 Mpts. The Sine and Square frequency ranges are from 1 μHz to 50 MHz.
| |
