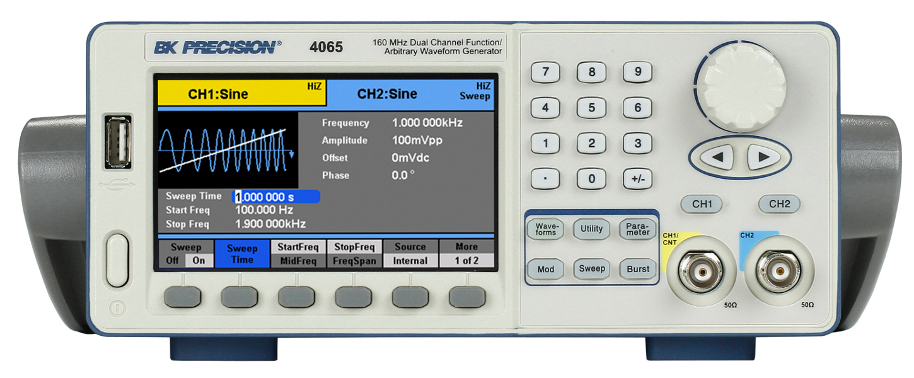

BK Precision 4063 80 MHz Dual Channel Function/Arbitrary Waveform Generator
|
Item Number: 4063
Manufacturer: BK Precision
Part Number: 4063
* Whole number only
|
|
BK Precision 4063 80 MHz Dual Channel Function/Arbitrary Waveform Generator
The 4060 Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset, and a high performance 14-bit, 500 MSa/s arbitrary waveform generator.
Features & Benefits
- 14-bit, 500 MSa/s, 512k point (Ch2 only) arbitrary waveform generator
- Two independent channels with one-button synchronization
- Generate sine waves up to 160 MHz
- Large 4.3-inch LCD color display
- Linear and logarithmic sweep
- AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
- Variable DC offset
- Adjustable duty cycle
- Internal/external triggering
- Gate and burst mode
- 36 built-in predefined arbitrary waveforms
- Store/recall up to 10 instrument settings and 32 user-defined arbitrary waveforms (8 x 512 kpts, 24 x 16 kpts)
- Built-in counter
- USB device port (USBTMC-compliant) and front panel USB host port
- GPIB connectivity with optional USB-to-GPIB adapter
- Arbitrary waveform editing software included
- Short circuit output protection

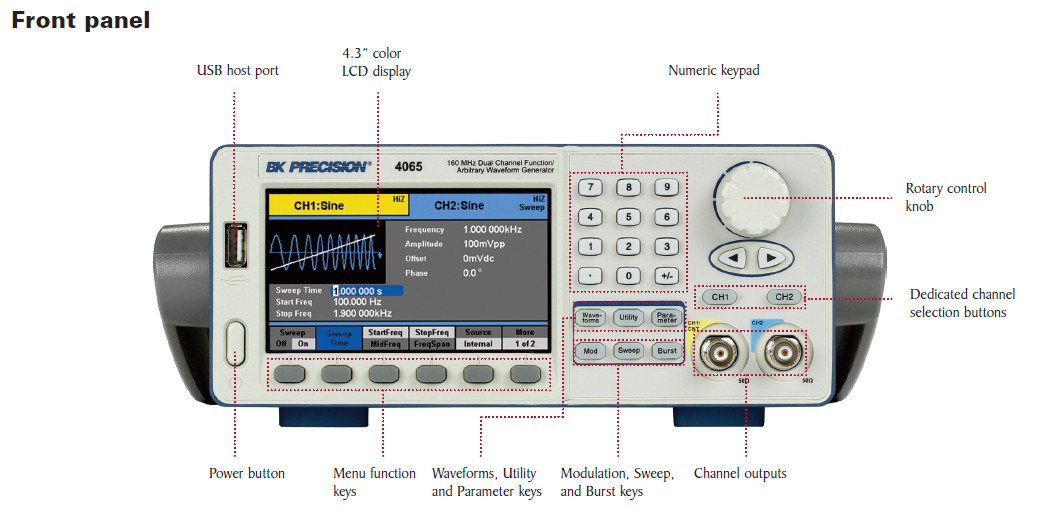

  Flexible operation
Dual channel output

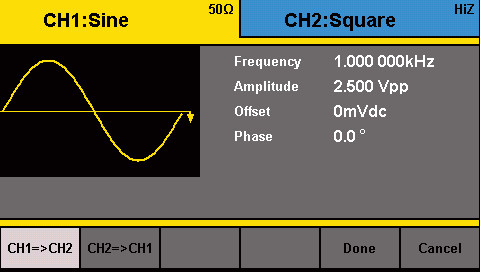

Save time with the 4060 Series’ two independent
channels to output synchronous signals. With a
push of a button, all waveform parameters can be
quickly copied between channels to set up
identical output signals. Phase between channels
can also be adjusted from the front panel.
|
Wide variety of modulation schemes
These instruments are capable of many different
types of modulation for various applications.

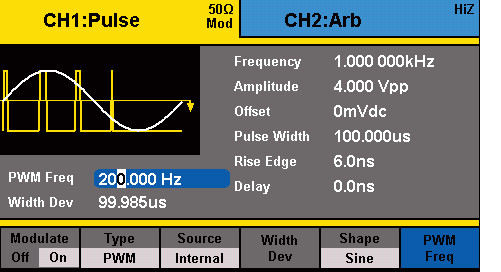

Modulate your waveforms with AM, DSB-AM,
FM, PM, ASK, FSK, and PWM modulation
schemes.
|

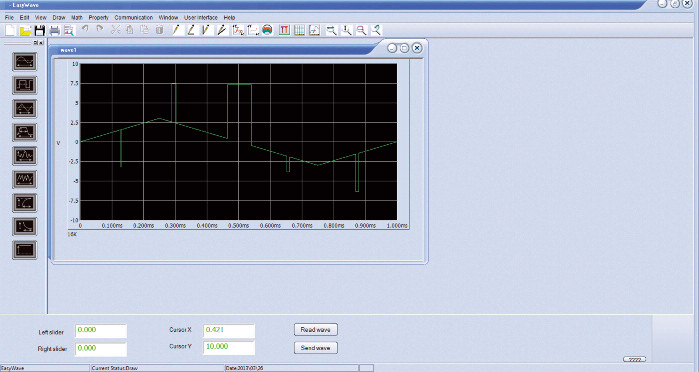

Generate waveforms with ease
The provided waveform editing software can be
used to create point-by-point arbitrary waveforms
via freehand or waveform math functions. A
standard USB interface on the rear panel allows
users to easily interface with a PC to load these
arbitrary waveforms into the instrument. The front
panel also offers a convenient USB host port for
connecting your USB flash drive to save/recall
instrument settings and waveforms. |

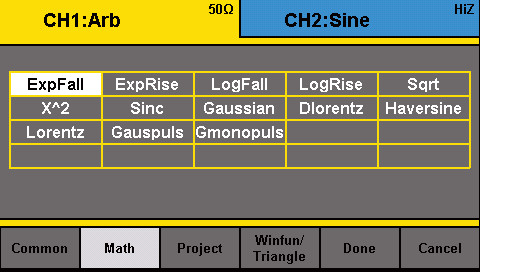

Arbitrary waveform generation
All models in the 4060 series provide non-volatile
memory to create, store, and recall up to 24
different 16-kpt arbitrary waveforms and up to 8
different 512-kpt arbitrary waveforms. Users can
also output any of the 36 built-in predefined
arbitrary waveforms.
|

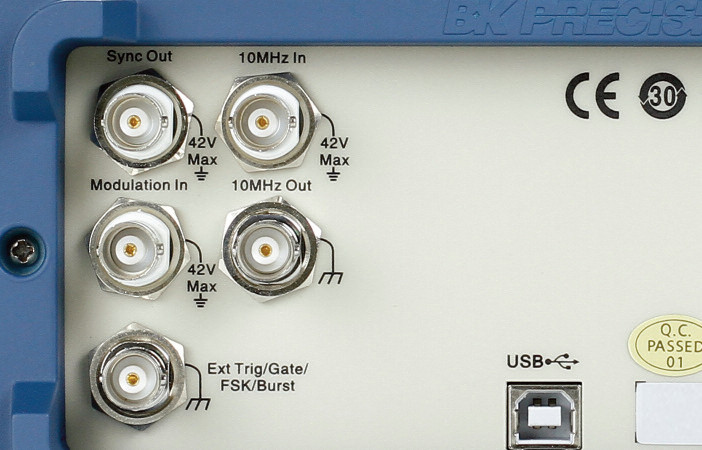

Synchronization and external triggering

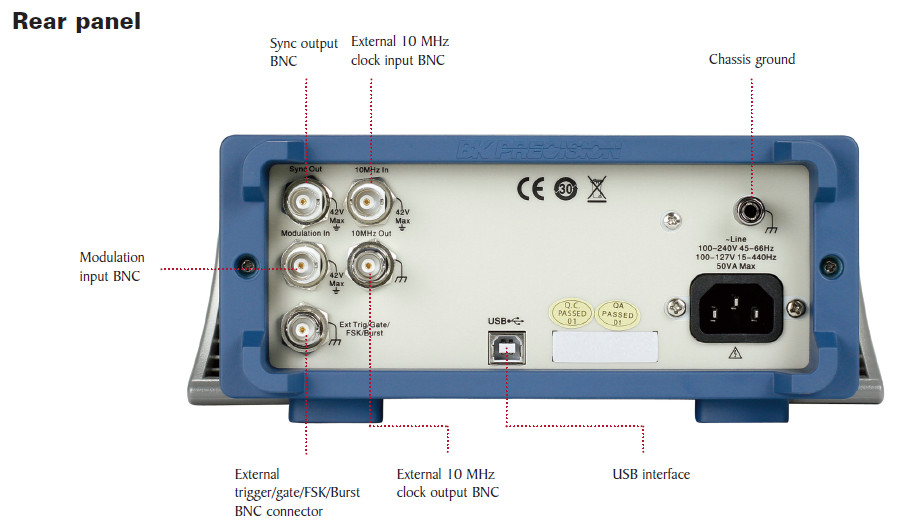

Use the external 10 MHz clock input and output
to synchronize your signals to a master time base.
The Sync output generates a TTL pulse for
synchronization to a channel’s frequency. An
external trigger BNC connector is also available
for inputting or generating a trigger signal. |

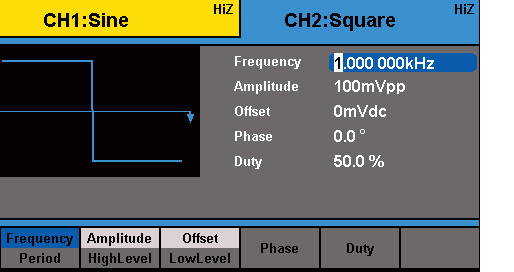

Easy-to-read color display
Large 4.3” color display shows the currently
selected channel and all relevant parameters.
|

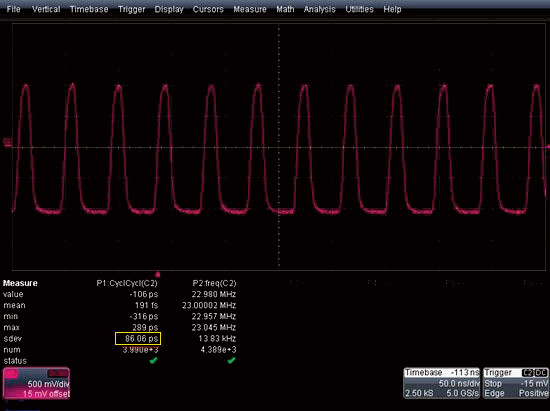

Advanced pulse generator
For applications requiring high signal integrity
and edge stability, the 4060 Series can
generate pulses with a low cycle-to-cycle
jitter of < 100 ps. |

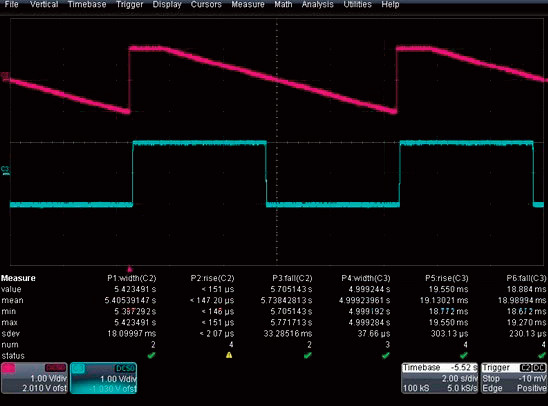

Capable of setting edge times within a large
range, the 4060 Series can generate pulses
with minimum rise/fall times of 6 ns and
maximum rise/fall times of 6 seconds. |

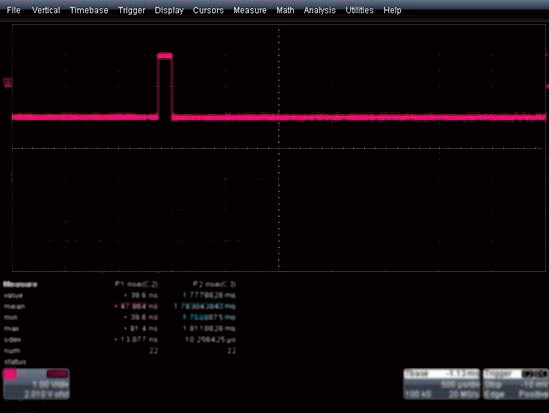

Unlike traditional DDS generators, the
4060 Series has the capability to output a
rapid pulse at very low frequencies. Duty
cycle can be set to as low as 0.0001%. |

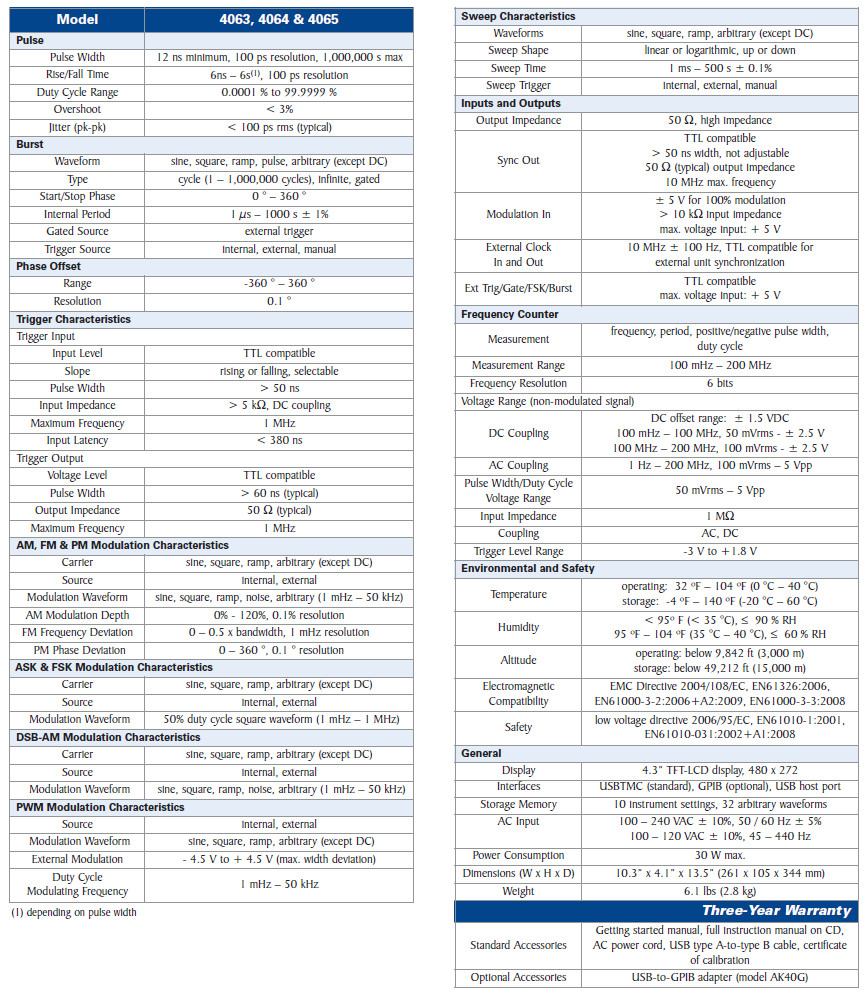

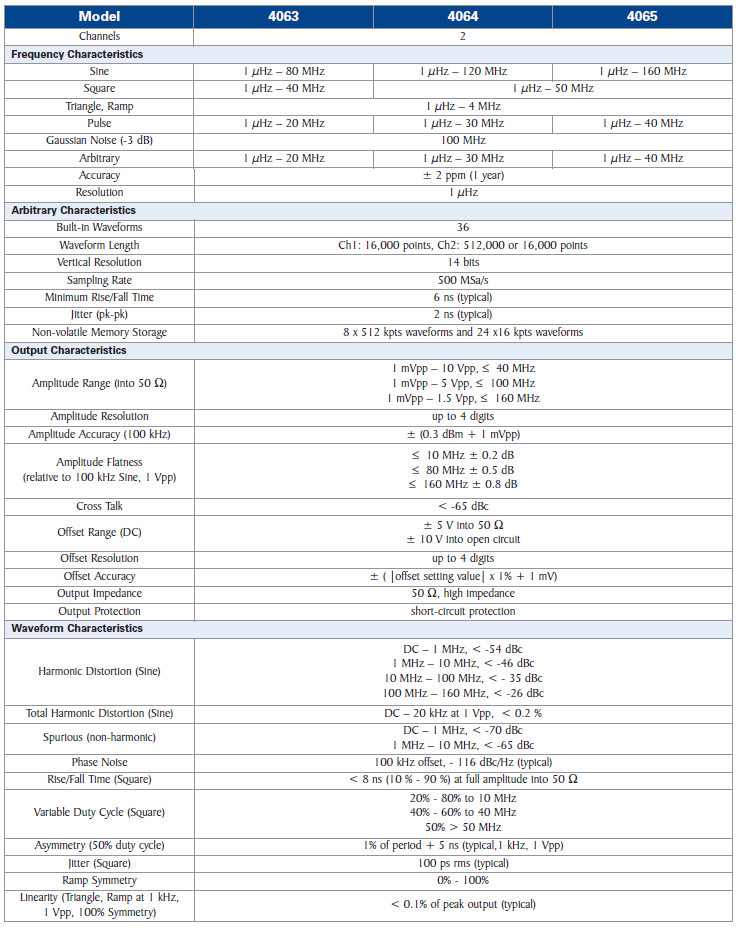

Technical Specifications  Optional Accessories
| Model |
Description |
| AK40G |
USB-to-GPIB adapter that provides GPIB connectivity through the
front USB host port on 4050 and 4060 series generators. The
GPIB and USB connectors conform to IEEE488.2 and USB 2.0
respectively. |
| CC-21 |
Standard BNC to alligator clip test leads. |
| CC510 |
General-purpose function generator kit that includes a range of
BNC and N Type coaxial interconnection for basic
function/arbitrary waveform generator use. |
| CC520 |
Deluxe function generator & counter kit that includes a complete
range of coaxial adapters and cables for general-purpose function,
pulse, signal and arbitrary waveform generators as well as
frequency counters. |
| TLFG |
General-purpose function generator test leads set that includes
BNC to BNC cables, BNC adapters, and test clips. |
|

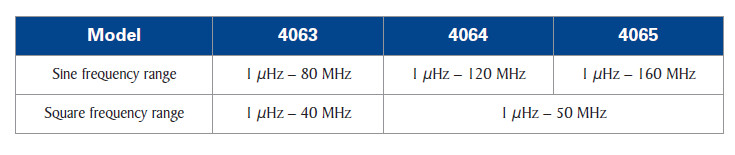

BK Precision 4064 sine frequency range is 1 μHz – 120 MHz and the square frequency range is 1 μHz – 50 MHz.
|
BK Precision 4065 sine frequency range is 1 μHz – 160 MHz and the square frequency range is 1 μHz – 50 MHz.
|
