BK Precision 4014B 12 MHz DDS Sweep Function Generator

Our Price: $475.00

Item Number: 4014B

Manufacturer: BK Precision

Part Number: 4014B

Product Options

* denotes required field

Calibration Options*

Calibration Not Included

Standard Calibration (+ $125.00)

ISO 17025 Accredited Calibration Certification (+ $185.00)

Quantity:

Email this page to a friend

BK Precision 4014B DDS Sweep Function Generator

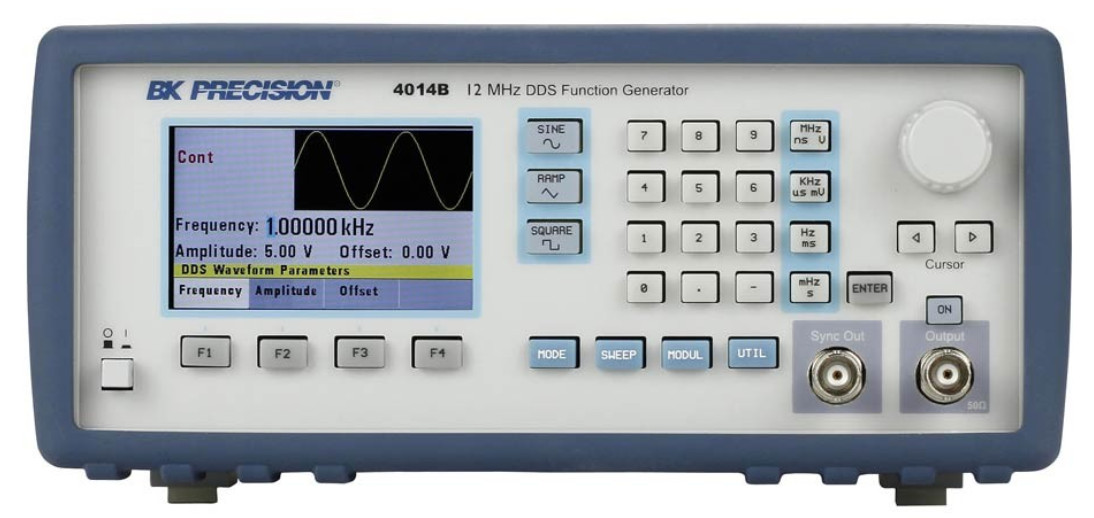

BK Precision 4014B 12 MHz DDS Sweep Function Generator

Models 4014B and 4040B are versatile sweep function generators, designed with a dual technology architecture combining direct digital synthesis (DDS) and a low-jitter square wave generator. These instruments generate sine, square, and triangle waveforms with high signal precision and stability. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.

Features

Sine, square, and triangle/ramp waveform generation
Bright color LCD display with waveform preview
Linear and logarithmic sweep
AM/FM modulation
Adjustable duty cycle
Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
Store and recall instrument settings
Output On/Off button
Internal/external triggering
Gate and burst mode (4040B only)
Built-in counter
USB interface with SCPI-compliant command set
Short circuit and overvoltage protection on all inputs and outputs

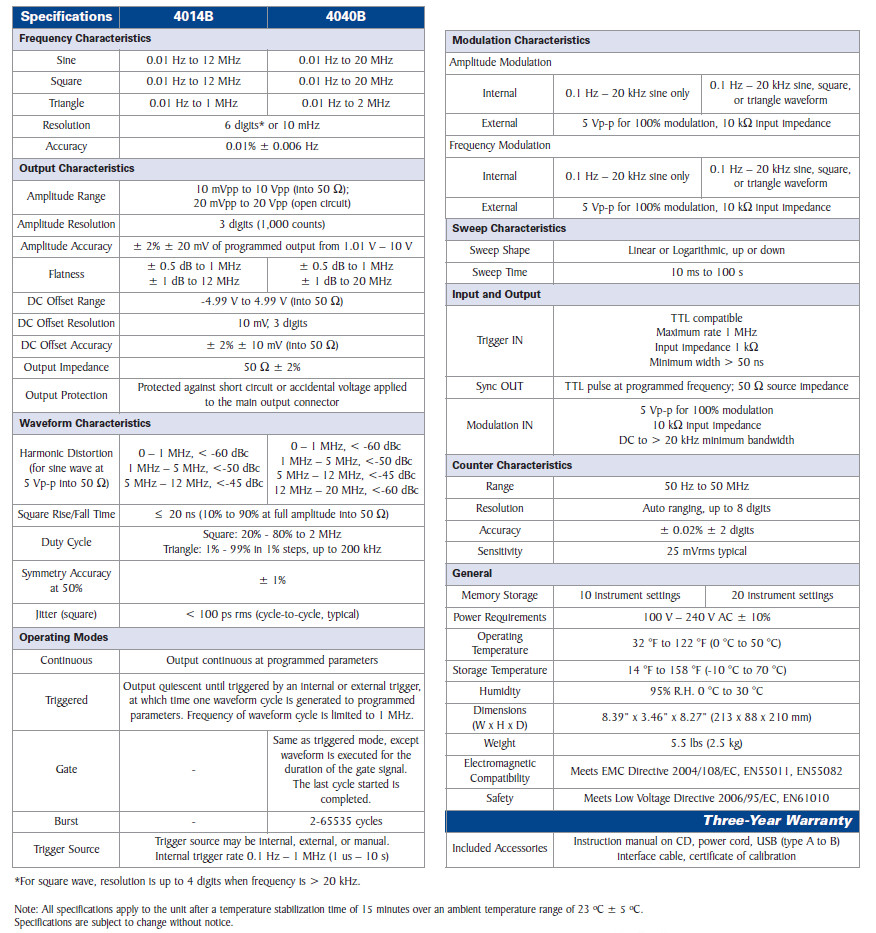

Technical Specifications

BK Precision 4014B Data Sheet
