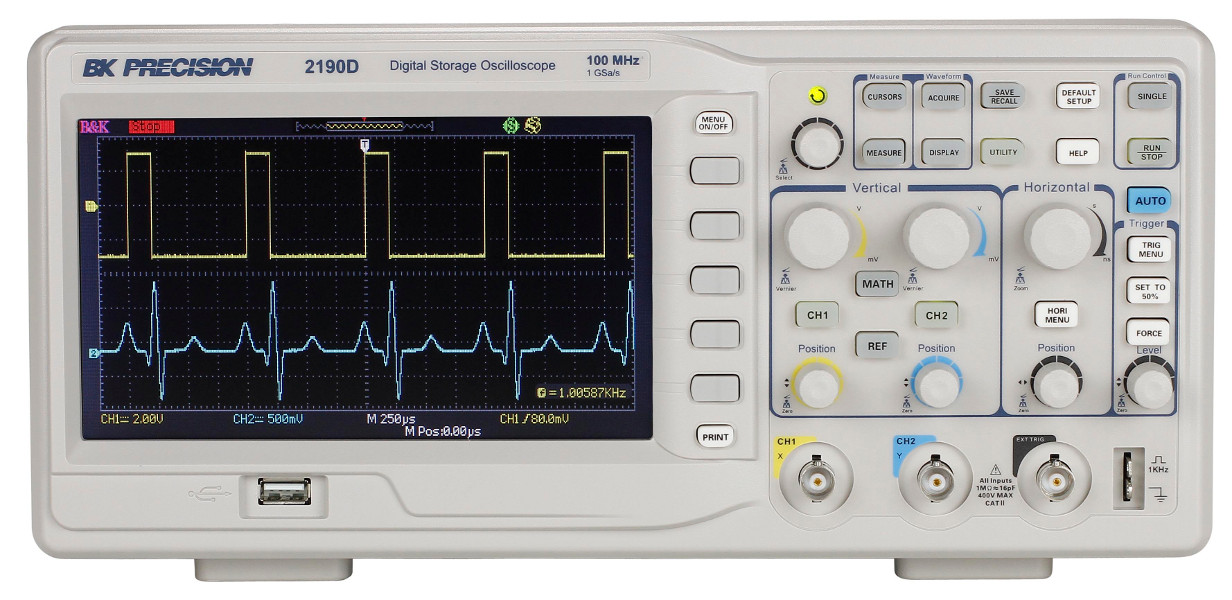

BK Precision 2190D 100 MHz Digital Oscilloscope
|
Item Number: 2190D
Manufacturer: BK Precision
Part Number: 2190D
* Whole number only
|
|
BK Precision 2190D 100 MHz Digital Oscilloscope

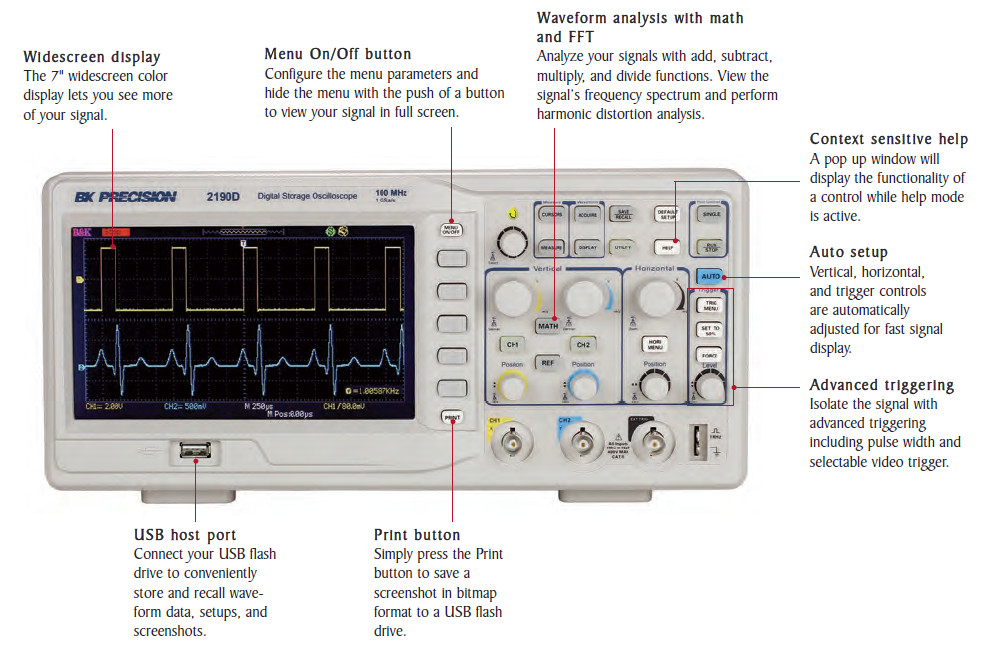

The 2190D is new and is in a class of its own. It has 40,000 points of waveform memory and a 7 inch widescreen TFT color display. It also has pc connectivity where you can download the software for free. This oscilloscope is perfect for applications in instruction, outline and debug, service and repair.
Features
- 100 MHz bandwidth, 1 GSa/s sample rate
- Large, 7” widescreen color display offers a significantly larger viewing area than typical economy oscilloscopes (5.7”)
- 32 automatic measurements

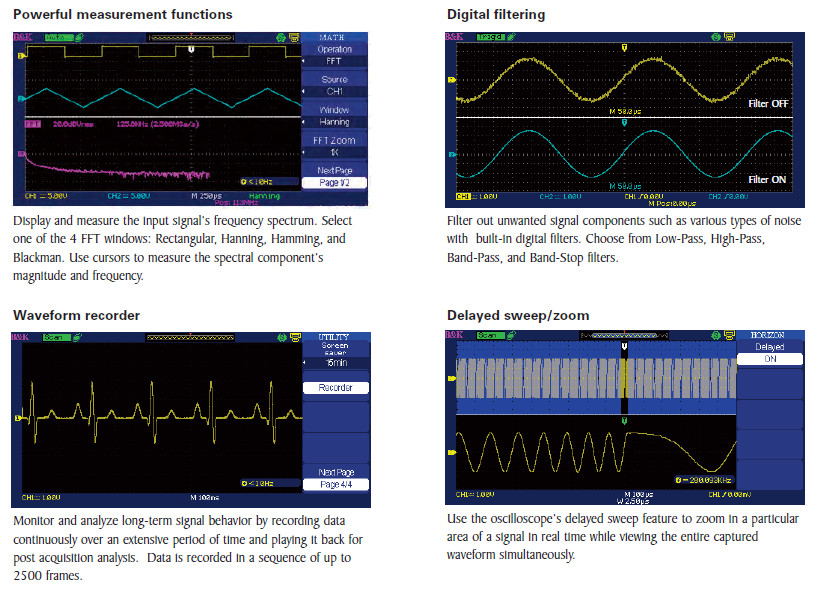

- FFT plus four additional math functions
- Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger

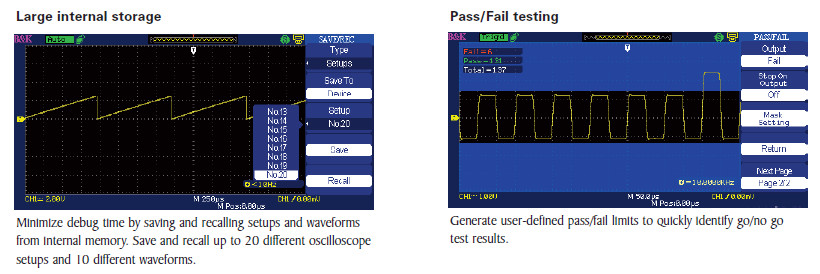

- Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
- 12 different language user interfaces and context sensitive help
- Special EDU mode allows educators to disable Auto set button, Measure menu, and Cursors menu
- PC software that lets you remotely control the oscilloscope and capture, save, and analyze waveform data
- Front panel USB host port for saving and recalling waveform setups, data, and screen shots on a USB flash drive
- USBTMC compliant USB device port supporting SCPI commands for remote PC control
- GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)

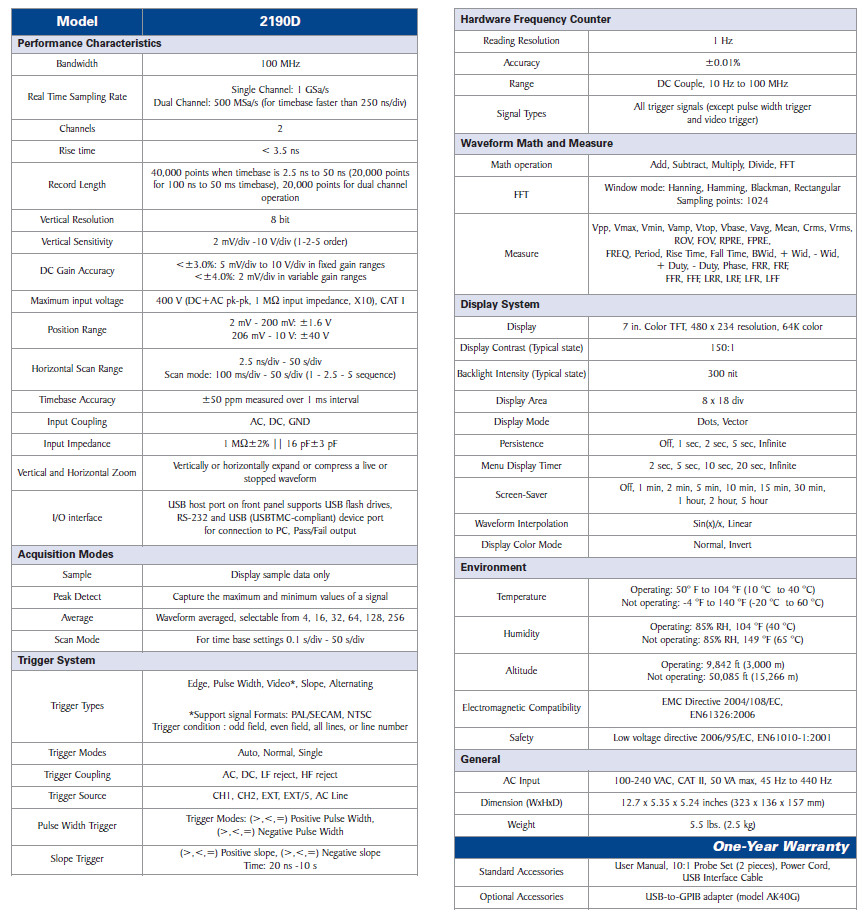

Technical Specifications
|
