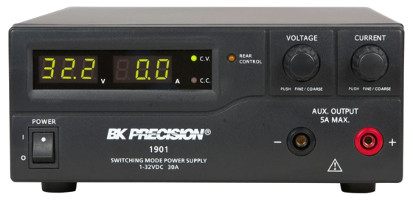

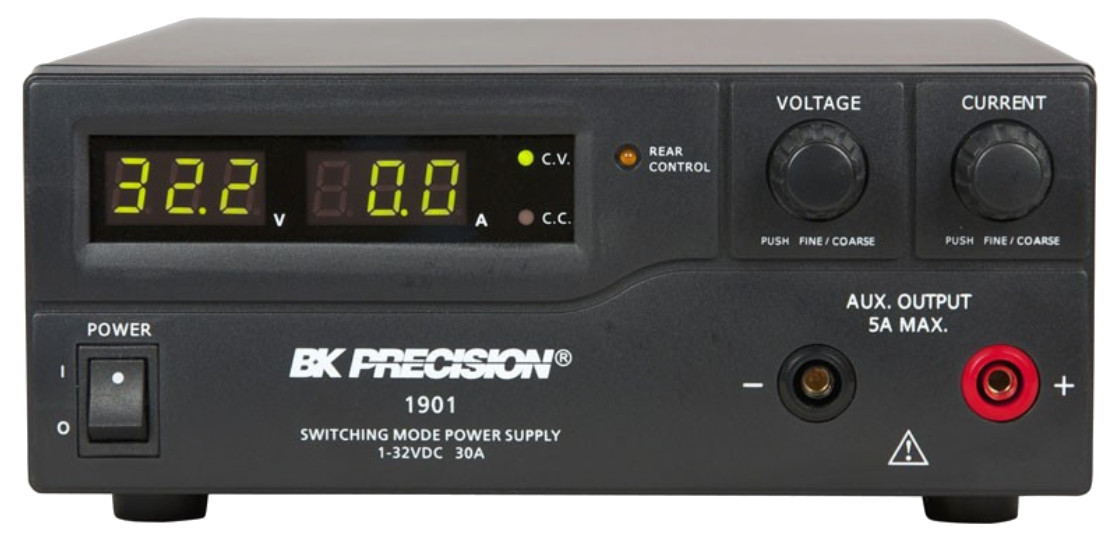

BK Precision 1901 High Power Switching DC Power Supply
|
Item Number: 1901
Manufacturer: BK Precision
Part Number: 1901
* Whole number only
|
|
BK Precision 1901 High Power Switching DC Power Supply
Models 1900, 1901 and 1902 are are laboratory grade switching mode DC power supply with high current output in a small form factor and lightweight package. The supplies provide various configurations of high output voltage or high output current and make setting voltage and current levels fast and precise through its dual action, coarse/fine rotary encoder control. In addition to constant voltage (CV) and constant current (CC) modes, the high efficiency DC power supplies offer a unique solution with its preset and remote control modes. Save up to three different presets of voltage and current values for quick recall. The remote control function allows the output power, voltage, and current to be adjusted without touching the front panel of the power supply. A remote sensing terminal is also available for use to compensate for long output line losses. These features make the 1900 Series suitable for a wide range of applications including production testing, telecommunications, R&D, service, and university labs.
Features
- Automatic CV/CC crossover operation
- Lightweight and compact
- Rotary encoder control for precise voltage and current setting
- 3 user-defined voltage and current presets
- Remote control function
- Remote sensing terminal
- Overvoltage, overtemperature, and overload protection
- Remote Sense (model 1900 only)
Technical Specifications
|
BK Precision 1902 Variable Output Voltage: 1 – 60 V; Variable Output Current: 0 – 15 A
|
BK Precision 1900 Variable Output Voltage: 1 – 16 V; Variable Output Current: 0 – 60 A
|
