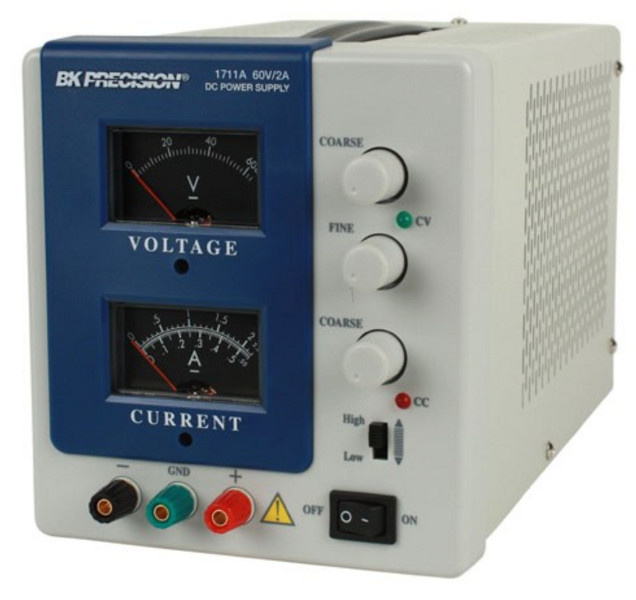

BK Precision 1711A Single Output DC Power Supply
Our Price: Discontinued Replaced by BK 1715A
Item Number: 1711A
Manufacturer: BK Precision
Part Number: 1711A
|
|
BK Precision 1711A Single Output DC Power SupplyFeatures
- Continuously monitor voltage and current output on two analog meters
- Connect two supplies in parallel to double the current output
- Connect two supplies in series to double the voltage output
- Reliable, Durable
- Operate continuously at full load without overheating
- Fully overload protected
- Coarse and fine voltage controls
- Excellent regulation
- Very low ripple
- Constant voltage or constant current operation
- cUL certified

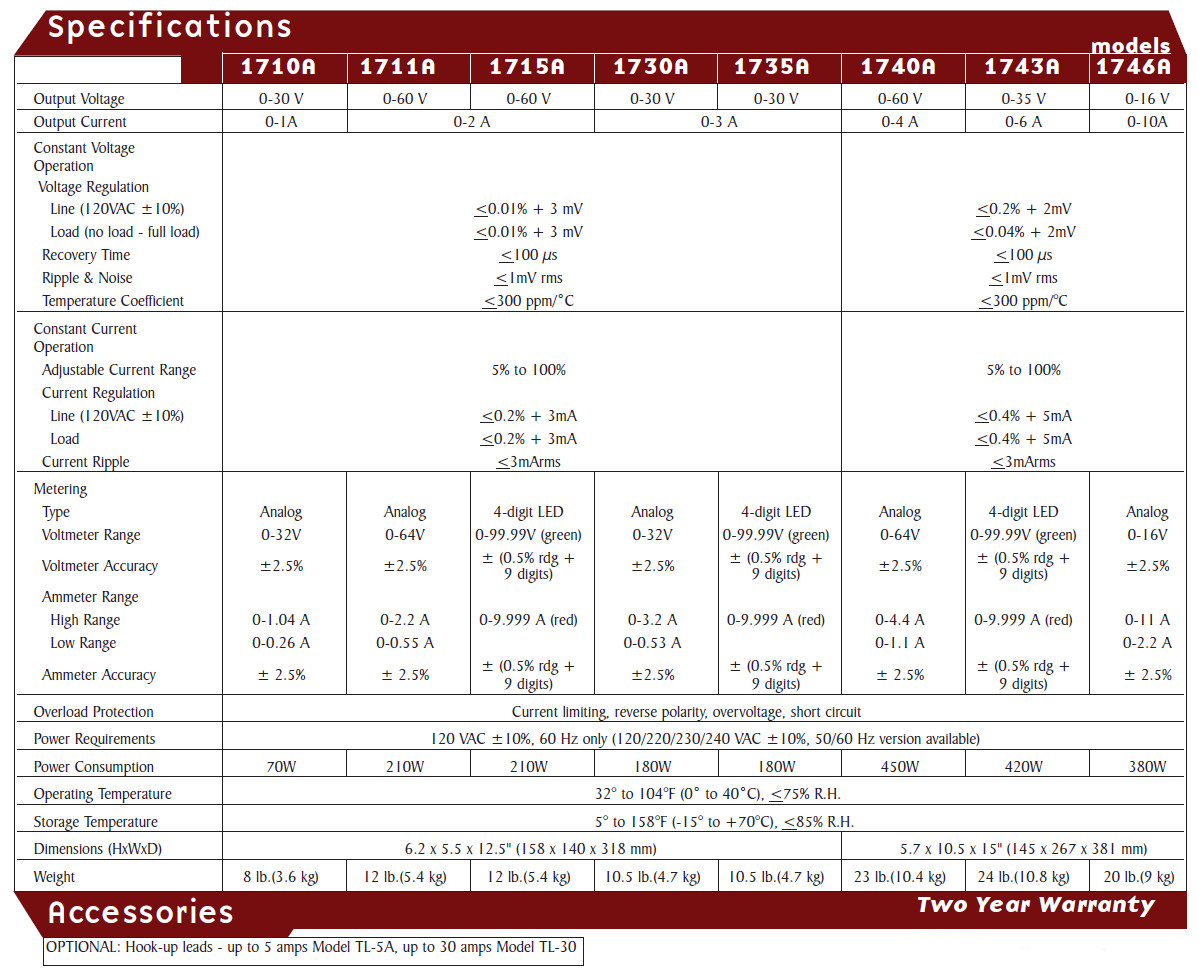

Technical Specifications
|
BK Precision 1710A output voltage is 0-30V, output current is 0-1A. Voltmeter Range: 0-32V; Ammeter High & Low Range: 0-1.04A, 0-0.26A
|
BK Precision 1730A output voltage is 0-30V, output current is 0-3A. Voltmeter Range: 0-32V; Ammeter High & Low Range: 0-3.2A, 0-0.53A
|
BK Precision 1735A output voltage is 0-30V, output current is 0-3A. Voltmeter Range: 0-99.99V (green); Ammeter High & Low Range: 0-9.999A (red)
|
BK Precision 1715A output voltage is 0-60V, output current is 0-2A. Voltmeter Range: 0-99.99V (green); Ammeter High & Low Range: 0-9.999A (red)
|
