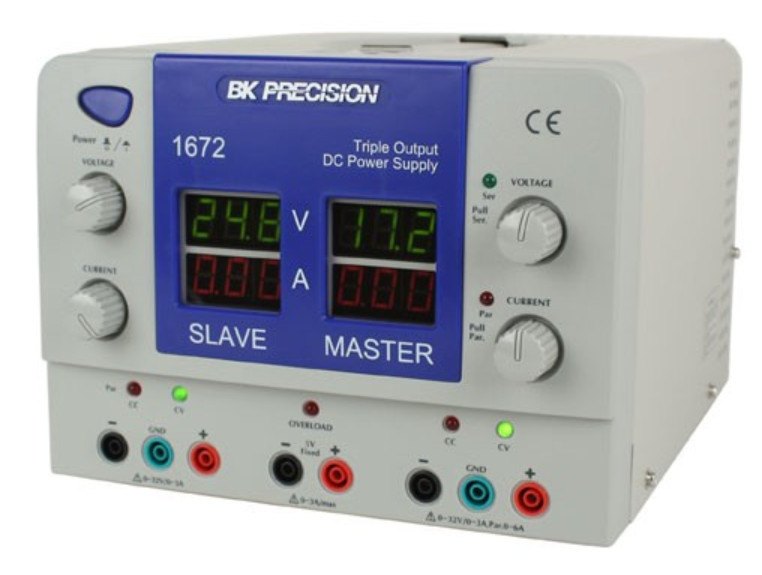

BK Precision 1672 Triple Output DC Power Supply

BK Precision 1672 Triple Output DC Power Supply

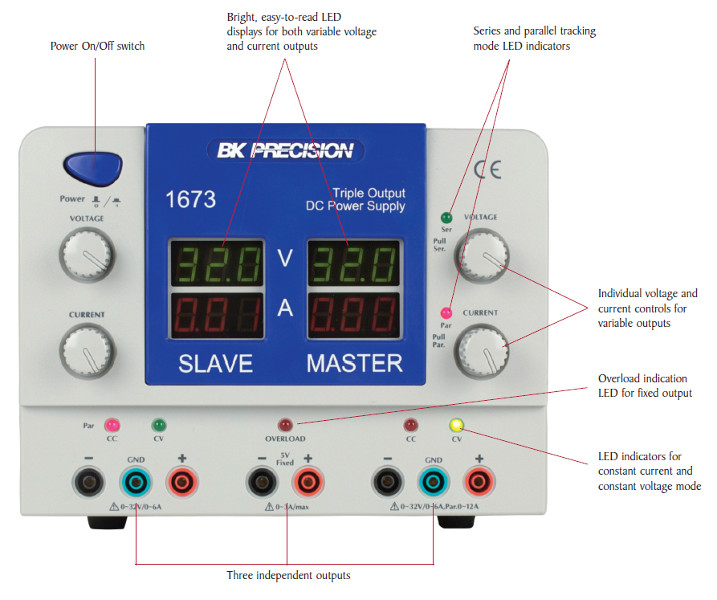

The 1672 and 1673 are quad display triple output DC power supplies that provide two variable outputs and one fixed output. The four displays allow the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, in series tracking, or parallel mode.

Features

Three independent outputs
Independent control knobs for voltage and current settings of variable outputs
CV (constant voltage) and CC (constant current) operation
Separate 3-digit voltage and current displays for variable outputs
LED indication for CV and CC modes
Overload indication LED for fixed output
Series tracking and parallel tracking mode operation
Output terminals are banana style (not binding posts)

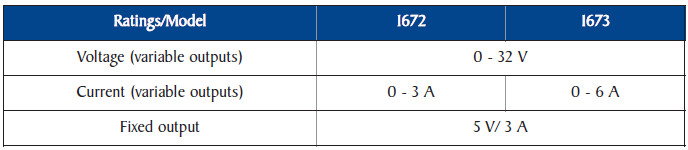

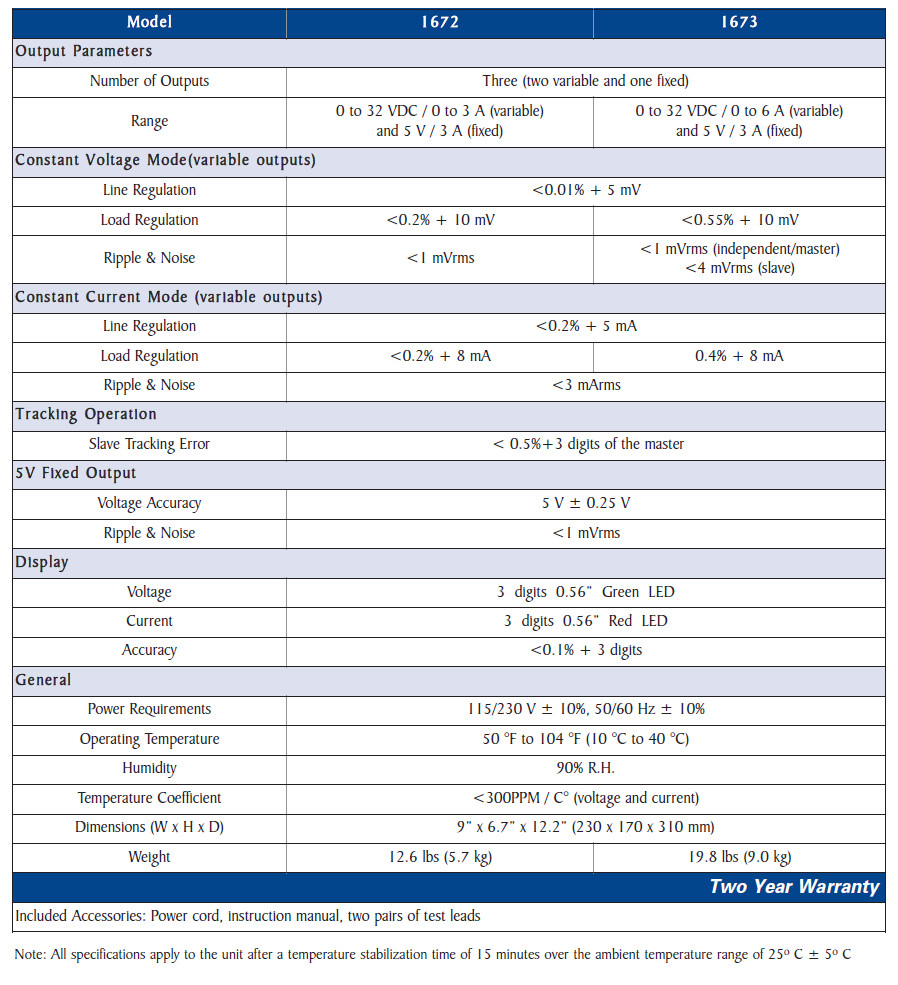

Technical Specifications

BK Precision 1672 Data Sheet
