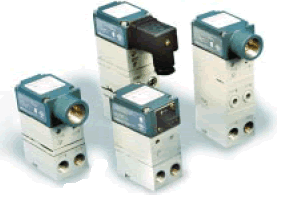

Bellofram Type 1500 I/P & E/P Transducer

Bellofram Type 1500 I/P & E/P Tranducer

     The Bellofram Type 1500 I to P Transducer is an electro-pneumatic device that converts an analog DC signal into a directly proportional output pressure up to 120 PSIG. The unit requires a source of compressed air to operate and a mA or Voltage control input signal. It provides a precise electro-pneumatic control to actuators, valves, positioners, final control elements and is especially designed for high-flow devices with its integral pneumatic volume booster.  The T-1500's compact size and accessibility to ports and calibration adjustments allow the unit to be installed in scompact panels or locations or in a manifold for multi-device control.  The Type 1500 is also available in a zero-based output, giving an even wider range of applications.

    The T-1500's has DIN rail and manifold assemblies available in kits that provide three, five or ten mounting assemblies. The T-1500 can be mounted at any angle but should be recalibrated in its final mounting position before use.  The T-1500 should be mounted vertically in a vibration free location or such that the vibration is isolated to the X and Z axis for maximum reliability. The T-1500 can be pipe, panel, inline,  rail or manifold mounted.

Features:

• Several manifold mounting configurations
• High flow design with built-in volume booster
• Common electrical connections including; Conduit 1⁄2" NPT or BSPT, Terminal Block or Hirschmann® Connector
• All ports on front and back of unit
• Low air consumption
• Easy to access zero and span adjustments
• Economically prices

• Electrical conduit connection meets CE requirements
• The T-1500 can control Valve actuators, Valve positioners, HVAC systems,
  Material handling systems, Paper handling controls, Automation systems, and Liquid or gas processing systems.
• Optional agency approvals such as FM Intrinsically Safe, CSA Approved, CENELEC, CE, NEMA 4X depending on customer requirements and economy.
