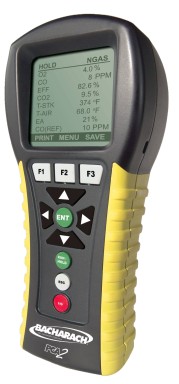

Bacharach PCA2 Portable Combustion Analyzer

The PCA2 is a commercial grade, handheld combustion and emissions analyzer for on-demand or semi-continuous sampling of light industrial, institutional, commercial and residential furnaces, boilers and appliances. The PCA2 is the perfect tool for service technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency, or perform emissions testing in combustion applications.

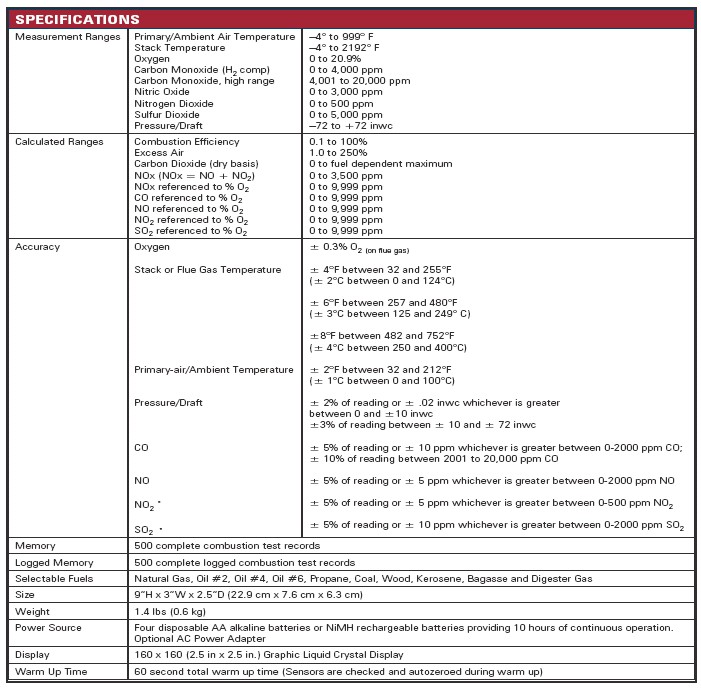

The PCA2 directly measures and displays flue gas Oxygen (O₂), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature and optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO₂) and Sulfur Dioxide (SO₂). Simultaneously, the PCA2 calculates and displays combustion efficiency (EFF), Excess Air (EA), Carbon Dioxide (CO₂), NO_x and Oxygen reference values. The PCA2 performs combustion calculations for ten fuels including, Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas. The large backlit graphic displays shows eight different measurements and calculated values simultaneously, and also has zoom capabilities.

Features:

• Smart -easy acess field replaceable pre calibrated sensors
• Quick and accurate response
• Measures upto 4 Gases Simultaneously: Standard O₂, CO-H₂
• Optional - CO (High PPM), NO, NO₂ & SO₂
• Automatic CO Overrange Protection
• Versatile Power Management, uses disposable, recharegable or AC Adapter
• Large Customizable Graphic Display with Zoom and Back light
• Directly measure and display flue gas oxygen, temperature, draft, CO and NO_x
• Calculates aand displays combustion efficiency, excess air, CO₂ and CO air free
• Store upto 500 snap shot test and 500 logged tests
• Print current or stored time and date stamped test results with printer kit option
• 10 pre-programmed fuel choices with custom fuel capability
• Langauge choices
• Internal diagnostics
• Calibration reminder feature
