Bacharach PCA 3 Portable Combustion Analyzer

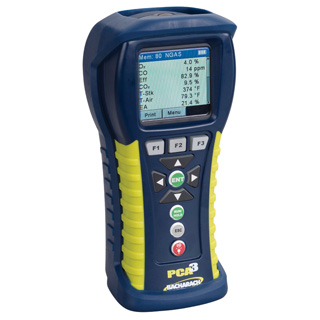

Bacharach PCA 3 Portable Comustion Analyzer

Our Price: $1,850.00
Item Number: PCA 3
Manufacturer: Bacharach
Part Number: PCA 3

Product Options

* denotes required field

Bacharach PCA 3 Model Selection*

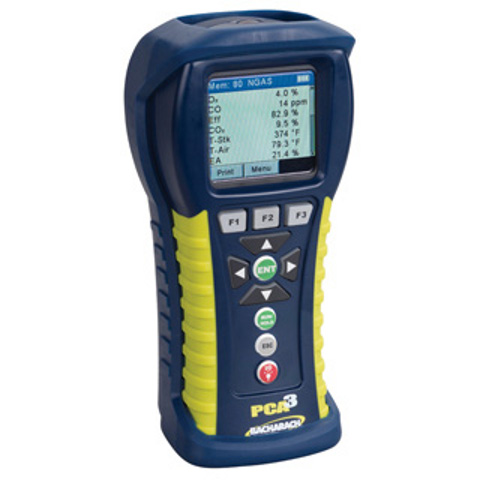

Bacharach PCA-3 Portable Combustion Analyzer


With the Bacharach PCA 3, busy technicians and boiler contractors can rely on the PCA 3 to help ensure safe operating conditions, determine combustion efficiency and perform emissions testing.  This lightweight handheld instrument is the industry’s first advanced portable combustion analyzer with a full color graphic display for superior visibility and user-friendly interface.  Super bright backlighting, zoom display feature, dimming mode function and the most sensor configuration in its class provides the user with best-in-class instrumentation.  In addition to the included Oxygen (O2) and Carbon Monoxide (CO) sensors, the PCA®3 can be ordered with CO (high), Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2) sensors or the sensors can be added in the field without down time, using the B-Smart® pre-calibrated sensor options.

PCA®3 is designed for on-demand or semi-continuous sampling of light industrial, institutional, commercial and residential furnaces, boilers and appliances.  With sturdy metal gas and draft connectors and rugged construction plus simple operation and maintenance the PCA®3 is the new workhorse of the industry.

Bacharach's unique B-Smart® Sensor Exchange Program will deliver new B-Smart® Sensors right to the user. Just a simple "pop out and pop in" replacement of the sensor permits self calibration with no gas or guess work required! Providing the quickest and easiest calibration options to date, the B-Smart® Sensors assures accurate performance with no downtime.


Features & Benefits

  • Analyzer Functionality
    • Directly measures and displays Flue Gas Oxygen (O2), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature
    • Optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2)
    • Calculates and displays Combustion Efficiency (EFF), Excess Air (EA), Carbon Dioxide (CO2), NOx and Oxygen reference values
    • Ten selectable fuels plus the ability to custom-load fuels
    • Stores 1,000 tests (500 in memory and 500 in logged memory)

  • Smart Sensors
    • Instrument includes a pre-calibrated Oxygen (O2) sensor and a pre-calibrated B-Smart® Carbon Monoxide (CO) sensor
    • Unique B-Smart® sensor technology saves downtime and calibration costs
    • Best-in-Class sensor configuration flexibility allows purchased configurations or simple upgrade in the field
    • Sensor options include pre-calibrated B-Smart® NO, NO2, SO2 and CO high sensors

  • Graphic Display
    • 320 x 240 pixel full color graphic display for superior visibility
    • Super-bright backlighting and zoom capability to ensure effortless readability in any low light boiler and furnace room situations
    • Easily change language parameters to display in formation in English, French or Spanish
    • Dimming mode function helps extend battery life

  • Rugged Design and Construction
    • Sturdy metal gas and draft connectors for added durability in the field
    • Tough ABS housing with rugged rubberized over-molding and protective boot with magnet

PCA® 3 Reporting Packages:

  • kit2 Gases (O2, CO) Part No. 0024-8447
  • 3 Gases (O2, CO, NO) Part No. 0024-8448
  • 3 Gases (O2, CO, CO high) Part No. 0024-8449
  • 3 Gases (O2, CO, SO2) Part No. 0024-8450
  • 4 Gases (O2, CO, NO, NO2) Part No. 0024-8451
  • 4 Gases (O2, CO, NO, SO2) Part No. 0024-8452
  • 4 Gases (O2, CO, NO, CO high) Part No. 0024-8453

    All reporting packages include printer


Specifications:

Measurement Ranges
North American Version
Primary/Ambient Air Temperature
-4° to 999°F
Stack Temperature
-4° to 2192°F
Oxygen
0 to 20.9%
Carbon Monoxide (H2 Compensated)
0 to 4,000 ppm
Carbon Monoxide, (High Range)
4,001 to 20,000 ppm
Nitric Oxide
0 to 3,000 ppm
Nitrogen Dioxide
0 to 500 ppm
Sulfur Dioxide
0 to 5,000 ppm
Pressure/Draft
-72 to +72 inwc
Calculated Ranges
Combustion Efficiency
0.1 to 100%
Excess Air
1.0 to 250%
Carbon Dioxide (Dry Basis)
0 to Fuel Dependent Maximum
NOx (NO + NO2)
0 to 3,500 ppm
NOx referenced to % O2
0 to 9,999 ppm
CO referenced to % O2
0 to 9,999 ppm
NO referenced to % O2
0 to 9,999 ppm
NO2 referenced to % O2
0 to 9,999 ppm
SO2 referenced to % O2
0 to 9,999 ppm
Accuracy
Oxygen
± 0.3% O2 (Flue Gas)
Stack or Flue Gas Temperature
± 4°F between 32 and 255°F
(± 2°C between 0 and 124°C)
± 6°F between 256 and 480°F
(± 3°C between 125 and 249°C)
± 8°F between 481 and 752°F
(± 4°C between 250 and 400°C)
Primary-air/Ambient Temperature
± 2°F between 32 and 212°F
(± 1°C between 0 and 100°C)
Pressure/Draft
± 2% Reading or 0.02 inwc -1 to 10 inwc
± 3% of Reading between ± -40 and ± 40 inwc
CO
± 5% of Reading or ± 10 ppm in the range of 0-2000 ppm CO
± 10% of Reading between 2001 to 4,000 ppm
NO
± 5% of Reading or ± 5 ppm whichever is greater between 0 to 2000 ppm NO
NO2
± 5% of Reading or ± 5 ppm whichever is greater between 0-500 ppm NO2
SO2
± 5% of Reading or ± 10 ppm whichever is greater between 0-2000 ppm SO2


Specifications: (continued)

Memory
500 Complete Combustion Test Records
Logged Memory
500 Complete Logged Combustion Test Records
Selectable Fuels
Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas
Size
9"H x 3"W x 2.5" (22.9 cm x 7.6 cm x 6.3 cm)
Weight
1.4 lbs (0.6 kg)
Power Source
Four Disposable AA Alkaline Batteries. Optional Universal AC Adapter (100 to 240 Volts at 47 to 63 Hz)
Display
Full Color Graphic Display (320 x 240 pixels)
Warm Up Time
60 Second Total Warm Up Time (sensors are checked and autozeroed during warm up)


Ordering Information

Model Number Part Number Sensor
Sensor
 Sensor Sensor Printer
PCA®3 225 0024-8440 O2 CO


PCA®3 235 0024-8441 O2 CO NO

PCA®3 245 0024-8442 O2 CO CO (high)

PCA®3 255 0024-8443 O2 CO SO2

PCA®3 265 0024-8444 O2 CO NO NO2
PCA®3 275 0024-8445 O2 CO NO SO2
PCA®3 285 0024-8846 O2 CO NO CO (high)
PCA®3 225 Kit 0024-8447 O2 CO

X
PCA®3 235 Kit 0024-8448 O2 CO NO
X
PCA®3 245 Kit 0024-8449 O2 CO CO (high)
X
PCA®3 255 Kit 0024-8450 O2 CO SO2
X
PCA®3 265 Kit 0024-8451 O2 CO NO NO2 X
PCA®3 275 Kit 0024-8452 O2 CO NO SO2 X
PCA®3 285 Kit 0024-8453 O2 CO NO CO (high) X

Instrument Comes Complete With: Hard Carry Case, 12" Probe and Hose Assembly, Factory Calibrated and Installed Sensors, Protective Boot w/Magnet, Replacement Filter Element (pkg. of 3), Instruction Manual, 4 'AA' Batteries, USB Cable, Fyrite® User Software and a 2-Year Warranty.

All instruments can be upgraded to include combinations of CO(high), NO, NO2 and SO2.
