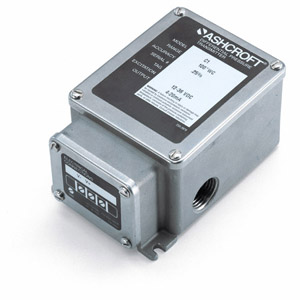

Ashcroft IXLdp Industrial Ultra-Low Variable Capacitance Pressure Transducer/Transmitter
The Ashcroft® Industrial IXLdp was designed for the measurement and control of very low pressure and flow in industrial and process plant environments. The Industrial IXLdp transmitter features a rugged NEMA 4X enclosure, built-in electrical terminal box isolated from the electronics and threaded process connections.
The Ashcroft IXLdp transmitter utilizes a state-of-the-art variable capacitance sensor with a glass-clad silicon chip. The Si-Glas technology combines the inherent high sensitivity of a variable capacitance transducer with the repeatability of a micro-machined, single-crystal silicon diaphragm.
The Si-Glas sensor is composed of sputtered metals and glass molecularly bonded to silicon. There are no epoxies or other organics in the sensor to contribute to drift or mechanical degradation over time.
Features
- Certified 0.25% and 0.5% accuracy
- 0.1"- 200" - H2O pressure ranges
- High overpressure protection
- FM approved for hazardous locations
- NEMA 4X metal construction
- Six types of output signals available
- Easy installation
- On-board voltage regulation allows use of lower cost, non-precise, unregulated power supply
Applications
- HVAC
- Fume Hood Control
- Lab/clean Room Pressurization
- Laminar Flow
- Furnace/Stack Draft
- Leak Detection
- Medical
- Fan Tracking
- Filter Monitoring
- Glovebox
- Velocity Measurements

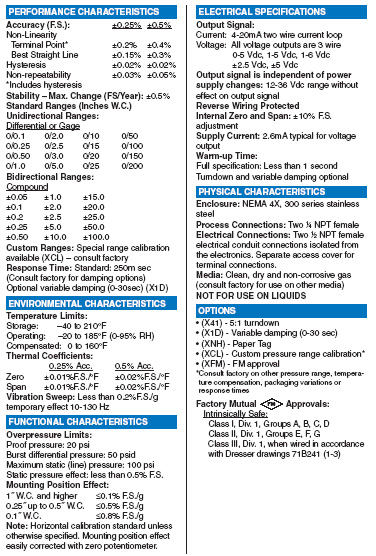

Technical Specifications
  |
