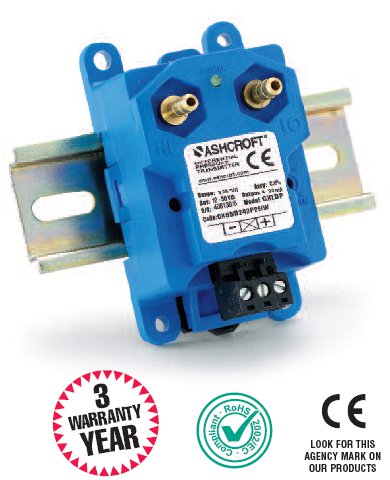

Ashcroft CXLdp Low Differential Pressure Transmitter

Ashcroft CXLdp Low Pressure Differential Transducer/Transmitter

     A small housing and multiple mounting options allow the CXLdp to be easily mounted on a DIN rail, wall or in-plenum. With the convenient "Euro" style electrical connector, the CXLdp can be installed into a panel without power interruption.  The CXLdp is available in ranges from 0/0.1 through 0/25 In H2O and in accuracies of +/-0.8% and +/-0.4% F.S.. Other standard features include high over-pressure capability, LED status light and a CE Heavy Industrial EMI/RFI immunity rating.  With an attractive price, the CXLdp is the ideal pressure transmitter for most building control system applications.



Features

• 0.4% or 0.8% F.S. accuracy, NIST Traceable
• Rugged ABS, UL 94-5VA enclosure

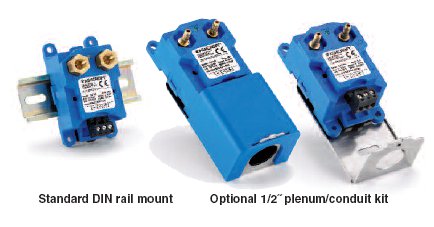

• DIN rail, panel or duct mounting
• Ranges from 0.1 In H2O, with overpressure capability to 15 psi
• Transmitter function status light
• Detachable “Euro” style terminal block decreases mis-wiring and reduces installation time
• LED power status indicator to assist in trouble shooting or quickly locating the instrument on a duct.
• 19 standard pressure ranges all capable of withstanding 15 psi without damage or calibration change.

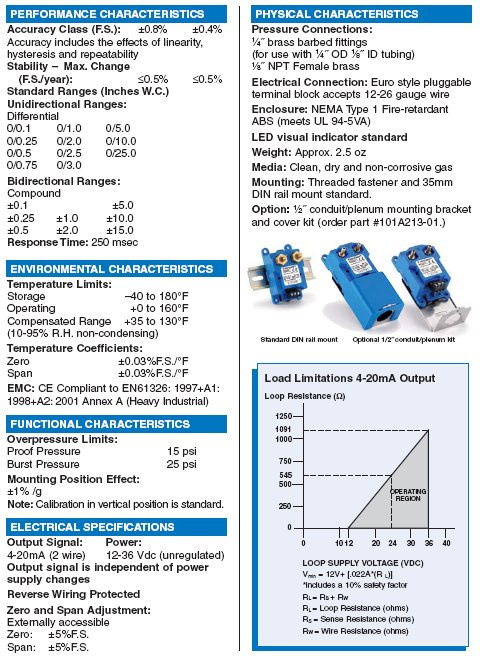

Technical Specifications
